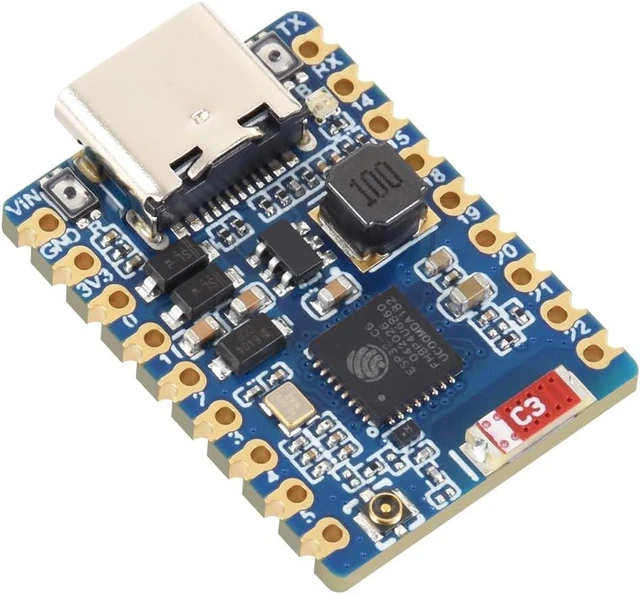

Waveshare ESP32-C6 Mini Wi-Fi 6 Development Board, Without Headers | 5 ~ 36V Wide Voltage Power Supply Support BLE, IEEE 802.15.4 (Zigbee 3.0 and Thread) compatible with the ESP32-C6-Zero Pins
- Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz. Built-in 320KB ROM, 512KB H-P Static RAM, 16KB LP Static RAM and 8MB Flash memory
Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Onboard ceramic antenna (default) and IPEX 4 antenna socket, allowing antenna selection via GPIO7. Supports 5 ~ 36V wide voltage power supply for industrial applications
Castellated module, allows soldering directly to carrier boards. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios

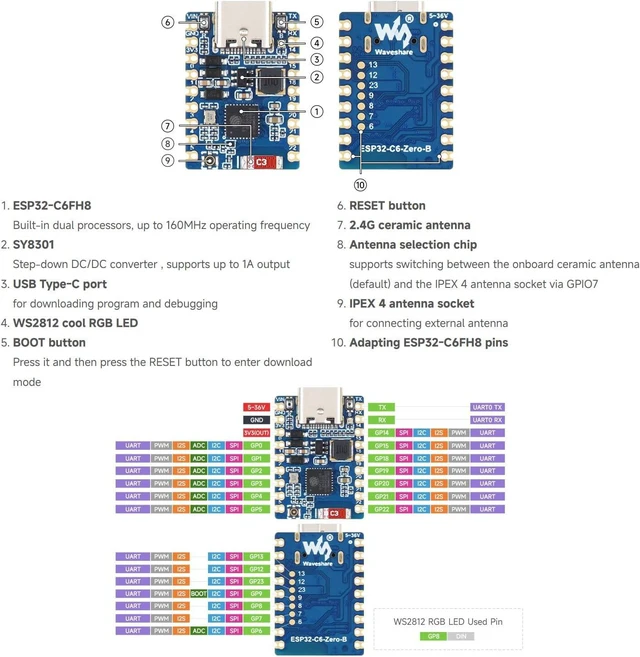

Onboard USB Type-C port, adapting 22 × GPIO pins for flexible peripheral function configuration
Integrated Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
Onboard ceramic antenna (default) and IPEX 4 antenna socket, allowing antenna selection via GPIO7. Supports 5 ~ 36V wide voltage power supply for industrial applications
Castellated module, allows soldering directly to carrier boards. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Onboard USB Type-C port, adapting 22 × GPIO pins for flexible peripheral function configuration
