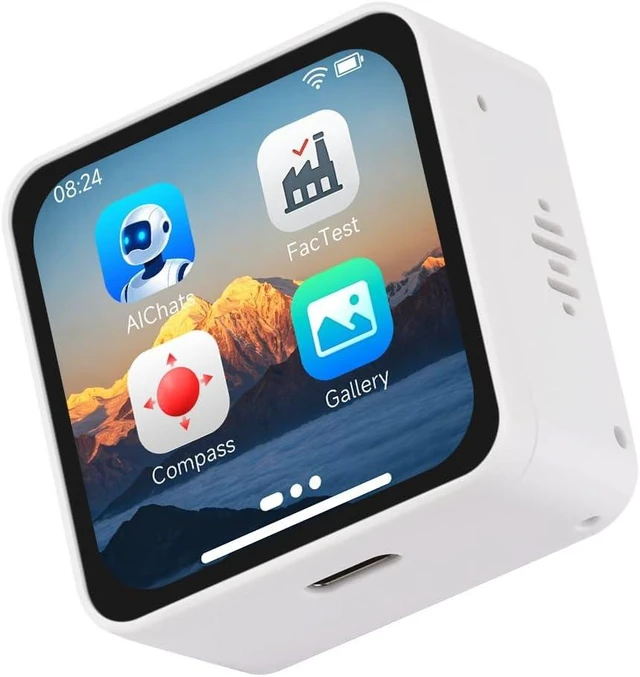

Waveshare ESP32-C6 2.16inch AMOLED Display Touch Screen Development Board, 480 × 480 Resolution, 16.7M Color, Supports Dual Microphones, Wi-Fi 6 and BLE 5, No BAT

Equipped with high-performance ESP32-C6 32-bit RISC-V processor, up to 160MHz main frequency. Supports Wi-Fi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance, onboard antenna
Built-in 512KB H-P Static RAM, 16KB LP Static RAM, 320KB ROM, and external 16MB Flash memory. Type-C port, improving device compatibility, easier to use. Onboard 2.16inch AMOLED capacitive touch display for clear color picture display, 480 × 480 resolution, 16.7M color
Built-in CO5300 display driver and CST9220 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip, powered by Lithium Batt through AXP2101 chip for uninterrupted power supply. Onboard KEY and BOOT programmable buttons for easy custom function development. Onboard 3.7V MX1.25 Lithium Batt recharge/discharge header
Adapting 1 × I2C, 1 × UART and 1 × USB pads for external devices connection and debugging. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, Batt charging, Batt management, and Batt life optimization, etc. Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
