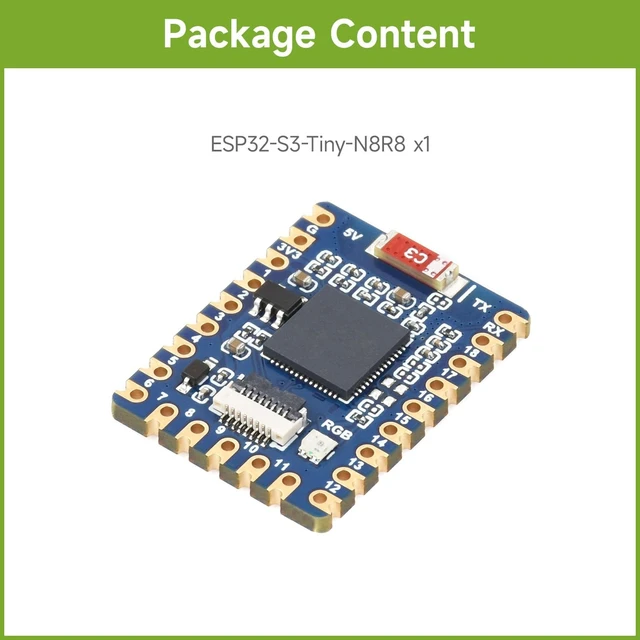

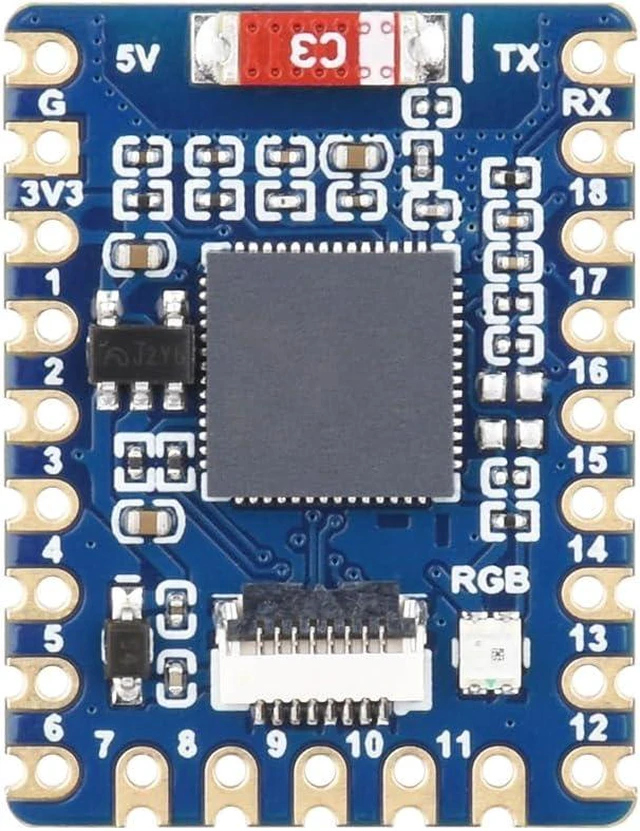

Waveshare ESP32-S3 Mini Development Board, Based on ESP32-S3FH4R2/ESP32-S3-PICO-1-N8R8 Dual-Core Processor, 8MB Flash and 8MB PSRAM, Development Board Only
- Built in 512KB of Static RAM and 384KB ROM, 8MB Flash memory with 8MB PSRAM
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Adopts ESP32-S3FH4R2/ESP32-S3-PICO-1-N8R8 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Built in 512KB of Static RAM and 384KB ROM, 8MB Flash memory with 8MB PSRAM
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board 34 × multi-function GPIO pins
Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Built in 512KB of Static RAM and 384KB ROM, 8MB Flash memory with 8MB PSRAM
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board 34 × multi-function GPIO pins
Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
