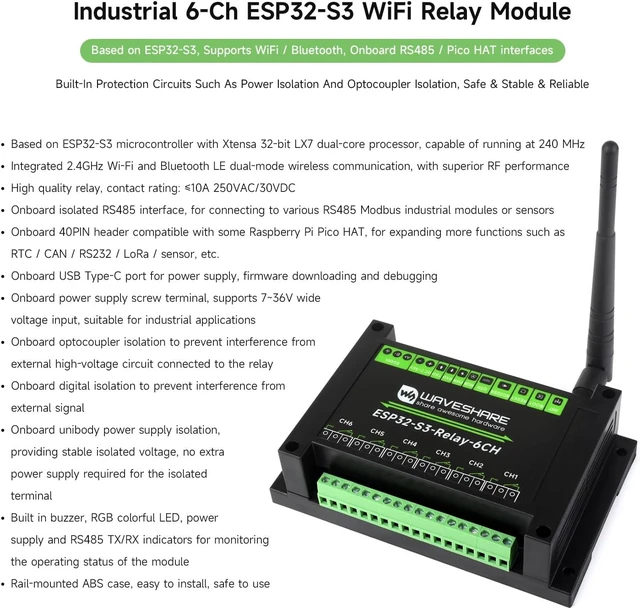

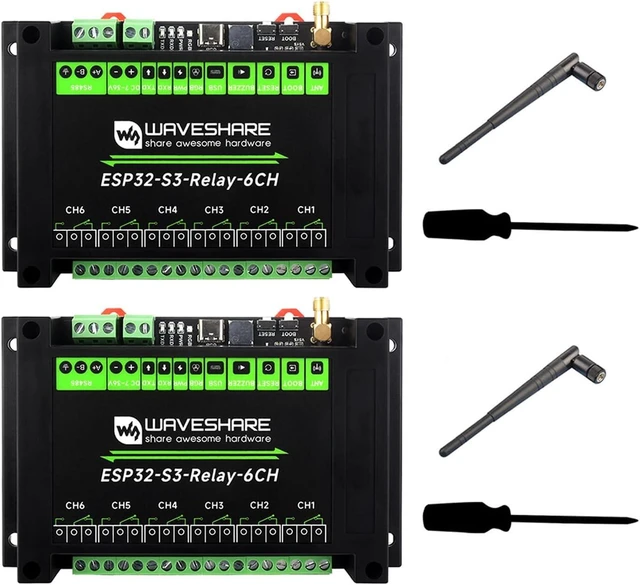

Waveshare 2PCS Industrial 6-Channel ESP32-S3 Wi-Fi Relay Module, Supports Wi-Fi/BLE/RS485 Control, Onboard RS485 / Pico HAT Interfaces, with Multiple Isolation Protection Circuits
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. High quality relay, contact rating: 10A 250VAC/30VDC
+
+
Overview

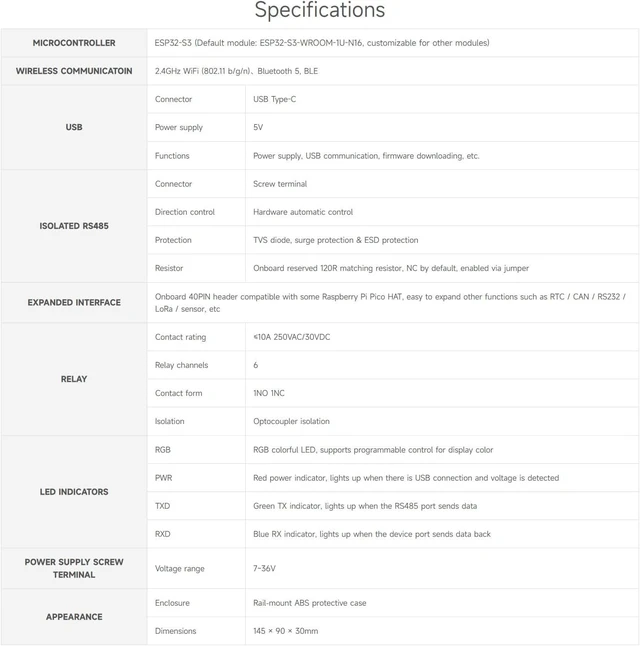

Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz

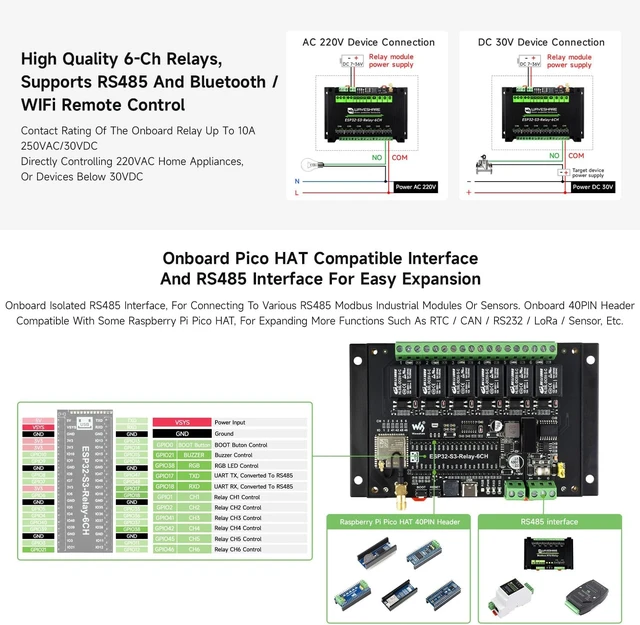

Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. High quality relay, contact rating: 10A 250VAC/30VDC
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. High quality relay, contact rating: 10A 250VAC/30VDC
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.
Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
