Waveshare RP2350 Development Board with 3.49inch IPS Capacitive Touch Display, 172 × 640, Dual-core & Dual-Architecture Design, Built-in AXS15231B LCD & Touch Controller, Lithium Batt Included

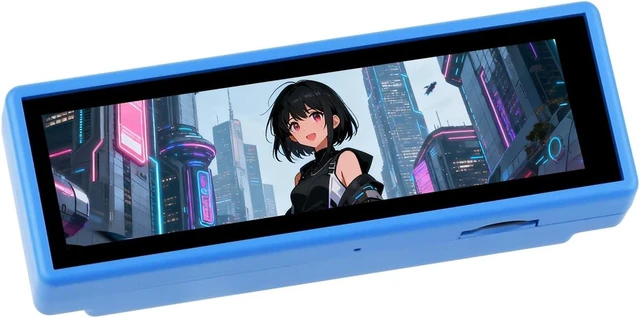

- Integrated 3.49 Capacitive Touch IPS Display: Comes with a built-in 3.49-inch IPS touchscreen (172×640, 16.7M colors), driven by the AXS15231B controller (QSPI/I2C interfaces) for vibrant, responsive UIs without external wiring.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
High-Performance Dual-Core Microcontroller: Powered by the Raspberry Pi-designed RP2350B chip, featuring dual-core flexibility (ARM Cortex-M33 orHazard3 RISC-V) with clock speeds up to 150 MHz, 520KB SRAM, and 16MB onboard Flash for demanding applications.

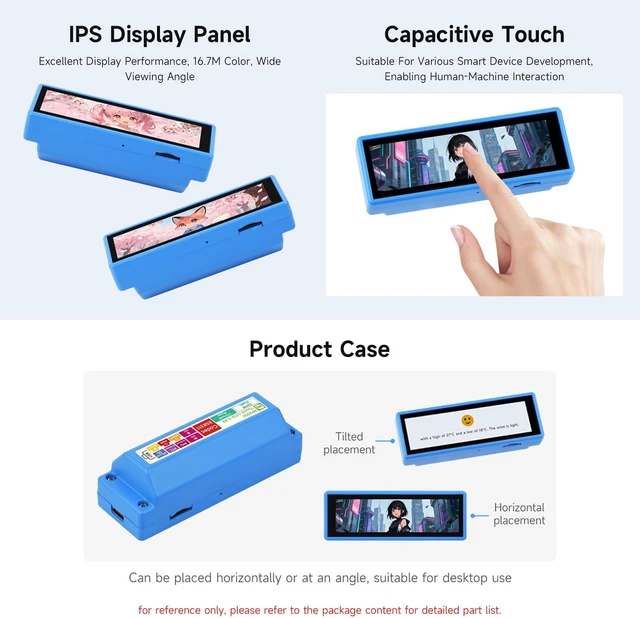

Integrated 3.49 Capacitive Touch IPS Display: Comes with a built-in 3.49-inch IPS touchscreen (172×640, 16.7M colors), driven by the AXS15231B controller (QSPI/I2C interfaces) for vibrant, responsive UIs without external wiring.

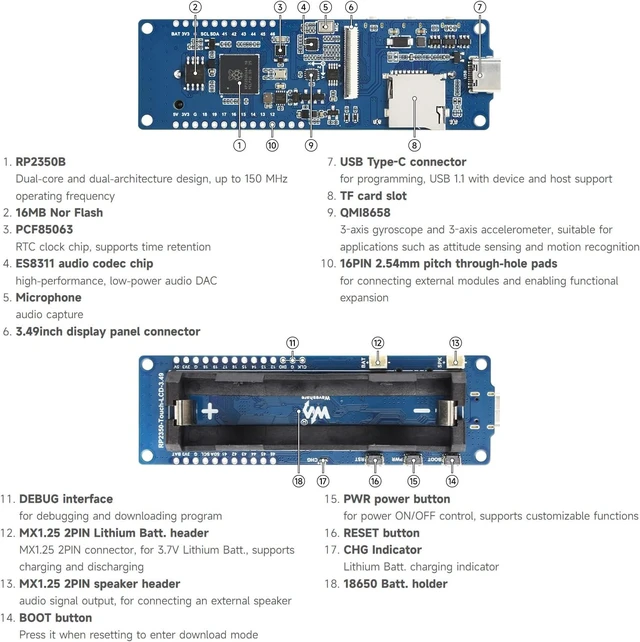

All-in-One Peripheral Hub: Includes 6-axis IMU (accelerometer + gyroscope), RTC chip, low-power audio codec, TF card slot, and Li-ion battery support (MX1.25 + 18650 holder)eliminating the need for external modules in prototyping.
Versatile Connectivity & Power: Features USB Type-C (device/host mode), 16 GPIO pins, 2×SPI/2×I2C/2×UART, 6×12-bit ADC, 16×PWM, and 12×PIO state machines for custom peripherals. Supports drag-and-drop programming via USB mass storage.
Energy-Efficient & Developer-Friendly: Offers low-power sleep/dormant modes, an accurate onboard clock, temperature sensor, and accelerated floating-point libraries. Designed for rapid development with plug-and-play simplicity
Integrated 3.49 Capacitive Touch IPS Display: Comes with a built-in 3.49-inch IPS touchscreen (172×640, 16.7M colors), driven by the AXS15231B controller (QSPI/I2C interfaces) for vibrant, responsive UIs without external wiring.
All-in-One Peripheral Hub: Includes 6-axis IMU (accelerometer + gyroscope), RTC chip, low-power audio codec, TF card slot, and Li-ion battery support (MX1.25 + 18650 holder)eliminating the need for external modules in prototyping.
Versatile Connectivity & Power: Features USB Type-C (device/host mode), 16 GPIO pins, 2×SPI/2×I2C/2×UART, 6×12-bit ADC, 16×PWM, and 12×PIO state machines for custom peripherals. Supports drag-and-drop programming via USB mass storage.
Energy-Efficient & Developer-Friendly: Offers low-power sleep/dormant modes, an accurate onboard clock, temperature sensor, and accelerated floating-point libraries. Designed for rapid development with plug-and-play simplicity
