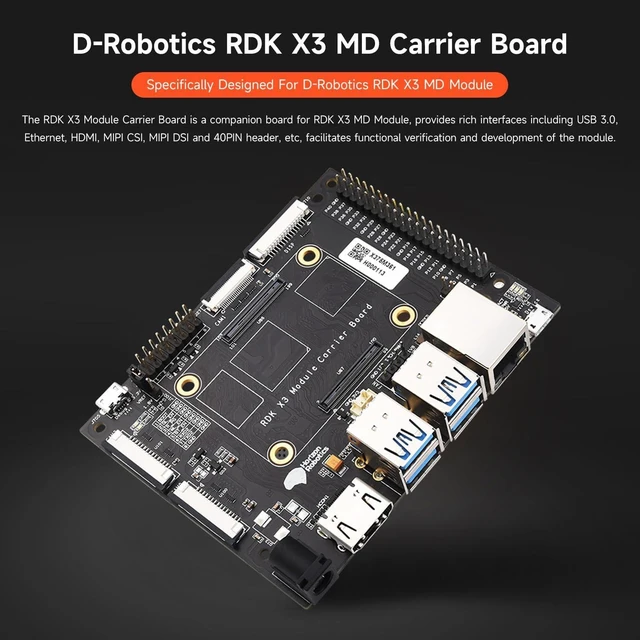

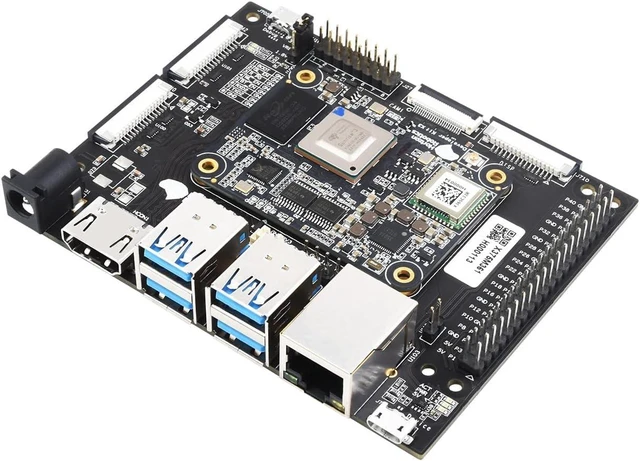

Waveshare Official D-Robotics RDK X3 MD Carrier Board, Compatible with All Variants of RDK X3 MD Module, Offering Rich Interfaces Including USB 3.0, Ethernet, HDMI, MIPI CSI, MIPI DSI,40-PIN Header

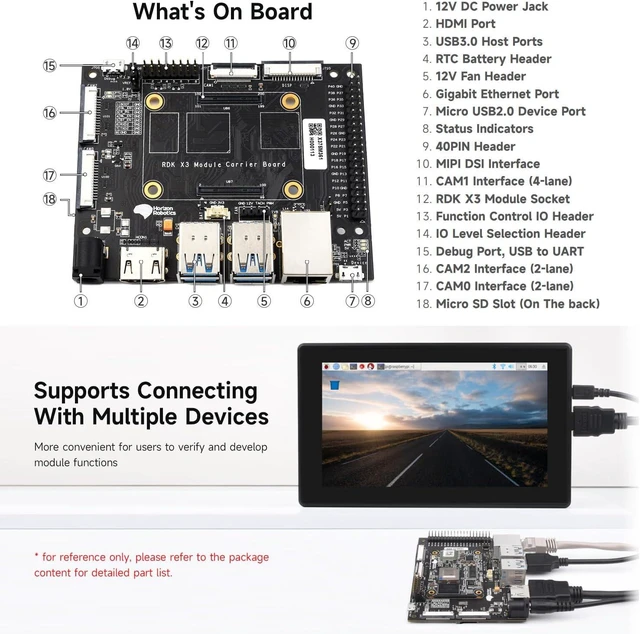

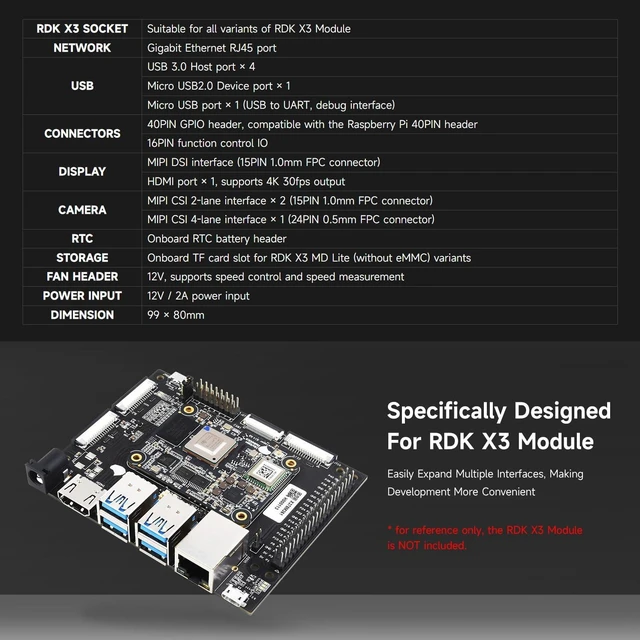

Broad Compatibility and Connectivity: The RDK X3 Socket is designed to support all variants of the RDK X3 Module. It includes a Giga-bit Ethernet RJ45 port for high-speed network connectivity, four USB 3.0 Host ports, a Micro USB 2.0 Device port, and a Micro USB port for USB to UART debugging.
Expandability with I/O and Connectors: The socket features a 40-pin GPIO header, compatible with the Raspberry Pi 40-pin header, and a 16-pin function control I/O header for custom connections and functionality.
High-Resolution Display and Camera Support: It provides a 15-pin MIPI DSI interface for connecting displays and supports an HDMI port for 4K 30fps video output. For camera integration, it offers two MIPI CSI 2-lane interfaces and one MIPI CSI 4-lane interface, enabling advanced image capture.
Storage and Real-Time Clock: The onboard TF card slot supports the RDK X3 MD Lite variant (without eMMC), offering expandable storage. Additionally, the socket includes an onboard RTC battery header for reliable timekeeping.
Power Management and Cooling: The socket is powered by a 12V / 2A input and includes a 12V fan header that supports both speed control and speed measurement, ensuring efficient thermal management for demanding applications.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
