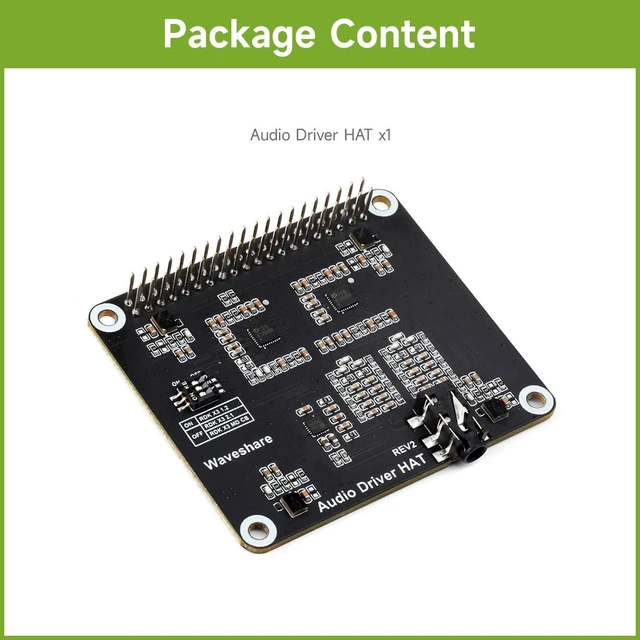

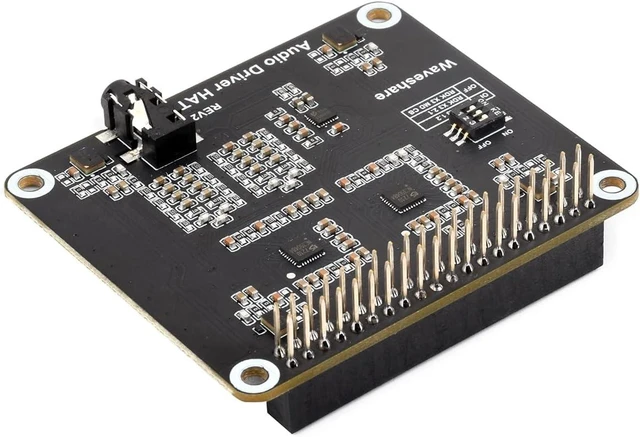

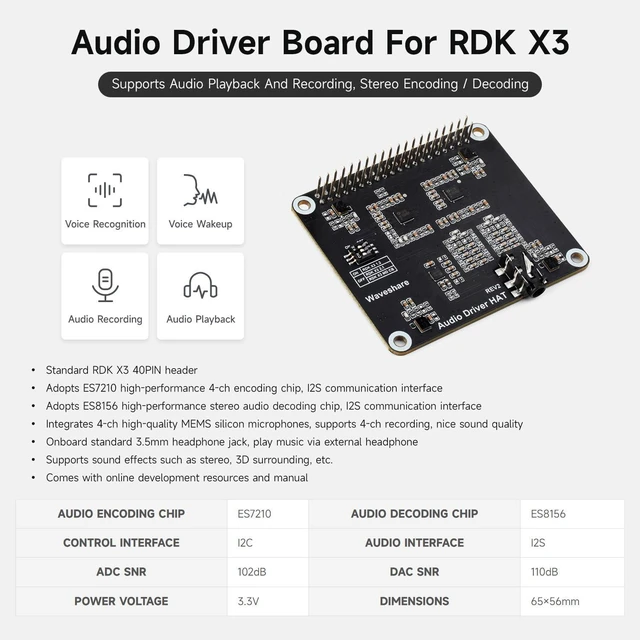

Waveshare Audio Driver Board for RDK X3 Development Board, Supports Audio Playback and Recording, Stereo Encoding/Decoding, Onboard Headphone Jack and 4-Ch Microphones
- Utilizes the ES7210 high-performance 4-channel encoding chip with I2S communication interface.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

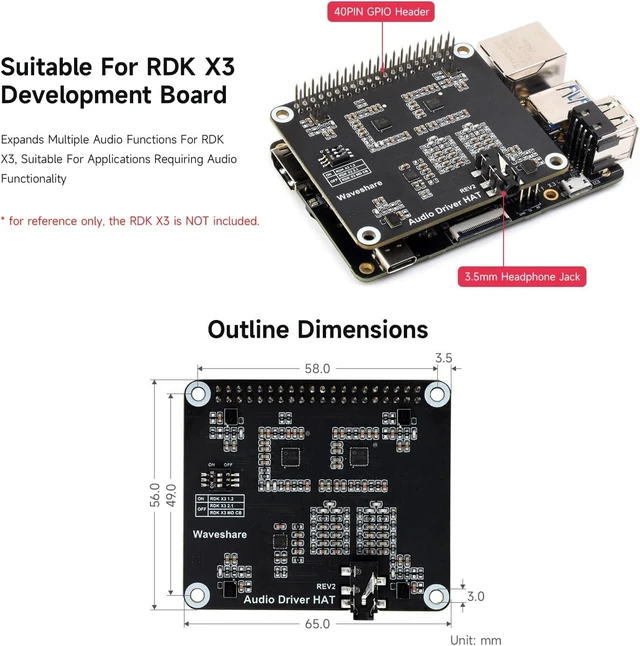

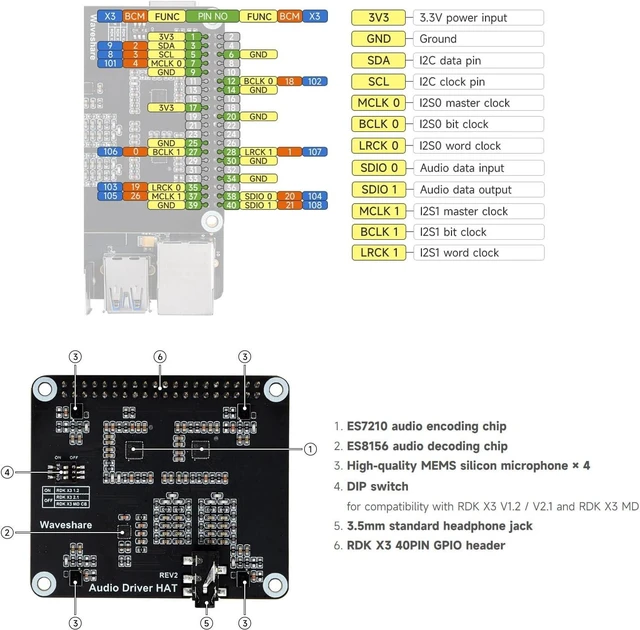

Standard RDK X3 40PIN header for versatile connectivity.
Utilizes the ES7210 high-performance 4-channel encoding chip with I2S communication interface.
Equipped with the ES8156 high-performance stereo audio decoding chip, also featuring I2S communication interface.
Integrates four high-quality MEMS silicon microphones, supporting 4-channel recording with excellent sound quality.
Includes an onboard standard 3.5mm headphone jack, enabling music playback via external headphones, with support for sound effects such as stereo and 3D surround sound.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
Utilizes the ES7210 high-performance 4-channel encoding chip with I2S communication interface.
Equipped with the ES8156 high-performance stereo audio decoding chip, also featuring I2S communication interface.
Integrates four high-quality MEMS silicon microphones, supporting 4-channel recording with excellent sound quality.
Includes an onboard standard 3.5mm headphone jack, enabling music playback via external headphones, with support for sound effects such as stereo and 3D surround sound.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
