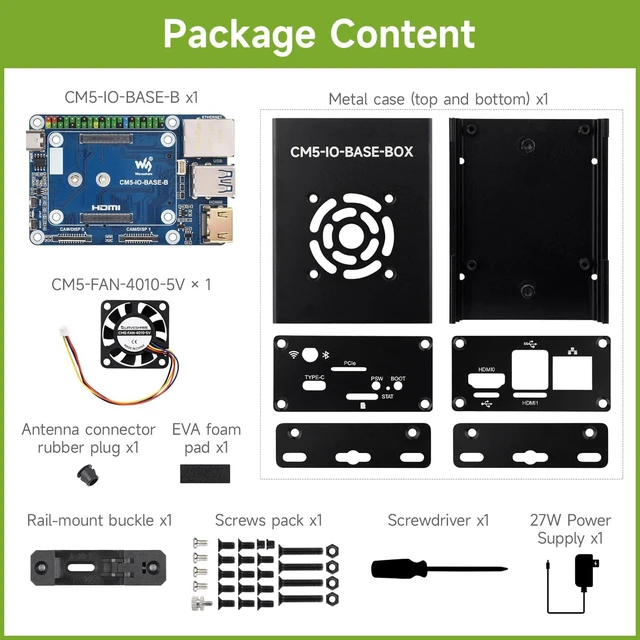

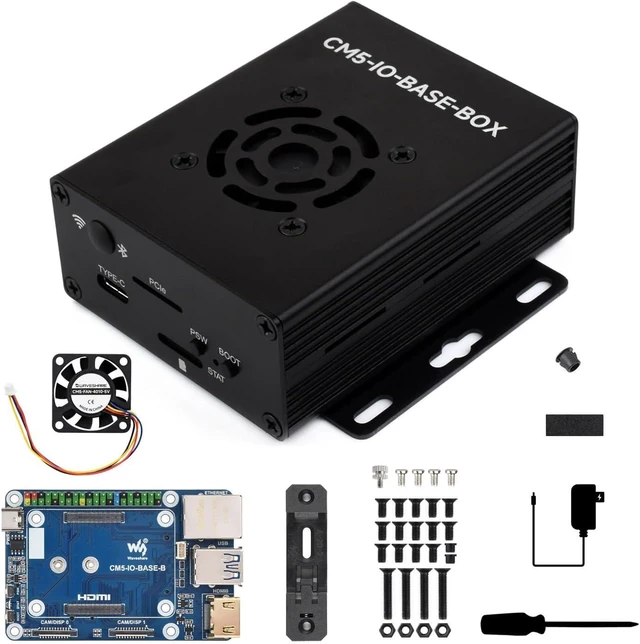

waveshare Mini Base Board, Mini-WaComputer Designed for Raspberry Pi Compute Module 5 (NOT Included), Onboard EEPROM and Encryption Chip, Including Metal Case and Power Supply
- Networking & USB: Features a Giga-bit Ethernet RJ45 connector for high-speed network connectivity, along with four USB portstwo USB 3.2 Gen1 Type-A and two USB 2.0 ports via a 6PIN 1mm FFC connector.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

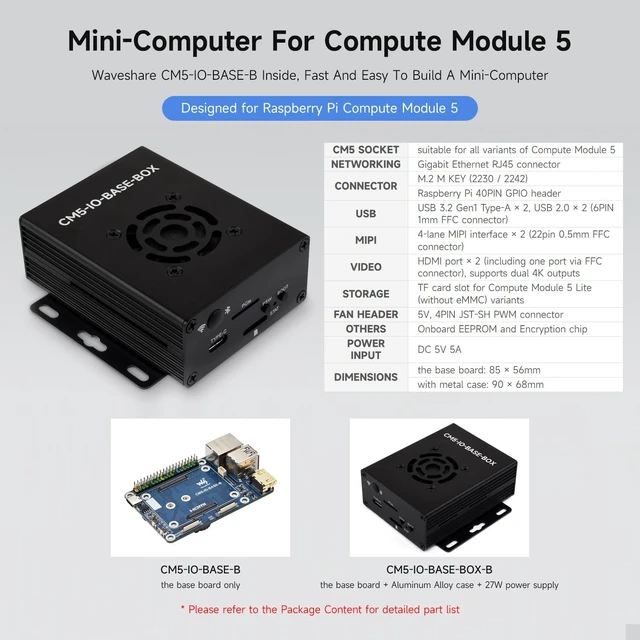

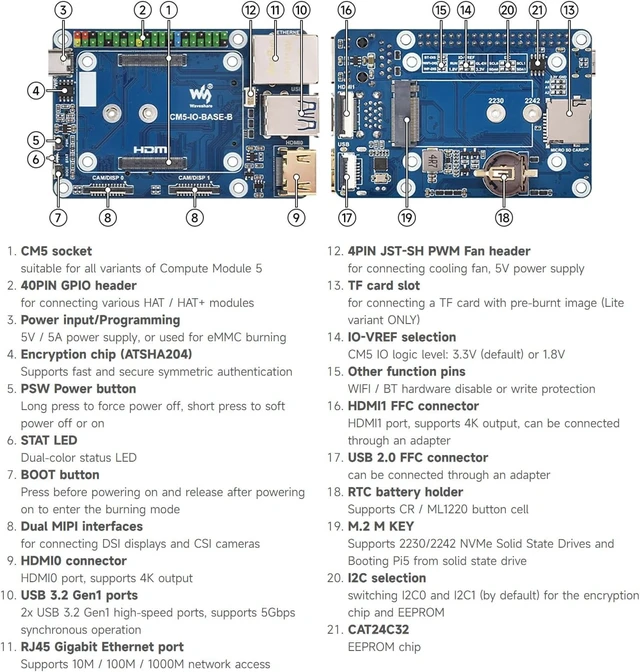

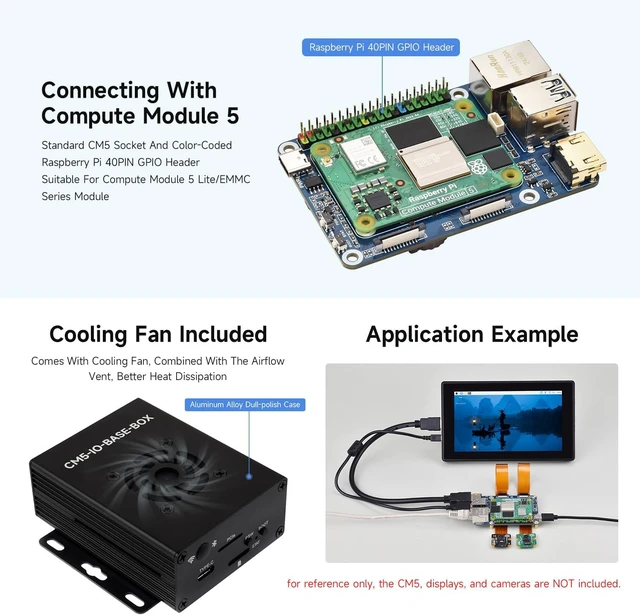

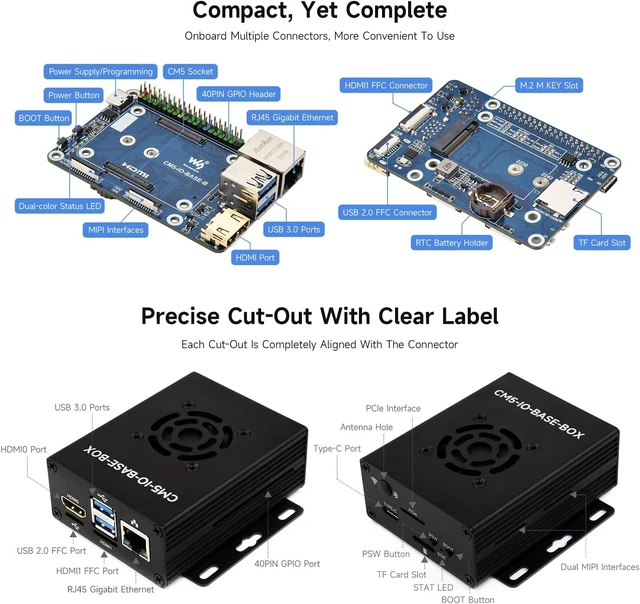

Compatibility & Connectors: The base board is compatible with all variants of the Raspberry Pi Compute Module 5 (CM5) and includes an M.2 M KEY (2230/2242) connector, Raspberry Pi 40PIN GPIO header, and dual HDMI ports supporting 4K output.
Networking & USB: Features a Giga-bit Ethernet RJ45 connector for high-speed network connectivity, along with four USB portstwo USB 3.2 Gen1 Type-A and two USB 2.0 ports via a 6PIN 1mm FFC connector.
Display & Video: Dual 4-lane MIPI interfaces (each with 22pin 0.5mm FFC connectors) for display options and two HDMI ports (one via FFC connector), supporting dual 4K video output.
Storage & Power: Offers a TF card slot for Compute Module 5 Lite variants (without eMMC) and a 5V, 5A DC power input for reliable power delivery, along with an onboard EEPROM and encryption chip.

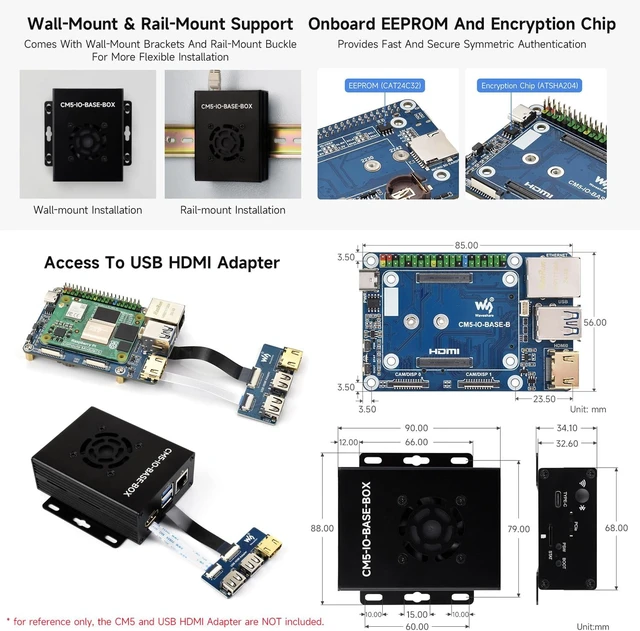

Dimensions & Cooling: Compact size of 85 × 56mm for the base board and 90 × 68mm with the included metal case, along with a 5V, 4PIN JST-SH PWM fan header for efficient cooling.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
Networking & USB: Features a Giga-bit Ethernet RJ45 connector for high-speed network connectivity, along with four USB portstwo USB 3.2 Gen1 Type-A and two USB 2.0 ports via a 6PIN 1mm FFC connector.
Display & Video: Dual 4-lane MIPI interfaces (each with 22pin 0.5mm FFC connectors) for display options and two HDMI ports (one via FFC connector), supporting dual 4K video output.
Storage & Power: Offers a TF card slot for Compute Module 5 Lite variants (without eMMC) and a 5V, 5A DC power input for reliable power delivery, along with an onboard EEPROM and encryption chip.
Dimensions & Cooling: Compact size of 85 × 56mm for the base board and 90 × 68mm with the included metal case, along with a 5V, 4PIN JST-SH PWM fan header for efficient cooling.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
