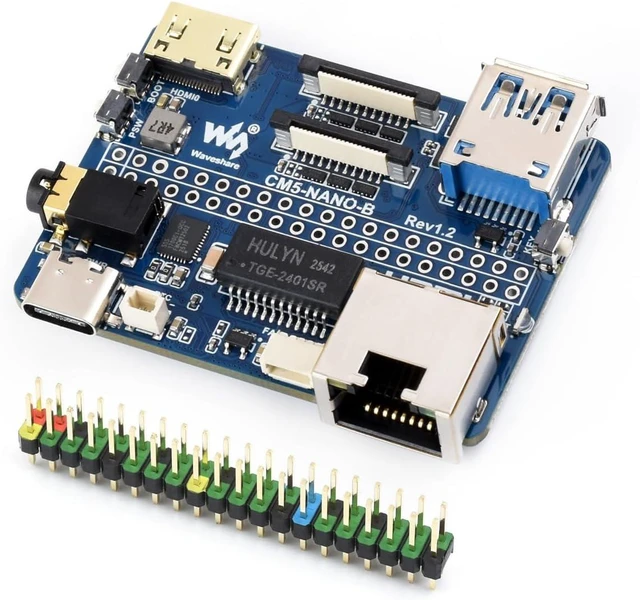

Waveshare Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC
- Networking and USB Ports: Includes a Giga-bit Ethernet RJ45 connector and a USB 3.2 Gen1 Type A port × 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

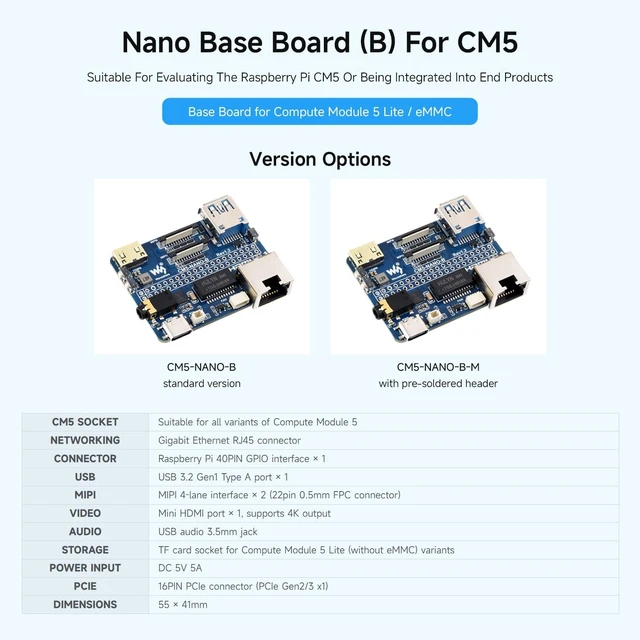

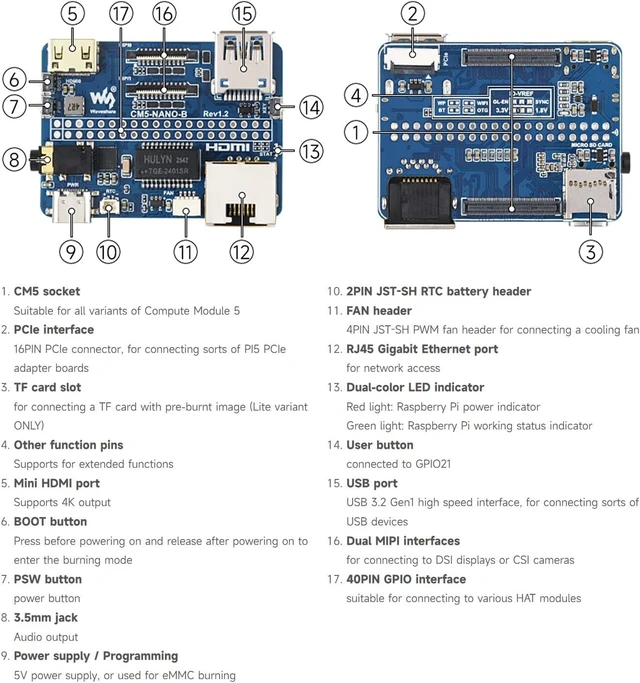

Compatibility: Features a CM5 socket compatible with all variants of the Compute Module 5.
Networking and USB Ports: Includes a Giga-bit Ethernet RJ45 connector and a USB 3.2 Gen1 Type A port × 1.
Display and Audio: Supports video output via a Mini HDMI port (4K output) and includes a USB audio 3.5mm jack for audio.
Storage and Expansion: Offers a TF card socket for Compute Module 5 Lite variants (without eMMC) and a 16-pin PCIe connector (PCIe Gen2/3 x1).

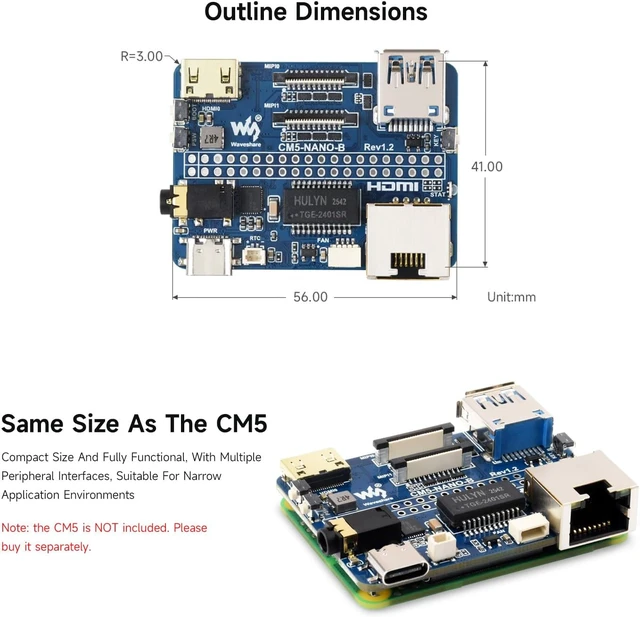

Power and Dimensions: Powered by a DC 5V 5A input, with compact dimensions of 55 × 41mm.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
Networking and USB Ports: Includes a Giga-bit Ethernet RJ45 connector and a USB 3.2 Gen1 Type A port × 1.
Display and Audio: Supports video output via a Mini HDMI port (4K output) and includes a USB audio 3.5mm jack for audio.
Storage and Expansion: Offers a TF card socket for Compute Module 5 Lite variants (without eMMC) and a 16-pin PCIe connector (PCIe Gen2/3 x1).
Power and Dimensions: Powered by a DC 5V 5A input, with compact dimensions of 55 × 41mm.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
