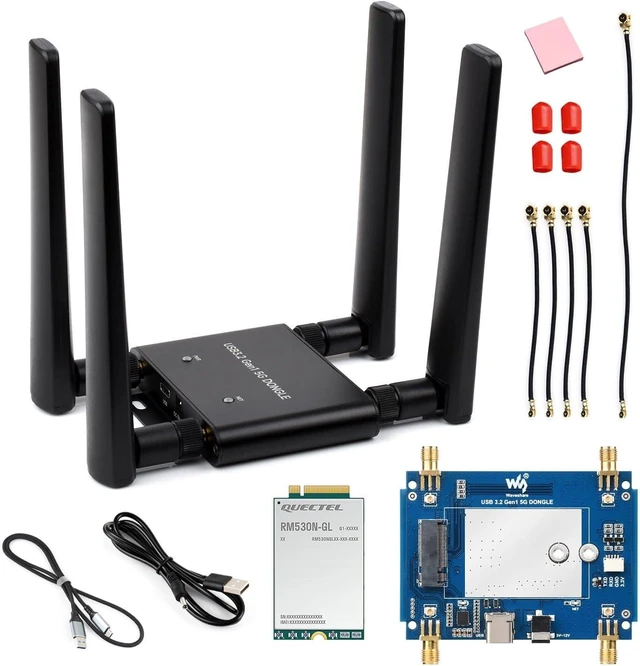

Waveshare 5G DONGLE Expansion Board, USB 3.2 Port, Aluminum Alloy Case, Quad Antennas, Onboard M.2 Key B Interface, Comes with The Qualcomm RM530N-GL 5G Sub-6G & mmWave Module, Global Applicable
- Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input Built-in UART communication interface for data transmission and other functions with some modules
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from brands such as SIMCom, Quectel, and Fibocom Supports 5G modules in 3042 / 3052 packages such as SIM82XX, RM5XX and FM650XX series
Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input Built-in UART communication interface for data transmission and other functions with some modules
Onboard 4-ch IPEX 4 to SMA antenna connector for direct mounting of antennas Onboard voltage translator circuit, supports 5 ~ 12V power supply via DC 3.5mm jack, or 5V / 2A power supply via USB 3.2 port
Onboard 1-ch standard SIM card slot, 1-ch eSIM card slot in QFN-8 (5x6) package, dual card single standby, switchable via AT command Onboard power supply and network indicators for checking working status of the module and 5G debugging
Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support
Onboard USB 3.2 Type-C port for connecting to Raspberry Pi or PC for 5G networking, firmware updating, and external power supply input Built-in UART communication interface for data transmission and other functions with some modules
Onboard 4-ch IPEX 4 to SMA antenna connector for direct mounting of antennas Onboard voltage translator circuit, supports 5 ~ 12V power supply via DC 3.5mm jack, or 5V / 2A power supply via USB 3.2 port
Onboard 1-ch standard SIM card slot, 1-ch eSIM card slot in QFN-8 (5x6) package, dual card single standby, switchable via AT command Onboard power supply and network indicators for checking working status of the module and 5G debugging
Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support
