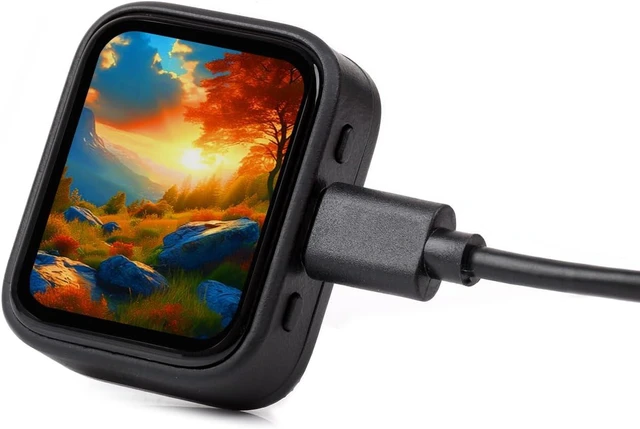

Waveshare ESP32-S3 1.8inch AMOLED Touch Display, Embedded with SH8601 Display Driver and FT3168 Capacitive Touch Chip,32-bit LX7 Dual-core Processor, 368×448 Pixels, Comes with 3.7V MX1.25 Li Battery
- Type-C connector, improving device compatibility, easier to use. Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

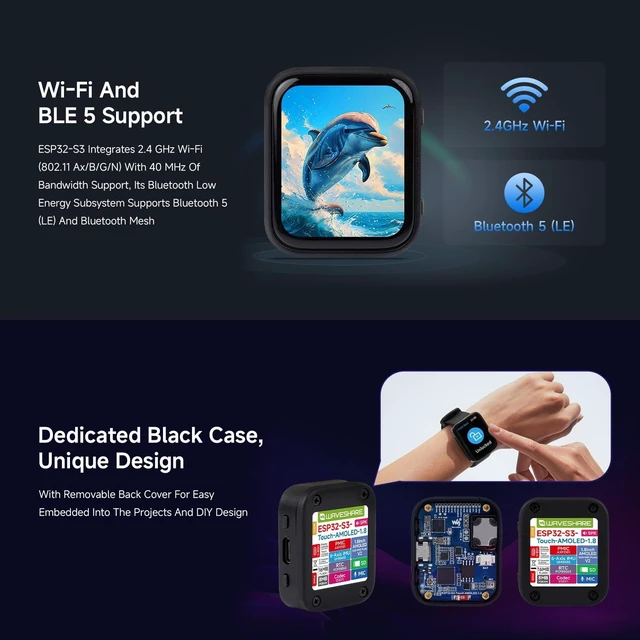

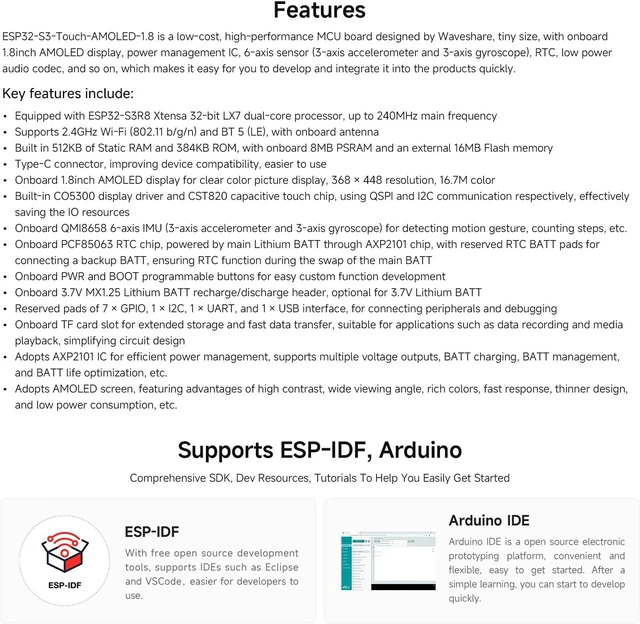

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
Type-C connector, improving device compatibility, easier to use. Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads for connecting a backup battery, ensuring RTC function during the replacement of the main battery. Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header, optional for 3.7V Lithium battery. Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design

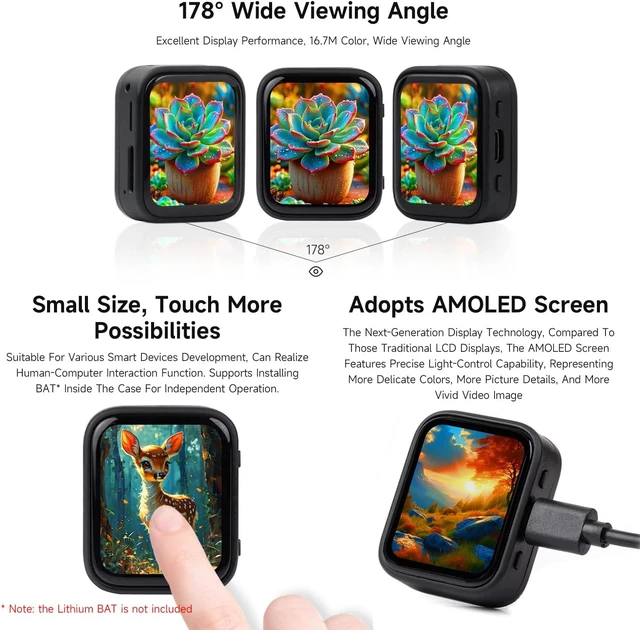

Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc. Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
Type-C connector, improving device compatibility, easier to use. Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard 1.8inch AMOLED display for clear color picture display, 368 × 448 resolution, 16.7M color. Built-in SH8601 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery pads for connecting a backup battery, ensuring RTC function during the replacement of the main battery. Onboard PWR and BOOT programmable buttons for easy custom function development
Onboard 3.7V MX1.25 Lithium battery recharge/discharge header, optional for 3.7V Lithium battery. Reserved pads of 7 × GPIO, 1 × I2C, 1 × UART, and 1 × USB interface, for connecting peripherals and debugging. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc. Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
