Waveshare ESP32-S3 1.69inch Display Development Board, 32-Bit 240MHz LX7 Dual-Core Processor, 240×280, Supports Wi-Fi/BLT, Accelerometer and Gyroscope Sensor, Micro LCD Display with ESP32-S3
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, keeps it up to date, easier to use. Onboard 1.69inch 240×280 pixels 262K display for clear color pictures
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

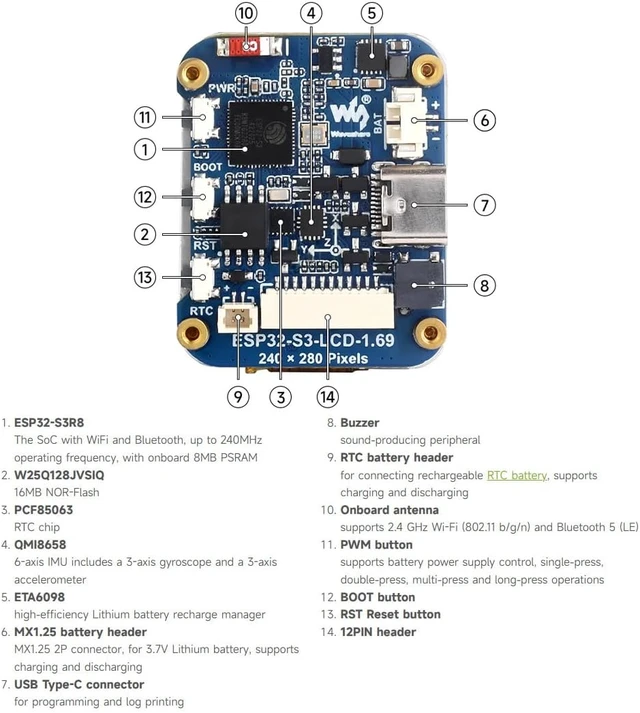

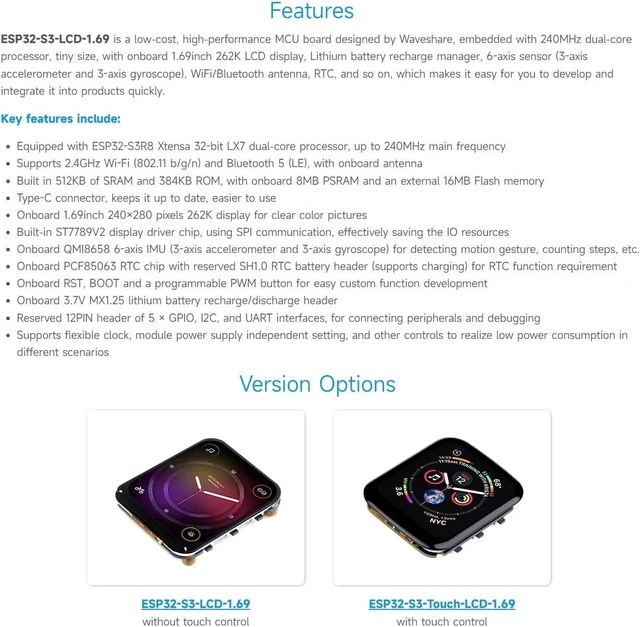

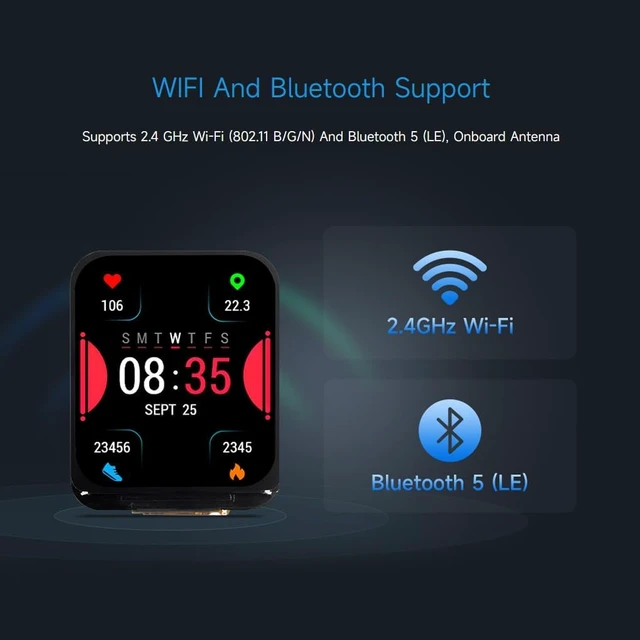

Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

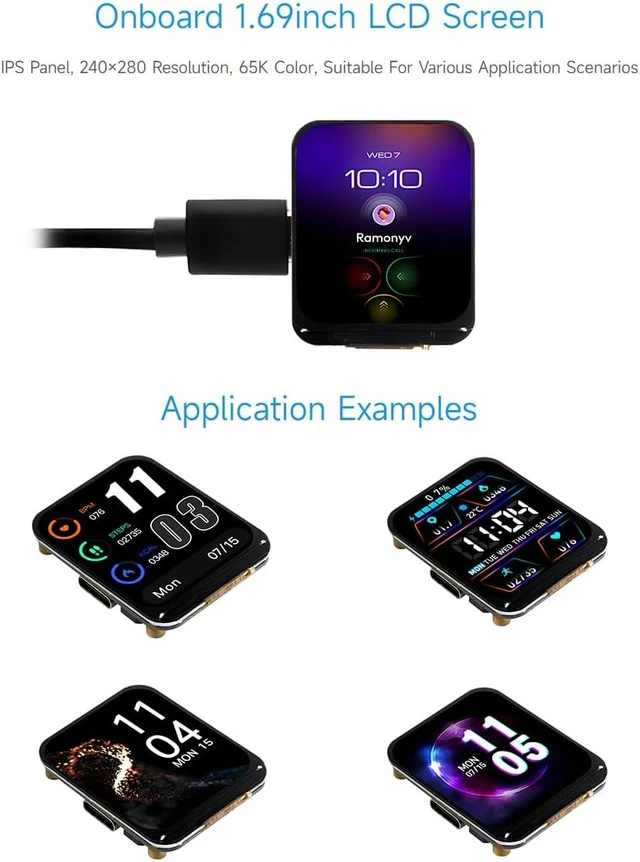

Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, keeps it up to date, easier to use. Onboard 1.69inch 240×280 pixels 262K display for clear color pictures

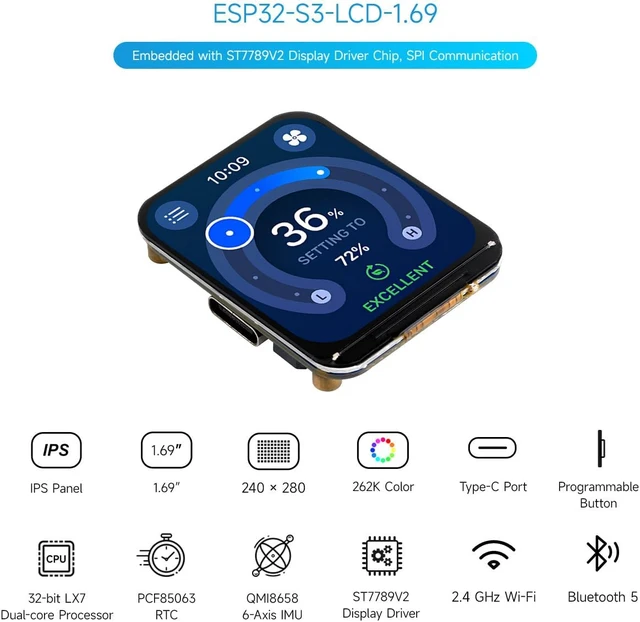

Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement. Onboard RST, BOOT and a programmable PWM button for easy custom function development

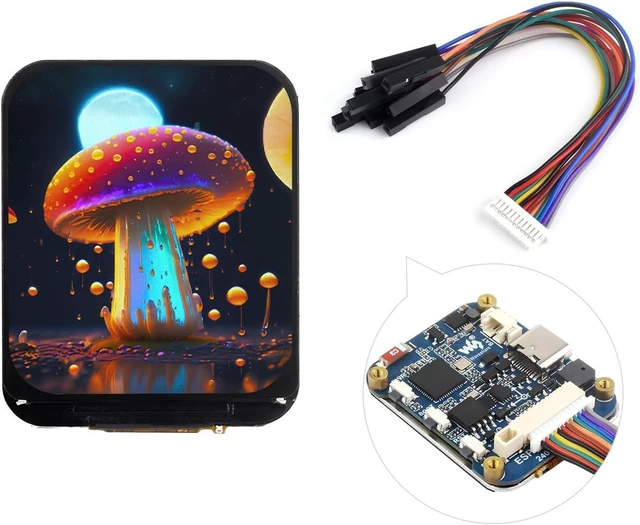

Onboard 3.7V MX1.25 lithium battery recharge/discharge header. Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Rich WiKi Resources We provide official Wiki resources, please contact us for more information.
Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory. Type-C connector, keeps it up to date, easier to use. Onboard 1.69inch 240×280 pixels 262K display for clear color pictures
Built-in ST7789V2 display driver chip, using SPI communication, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Onboard PCF85063 RTC chip with reserved SH1.0 RTC battery header (supports charging) for RTC function requirement. Onboard RST, BOOT and a programmable PWM button for easy custom function development
Onboard 3.7V MX1.25 lithium battery recharge/discharge header. Reserved 12PIN header of 5 × GPIO, I2C, and UART interfaces, for connecting peripherals and debugging. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Rich WiKi Resources We provide official Wiki resources, please contact us for more information.
