Waveshare ESP32-S3 2.8inch Capacitive Touch Display Development Board, 5-Point Touch, Multiple Peripheral Interfaces, 32-Bit LX7 Dual-Core Processor, Up to 240MHz Frequency, 240×320 Resolution
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 2.8inch LCD display, 240×320 resolution, 262K color Optional for capacitive touch function controlled via I2C interface, 5-point touch, with interrupt support

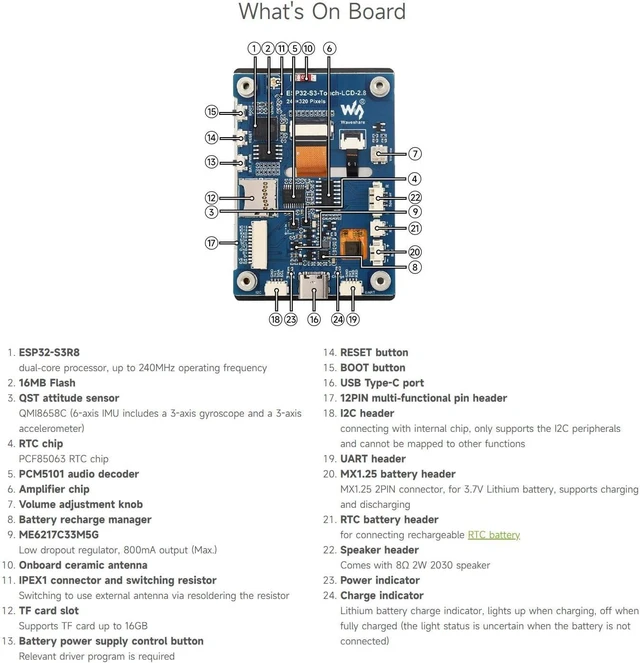

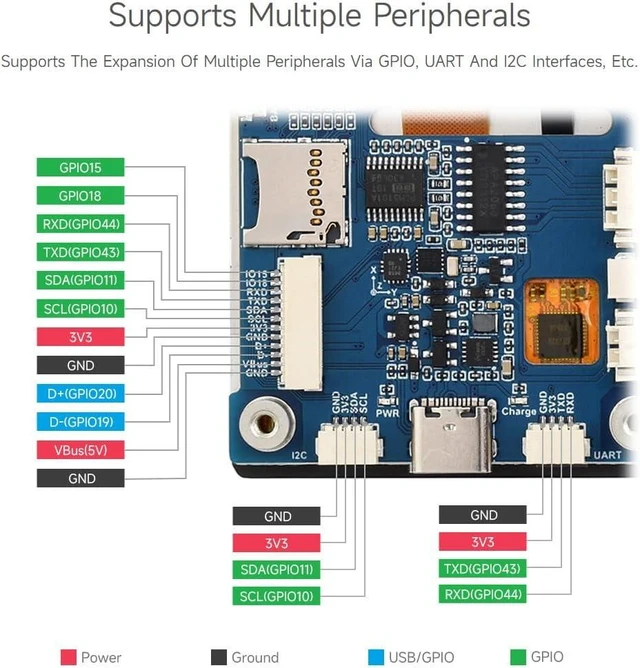

Adapting UART, I2C and some IO interfaces, integrates full-speed USB port Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 2.8inch LCD display, 240×320 resolution, 262K color Optional for capacitive touch function controlled via I2C interface, 5-point touch, with interrupt support
Adapting UART, I2C and some IO interfaces, integrates full-speed USB port Onboard speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc.
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
