Waveshare ESP32-S3 RGB LCD Driver Board, Equipped with 32-Bit 240MHz LX7 Dual-Core Processor, 8MB PSRAM and Flash, WiFi & Bluetooth Support, Driver Board Only
- Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

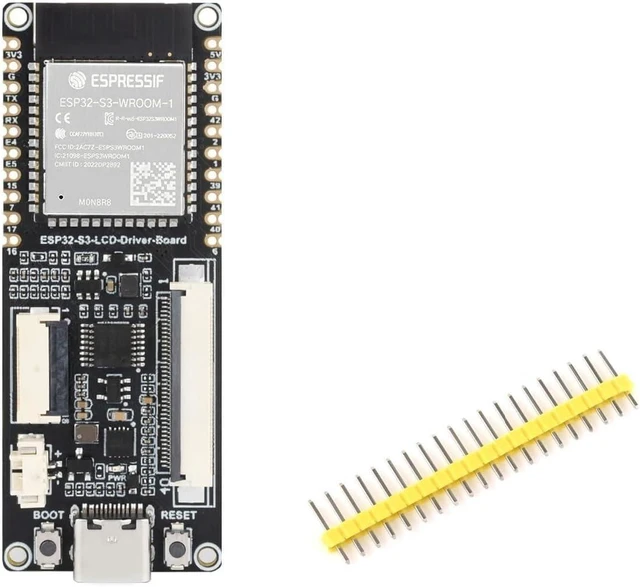

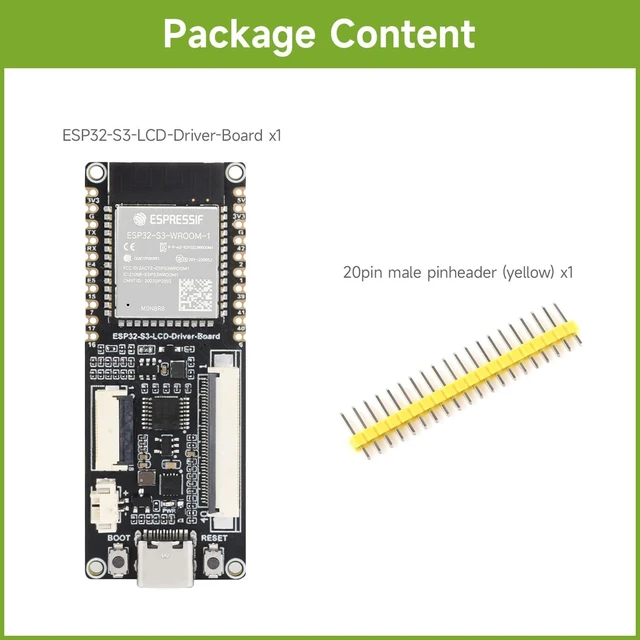

This is the RGB LCD driver board only, not include any size touch LCD. For more detailed part list, please refer to the Package Content image

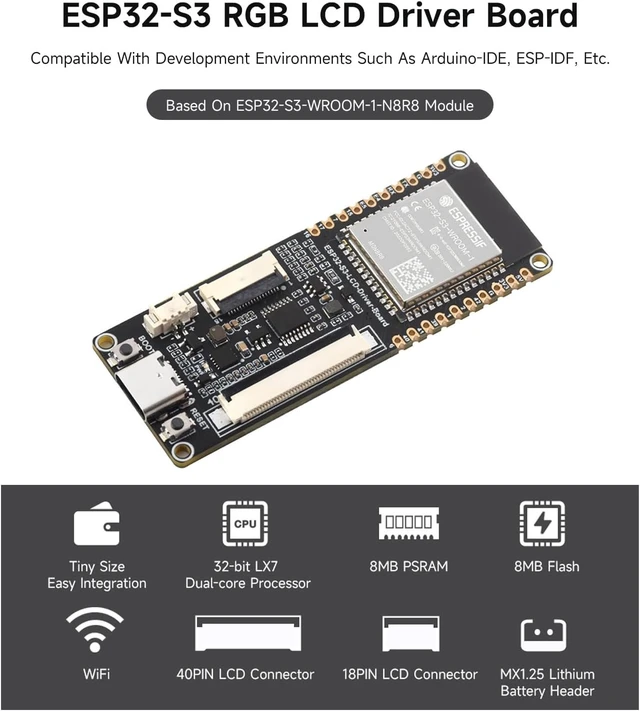

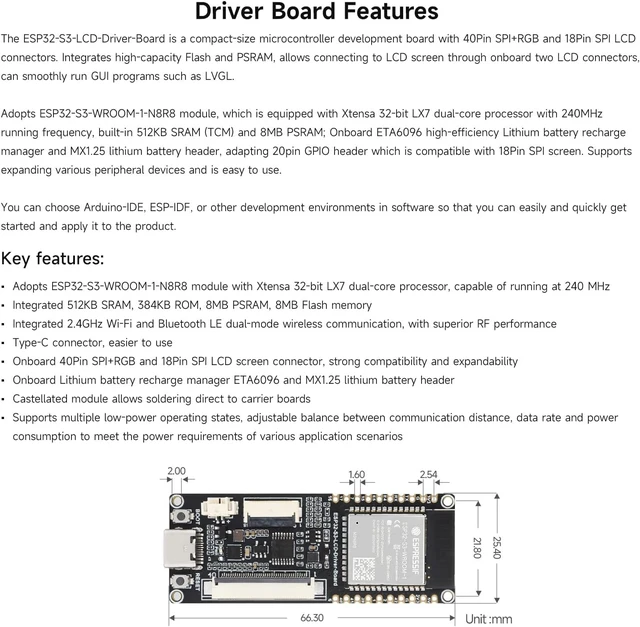

Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. Type-C connector, easier to use

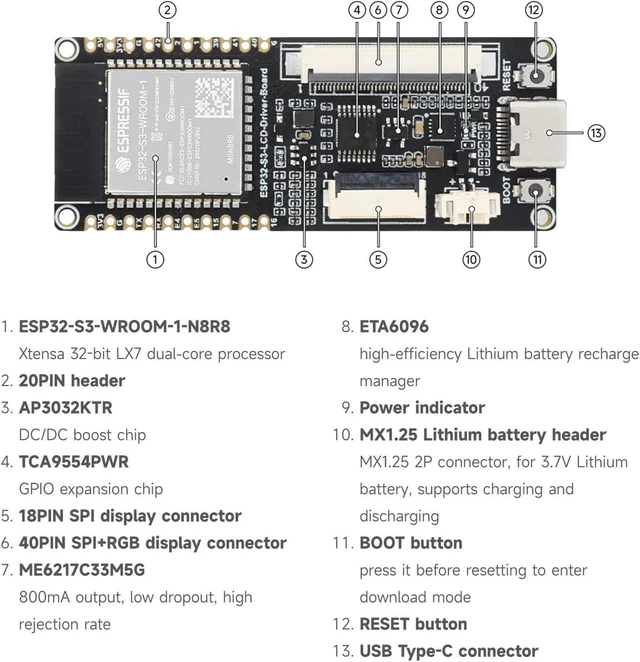

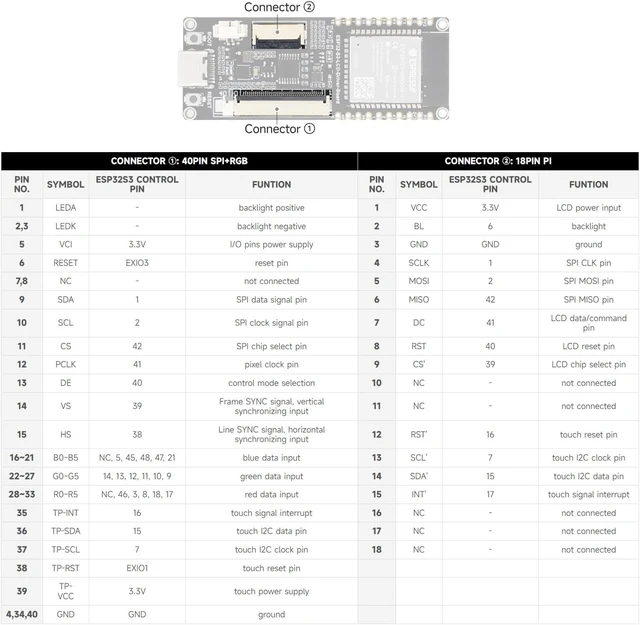

Onboard 40Pin SPI+RGB and 18Pin SPI LCD screen connector, strong compatibility and expandability. Onboard Lithium battery recharge manager ETA6096 and MX1.25 lithium battery header
Castellated module allows soldering direct to carrier boards. Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Rich WiKi Resources We provide official Wiki resources, please contact us for more information.
Adopts ESP32-S3-WROOM-1-N8R8 module with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 512KB SRAM, 384KB ROM, 8MB PSRAM, 8MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. Type-C connector, easier to use
Onboard 40Pin SPI+RGB and 18Pin SPI LCD screen connector, strong compatibility and expandability. Onboard Lithium battery recharge manager ETA6096 and MX1.25 lithium battery header
Castellated module allows soldering direct to carrier boards. Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Rich WiKi Resources We provide official Wiki resources, please contact us for more information.
