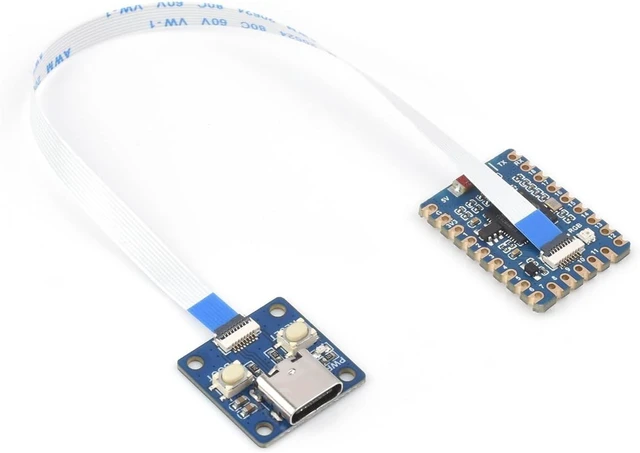

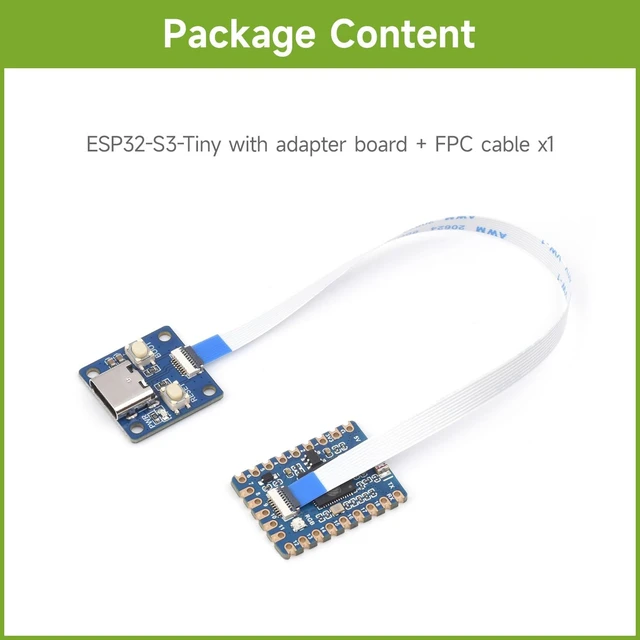

Waveshare ESP32-S3 Mini Development Board, Based On ESP32-S3FH4R2 Dual-Core Processor, 240MHz Running Frequency, Comes with Adapter Board and FPC Cable
- Built in 512KB of SRAM and 384KB ROM, onboard 2MB PSRAM and 4MB Flash memory
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Adopts ESP32-S3FH4R2 chip with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
Built in 512KB of SRAM and 384KB ROM, onboard 2MB PSRAM and 4MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board
34 × multi-function GPIO pins. Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Built in 512KB of SRAM and 384KB ROM, onboard 2MB PSRAM and 4MB Flash memory
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
Onboard FPC 8PIN connector, supports adapting USB Type-C port via adapter board
34 × multi-function GPIO pins. Rich peripheral interfaces, including SPI, I2C, UART, ADC, and PWM, etc. to achieve various functions flexibly
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
