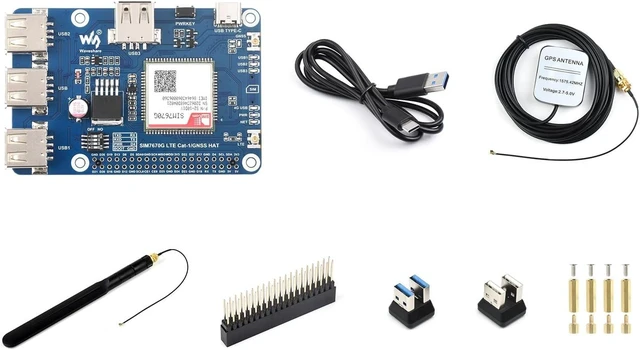

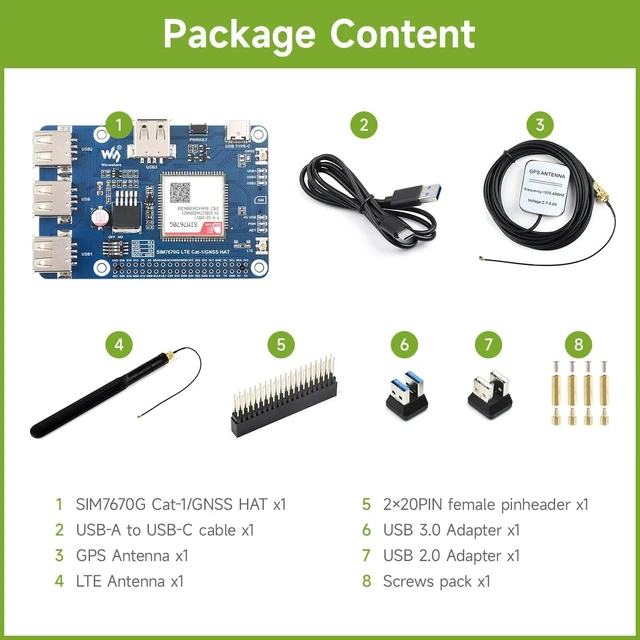

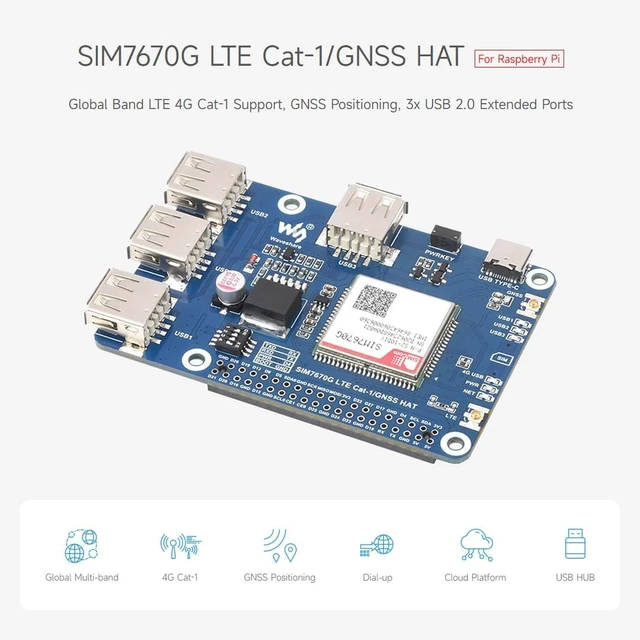

Waveshare Cat-1/GNSS HAT for Raspberry Pi, Based On SIM7670G Module | Global Multi-band LTE 4G Cat-1 support, GNSS positioning, 3x USB 2.0 extended ports
- Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

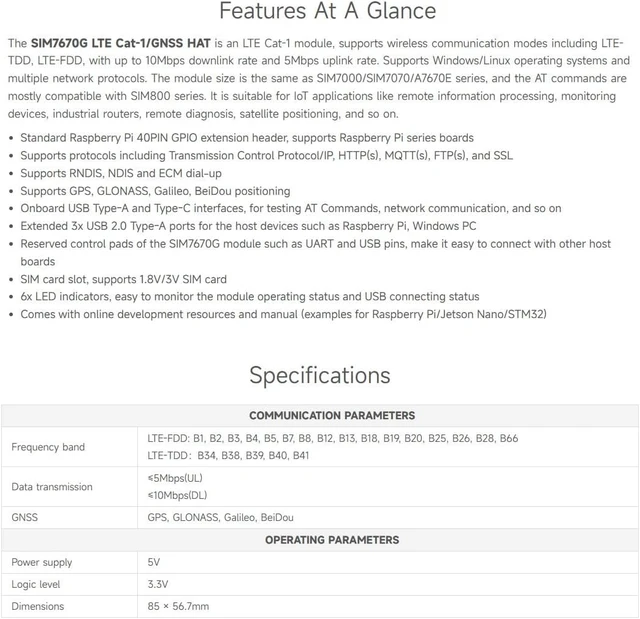

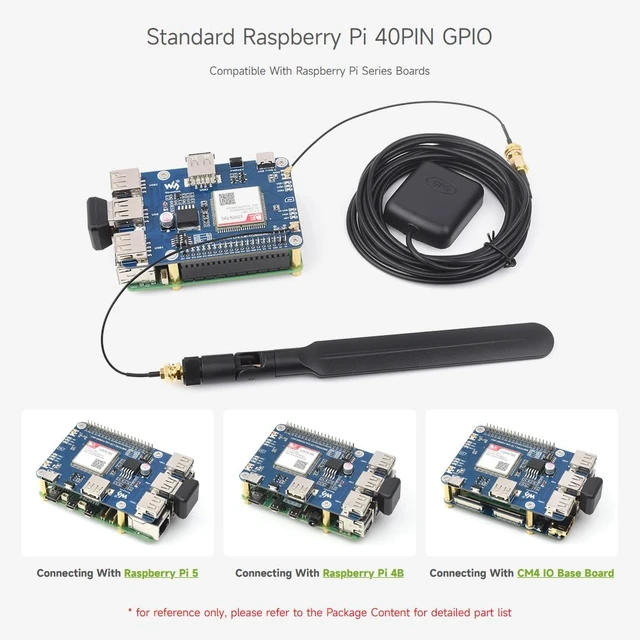

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL

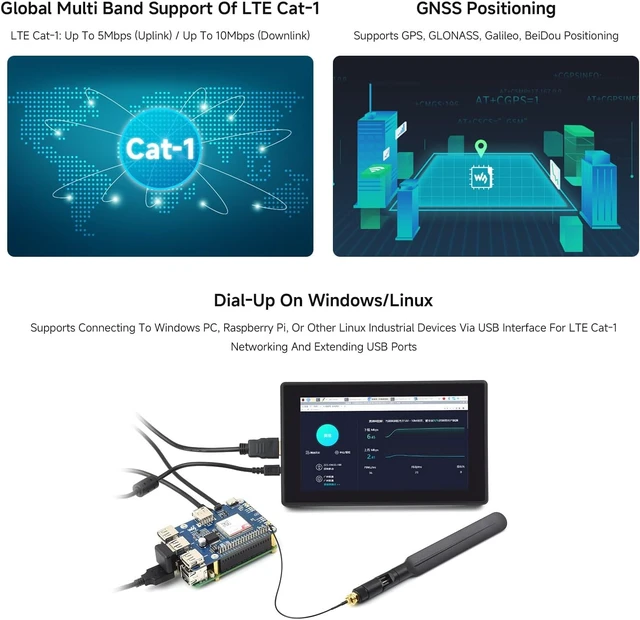

Supports RNDIS, NDIS and ECM dial-up
Supports GPS, GLONASS, Galileo, BeiDou positioning
Onboard USB Type-A and Type-C interfaces, for testing AT Commands, network communication, and so on
Extended 3x USB 2.0 Type-A ports for the host devices such as Raspberry Pi, Windows PC

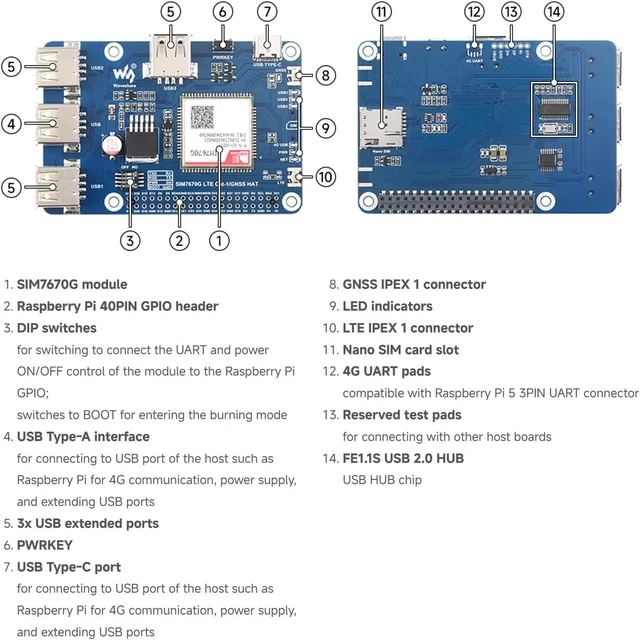

Reserved control pads of the SIM7670G module such as UART and USB pins, make it easy to connect with other host boards
SIM card slot, supports 1.8V/3V SIM card
6x LED indicators, easy to monitor the module operating status and USB connecting status
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)
Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL
Supports RNDIS, NDIS and ECM dial-up
Supports GPS, GLONASS, Galileo, BeiDou positioning
Onboard USB Type-A and Type-C interfaces, for testing AT Commands, network communication, and so on
Extended 3x USB 2.0 Type-A ports for the host devices such as Raspberry Pi, Windows PC
Reserved control pads of the SIM7670G module such as UART and USB pins, make it easy to connect with other host boards
SIM card slot, supports 1.8V/3V SIM card
6x LED indicators, easy to monitor the module operating status and USB connecting status
Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)
