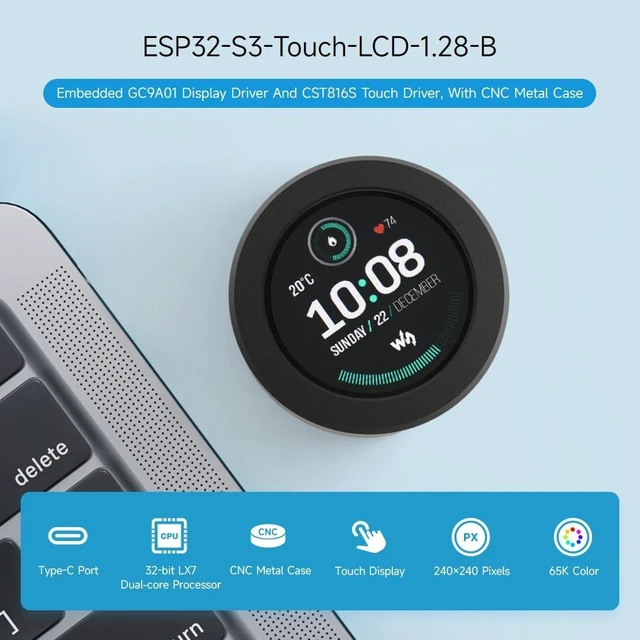

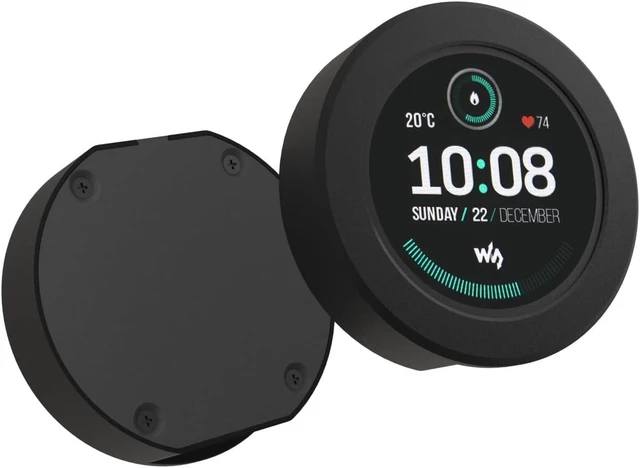

Waveshare ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact Size, Accelerometer and Gyroscope Sensor, Embedded GC9A01 Display Driver and CST816S Touch Driver, with CNC Metal Case
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

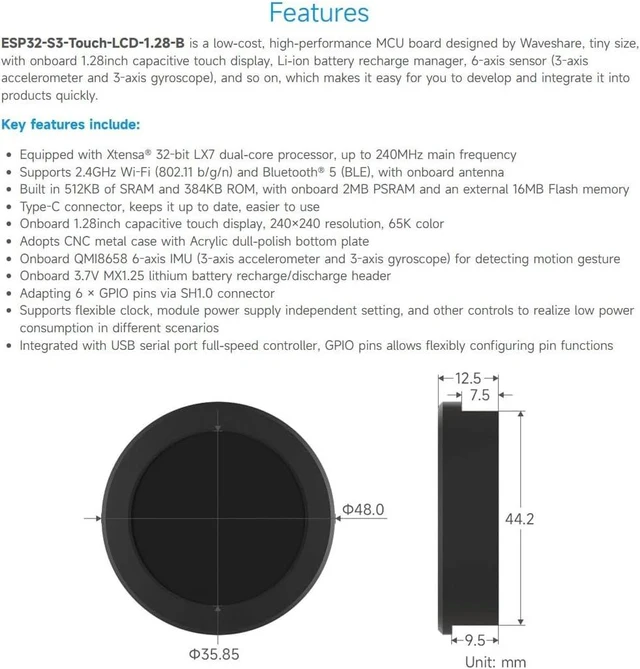

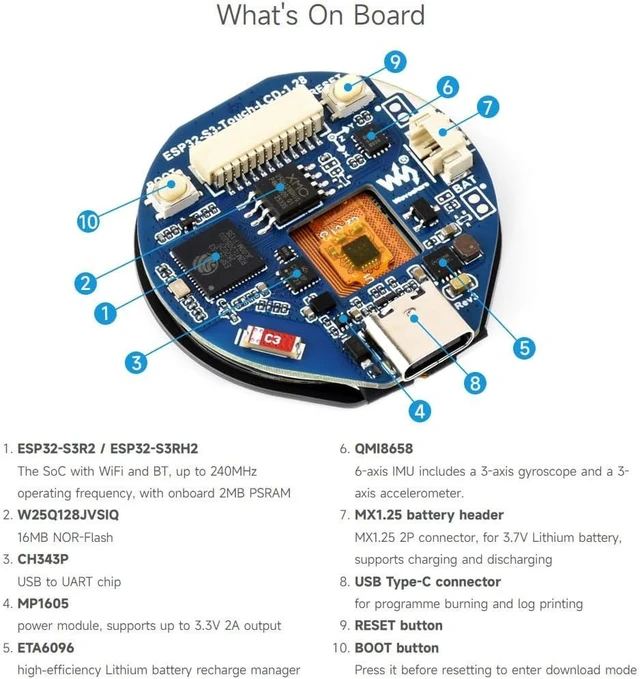

Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory

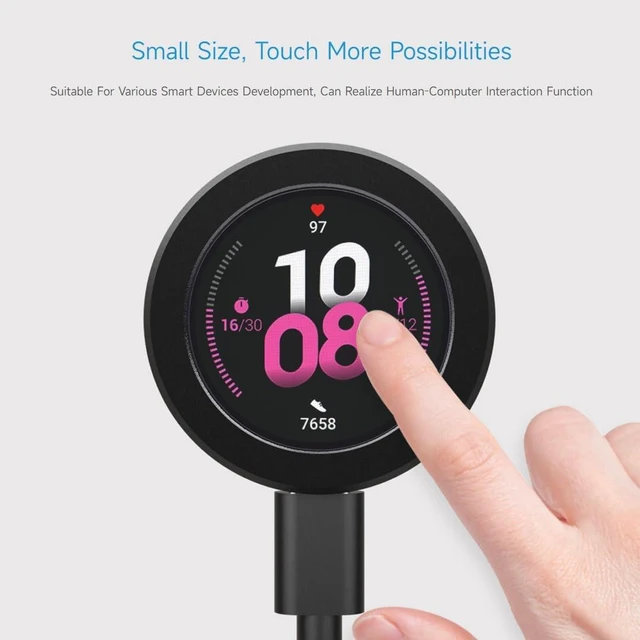

Type-C connector, keeps it up to date, easier to use Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color

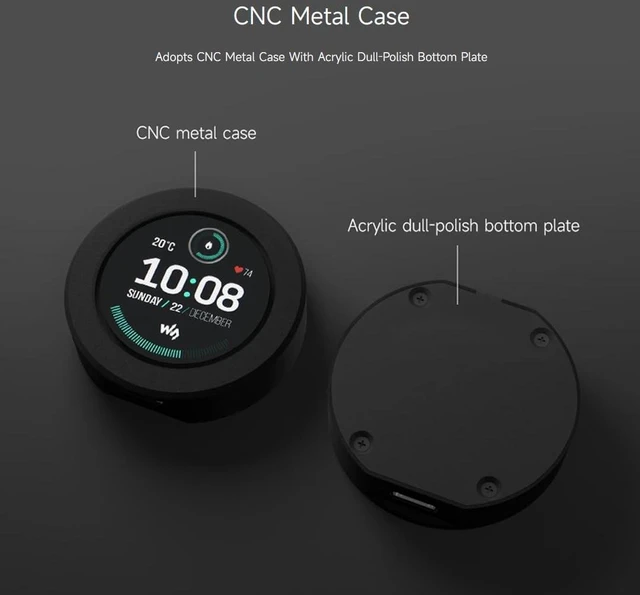

Adopts CNC metal case with Acrylic dull-polish bottom plate Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna
Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
Type-C connector, keeps it up to date, easier to use Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
Adopts CNC metal case with Acrylic dull-polish bottom plate Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector. Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions
