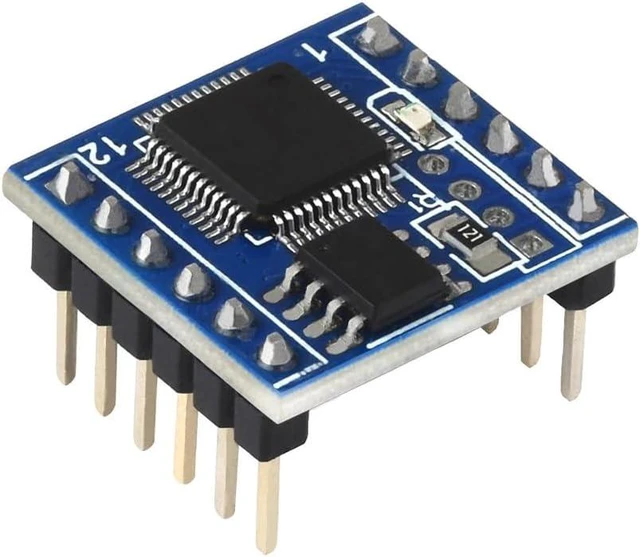

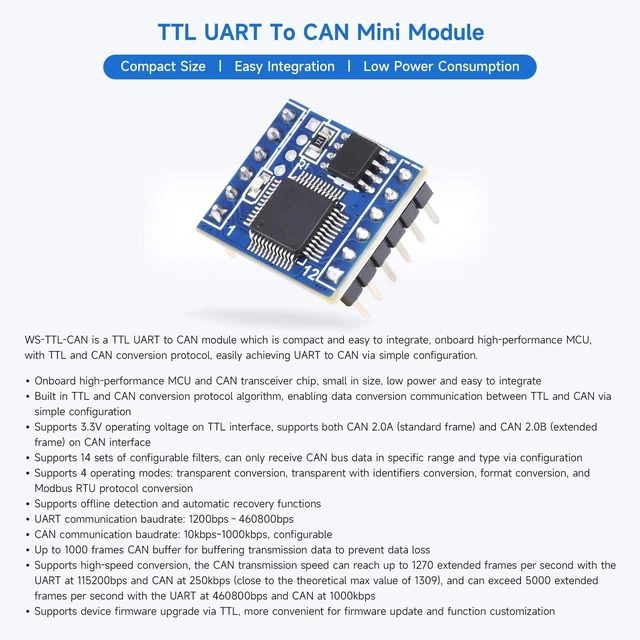

Waveshare TTL UART to CAN Mini Module, with TTL and CAN Conversion Protocol, Supports Bi-Directional Transmitting and Receiving, Multiple Operating Modes

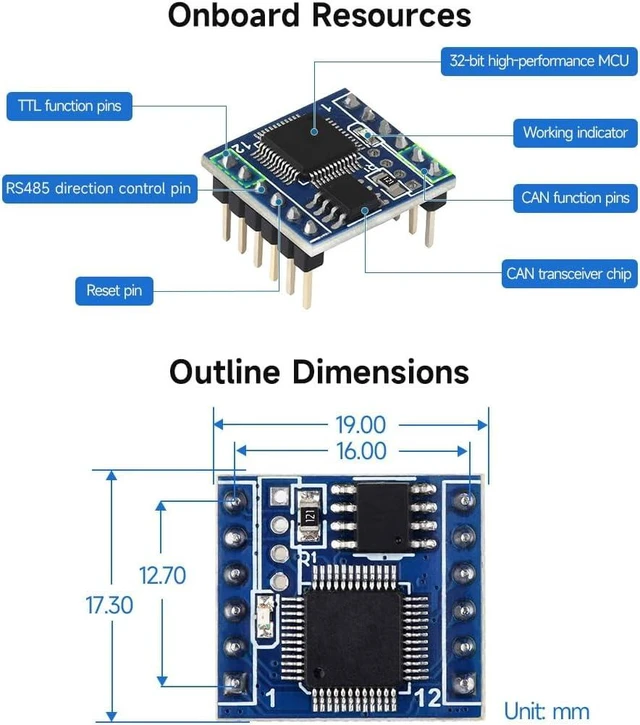

Onboard high-performance MCU and CAN transceiver chip, small in size, low power and easy to integrate

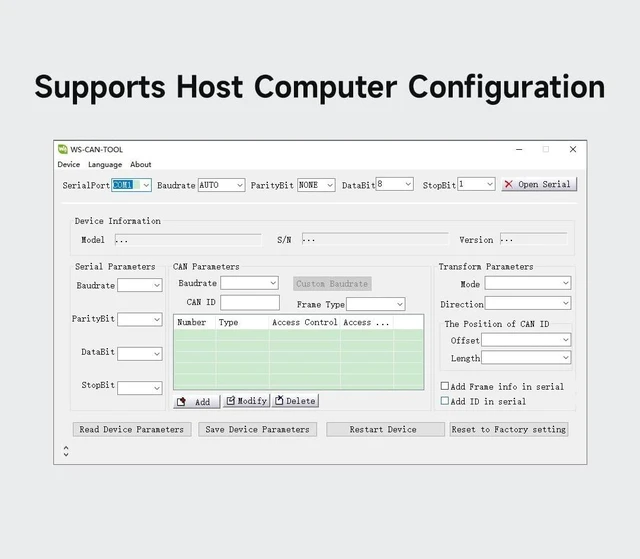

Built in TTL and CAN conversion protocol algorithm, enabling data conversion communication between TTL and CAN via simple configuration

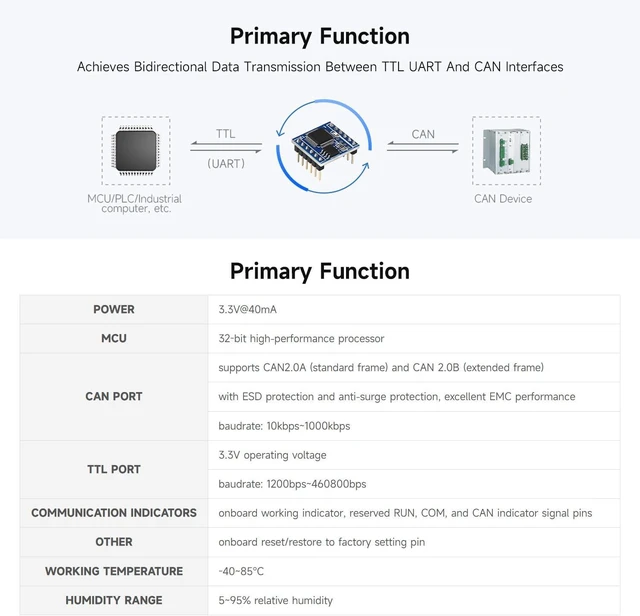

Supports 3.3V operating voltage on TTL interface, supports both CAN 2.0A (standard frame) and CAN 2.0B (extended frame) on CAN interface
Supports 14 sets of configurable filters, can only receive CAN bus data in specific range and type via configuration
Supports 4 operating modes: transparent conversion, transparent with identifiers conversion, format conversion, and Modbus RTU protocol conversion
Supports offline detection and automatic recovery functions UART communication baudrate: 1200bps460800bps CAN communication baudrate: 10kbps~1000kbps, configurable
Up to 1000 frames CAN buffer for buffering transmission data to prevent data loss
Supports high-speed conversion, the CAN transmission speed can reach up to 1270 extended frames per second with the UART at 115200bps and CAN at 250kbps (close to the theoretical max value of 1309), and can exceed 5000 extended frames per second with the UART at 460800bps and CAN at 1000kbps
Supports device firmware upgrade via TTL, more convenient for firmware update and function customization
