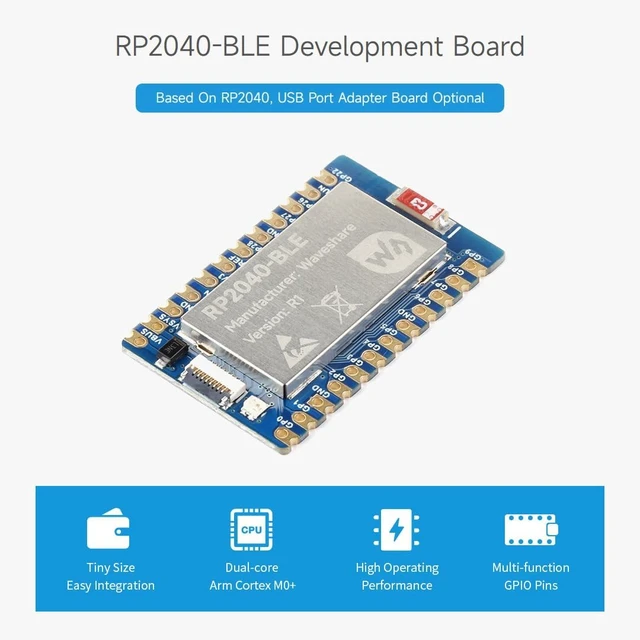

Waveshare RP2040-BLE Development Board, Raspberry Pi Microcontroller Development Board, Based On RP2040, Supports Bluetooth 5.1 Dual Mode, with USB Port Adapter Board and 8PIN FPC Cable ~15cm
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

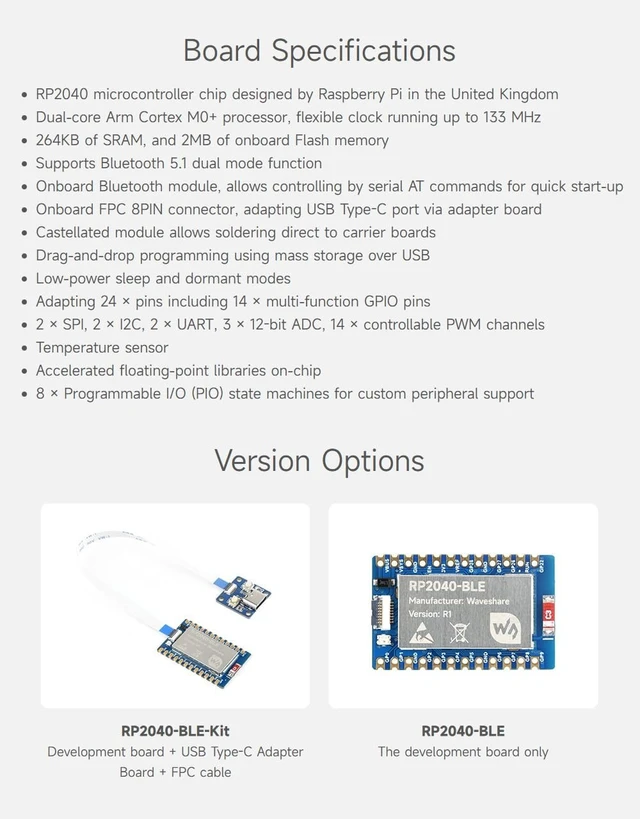

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

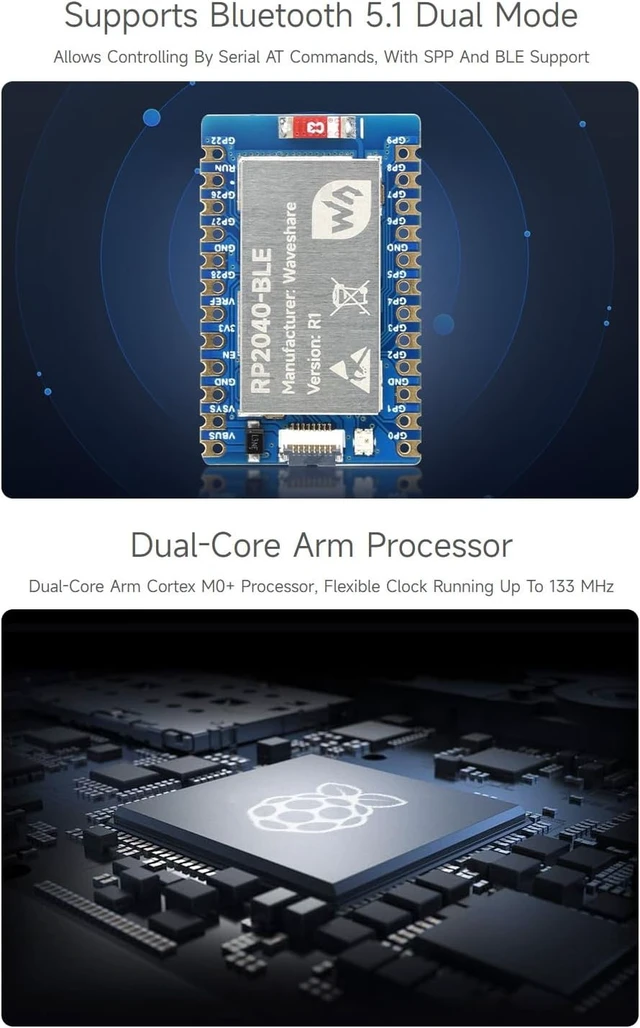

264KB of SRAM, and 2MB of onboard Flash memory. Supports Bluetooth 5.1 dual mode function
Onboard Bluetooth module, allows controlling by serial AT commands for quick start-up

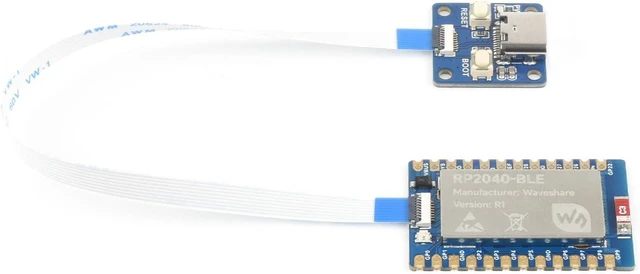

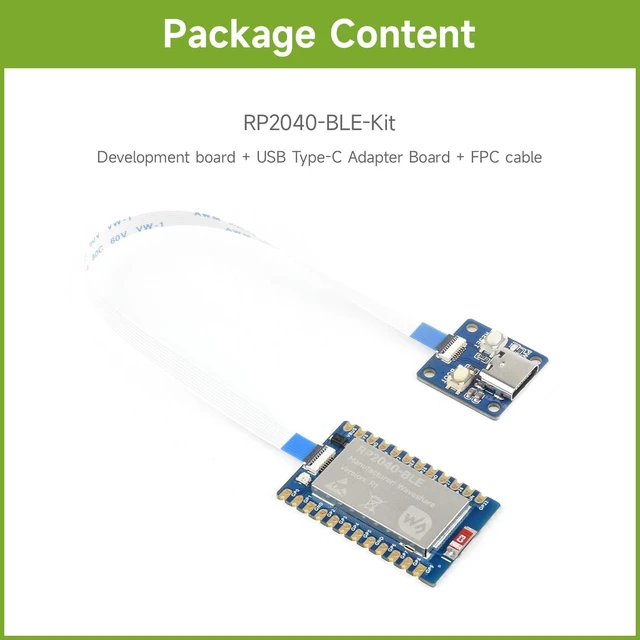

Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
Castellated module allows soldering direct to carrier boards. Drag-and-drop programming using mass storage over USB

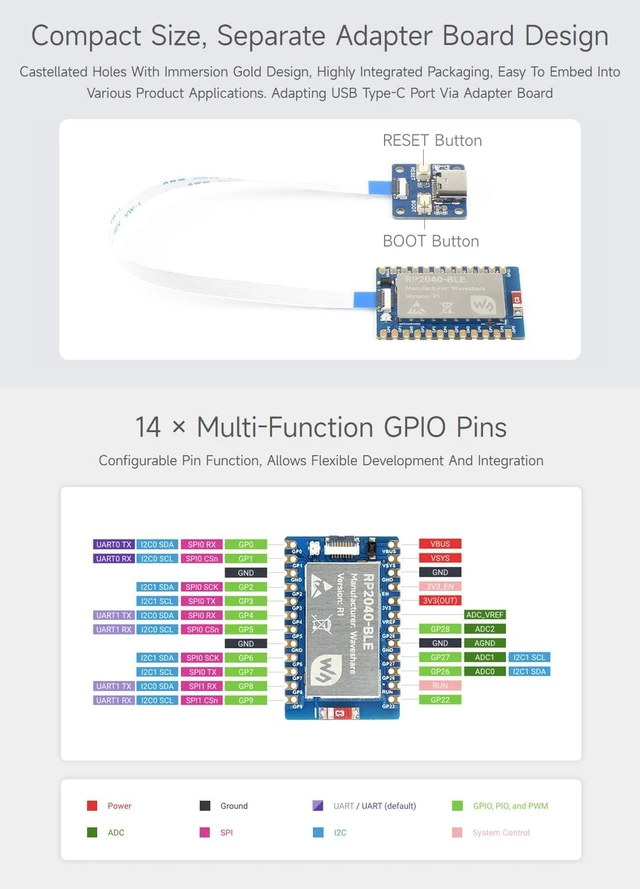

Low-power sleep and dormant modes. Adapting 24 × pins including 14 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 14 × controllable PWM channels Temperature sensor. Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory. Supports Bluetooth 5.1 dual mode function
Onboard Bluetooth module, allows controlling by serial AT commands for quick start-up
Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
Castellated module allows soldering direct to carrier boards. Drag-and-drop programming using mass storage over USB
Low-power sleep and dormant modes. Adapting 24 × pins including 14 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 14 × controllable PWM channels Temperature sensor. Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
