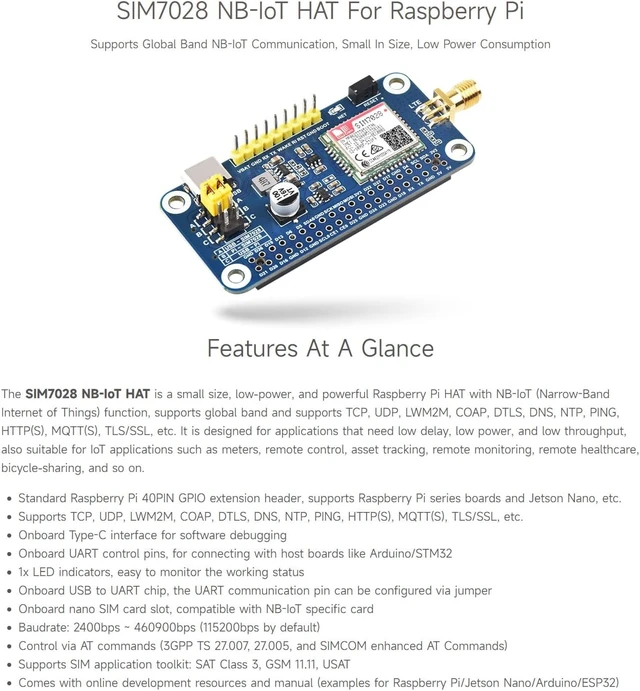

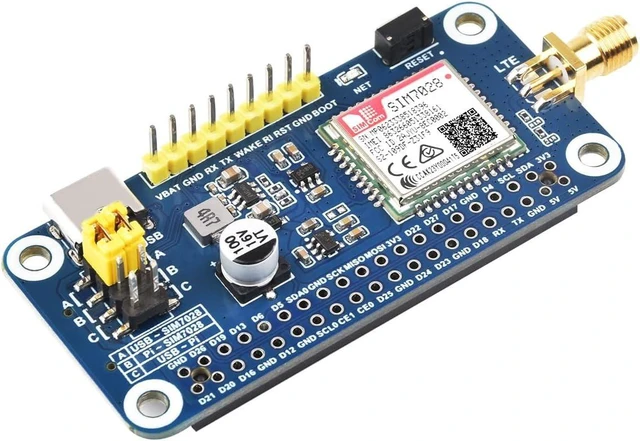

Waveshare SIM7028 NB-IoT HAT Supports Global Band NB-IoT Communication, Compatible with Raspberry Pi, Onboard 40PIN GPIO Header, Comes with GSM Antenna

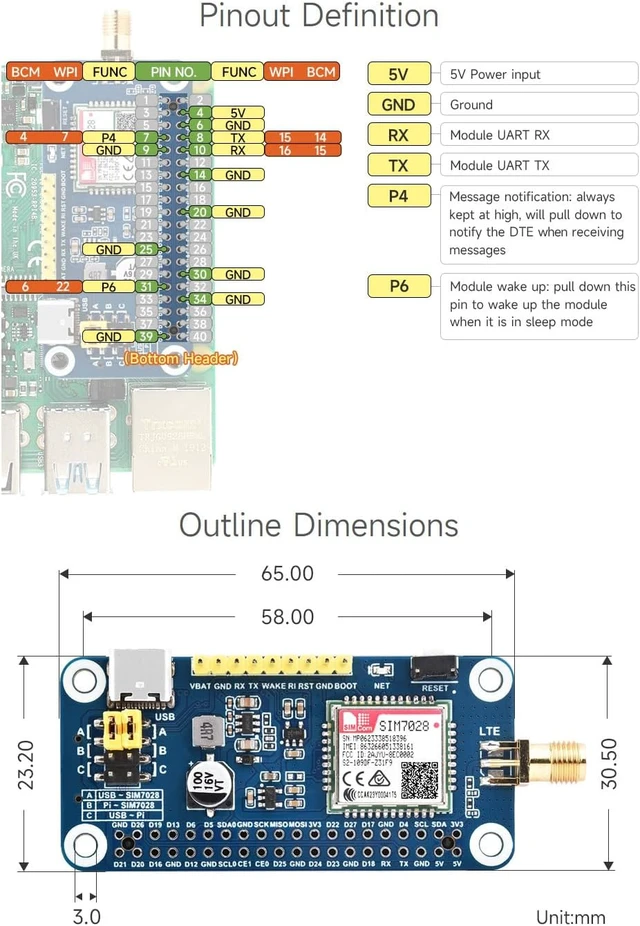

- Onboard Type-C interface for software debugging. Onboard UART control pins, for connecting with host boards like Ardino/STM32
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano, etc.. Supports TCP, UDP, LWM2M, COAP, DTLS, DNS, NTP, PING, HTTP(S), MQTT(S), TLS/SSL, etc.
Onboard Type-C interface for software debugging. Onboard UART control pins, for connecting with host boards like Ardino/STM32
1x LED indicators, easy to monitor the working status. Onboard USB to UART chip, the UART communication pin can be configured via jumper. Onboard nano SIM card slot, compatible with NB-IoT specific card

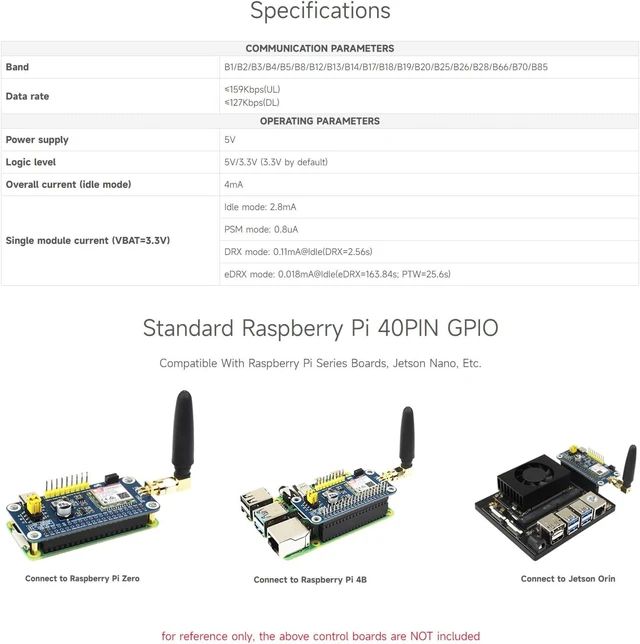

Baudrate: 2400bps ~ 460900bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: SAT Class 3, GSM 11.11, USAT. Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/ESP32)
Onboard Type-C interface for software debugging. Onboard UART control pins, for connecting with host boards like Ardino/STM32
1x LED indicators, easy to monitor the working status. Onboard USB to UART chip, the UART communication pin can be configured via jumper. Onboard nano SIM card slot, compatible with NB-IoT specific card
Baudrate: 2400bps ~ 460900bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: SAT Class 3, GSM 11.11, USAT. Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/ESP32)
