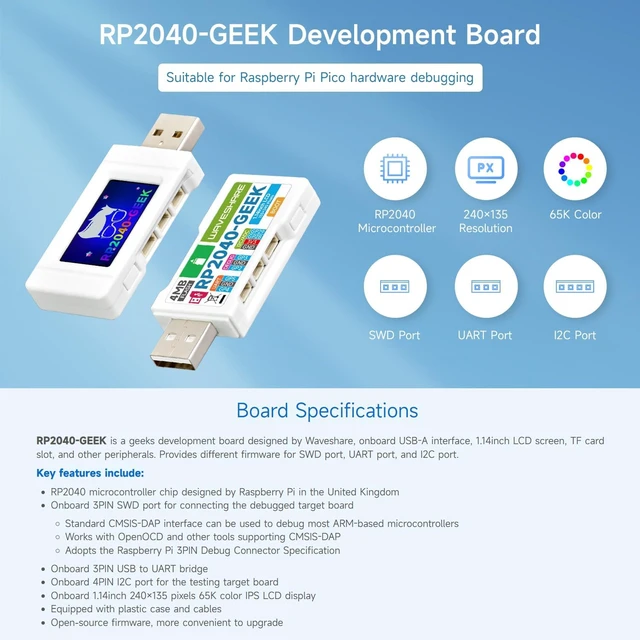

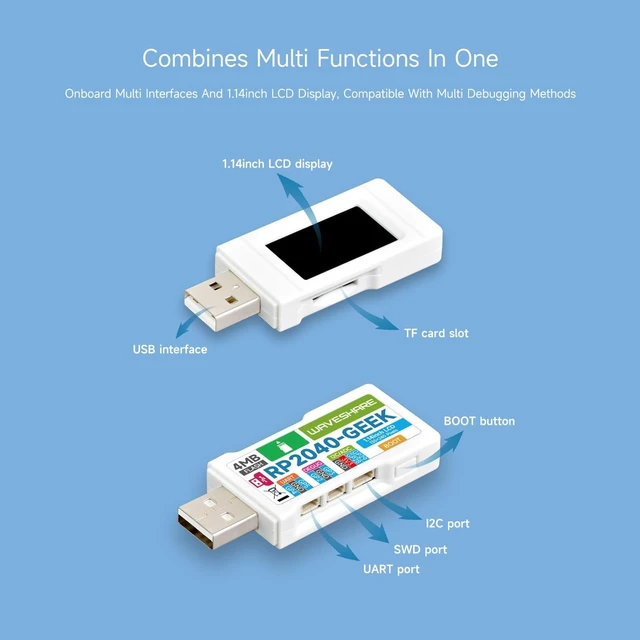

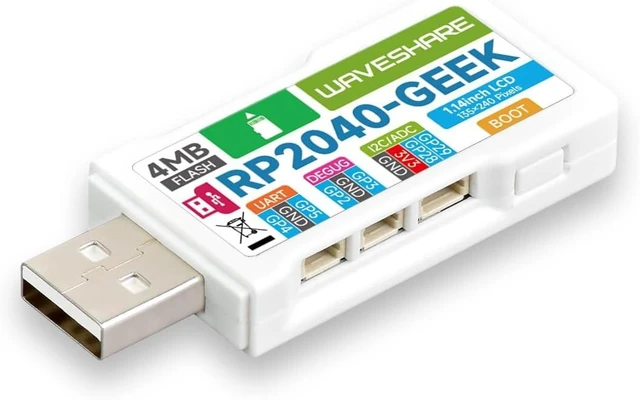

Waveshare RP2040-GEEK Development Board, Based On RP2040 Microcontroller, with 1.14inch 65K Color LCD, USB Debugging Downloader, with White Plastic Case
- Onboard 3PIN SWD port for connecting the debugged target board. Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers. Works with OpenOCD and other tools supporting CMSIS-DAP. Adopts the Raspberry Pi 3PIN Debug Connector Specification
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

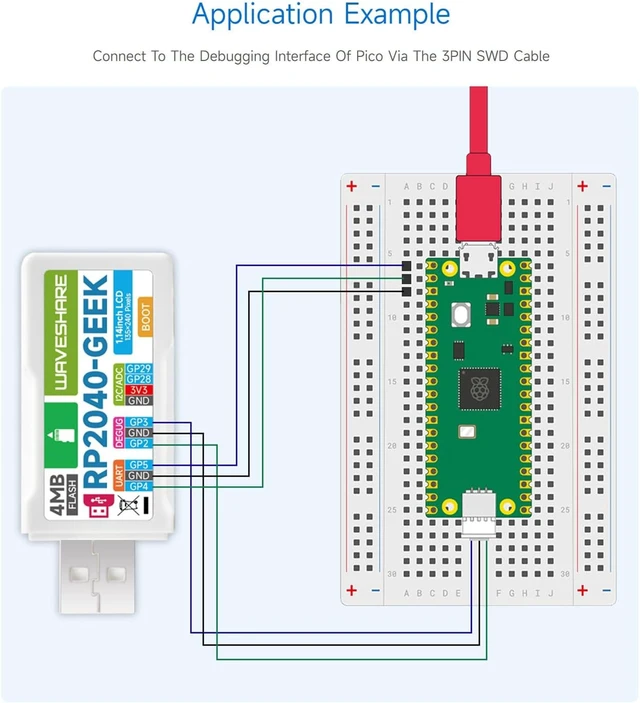

Onboard 3PIN SWD port for connecting the debugged target board. Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers. Works with OpenOCD and other tools supporting CMSIS-DAP. Adopts the Raspberry Pi 3PIN Debug Connector Specification
Onboard 3PIN USB to UART bridge. Onboard 4PIN I2C port for the testing target board
Onboard 1.14inch 240×135 pixels 65K color IPS LCD display

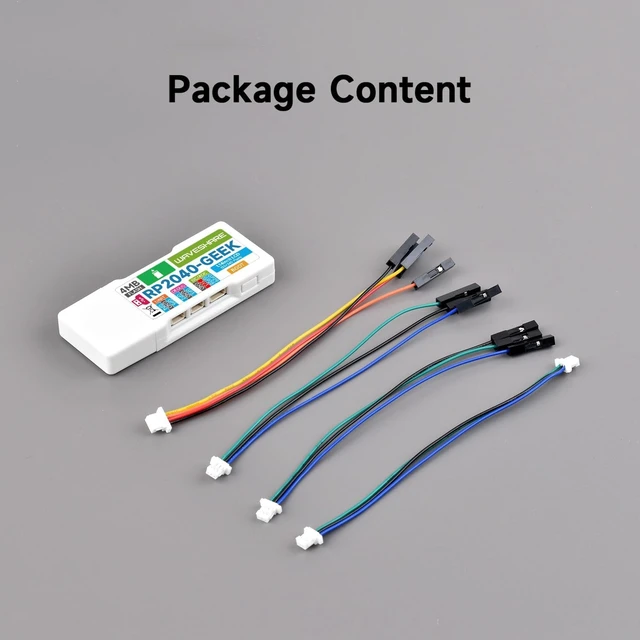

Equipped with plastic case and cables. Open-source firmware, more convenient to upgrade
Onboard 3PIN SWD port for connecting the debugged target board. Standard CMSIS-DAP interface can be used to debug most ARM-based microcontrollers. Works with OpenOCD and other tools supporting CMSIS-DAP. Adopts the Raspberry Pi 3PIN Debug Connector Specification
Onboard 3PIN USB to UART bridge. Onboard 4PIN I2C port for the testing target board
Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
Equipped with plastic case and cables. Open-source firmware, more convenient to upgrade
