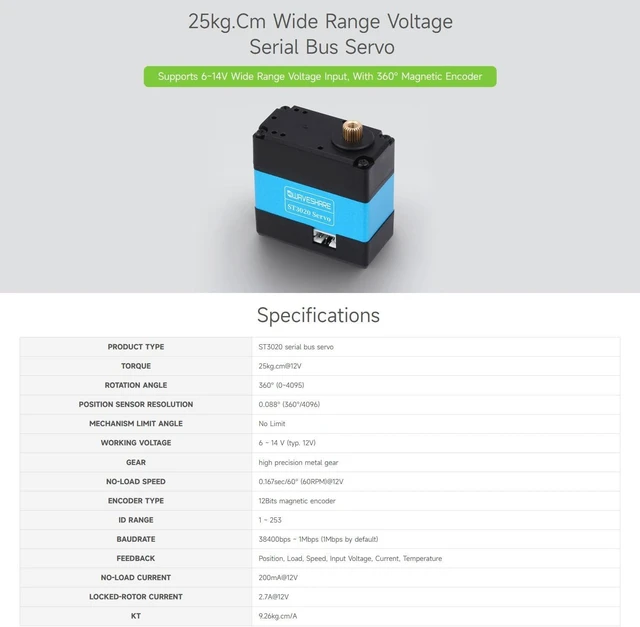

Waveshare 25kg.Cm Wide Range Voltage Serial Bus Servo, High Precision and Large Torque, with Programmable 360 Degrees Magnetic Encoder, Two-Way Feedback, Servo/Motor Mode Switchable

Note: though one channel UART can control up to 253 serial bus servos, due to the high power of the servos, it is necessary to consider whether the power supply solution is enough when using too many servos. For reference only, the servo driver board is NOT included
Supports 6.0~14V Wide Range Voltage Input, And Can Be Directly Powered By 2S Or 3S Lithium Batteries. Up To 25kg.Cm Torque On 12V Voltage, Suitable For Building Quadruped Robots, Hexapod Walkers, Robotic Arms And Other Robotic Projects Requiring Multiple Servos
Adopts High-Reliability Design, Suitable For Industrial Equipments, Robotics, And Other Application Scenarios That Require Angle Or Speed Closed-Loop Control
Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360°, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the lifetime of the servo is effectively extended.
The Speed And Acceleration Values Are Settable To Make The Motion Effect Softer.360°.Installation At Any Position, One Button To Set The Current Position As Middle Position. Easy To Install And Debug. The Servo Will Provide Various Feedback Like Position, Load, Speed,Input Voltage, Current And Temperature In Real Time
