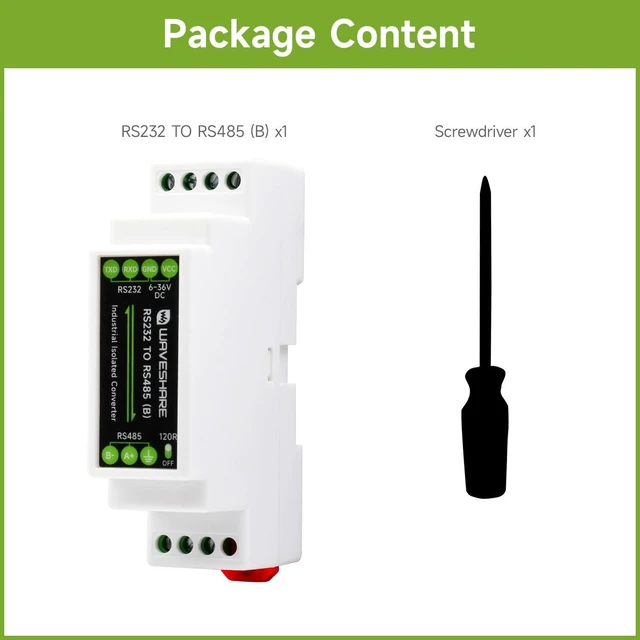

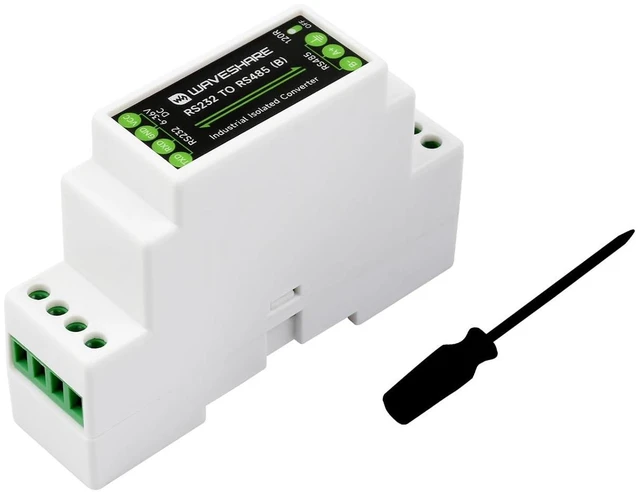

Waveshare RS232 to RS485 Converter B Type Active Digital Isolator, Rail-Mount Support, 600W Non-Surge, Multi-Isolation Protection
- Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong interference-free, low power consumption
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Compatible with RS232/RS485 standard, converting the RS232 signal into balanced differential RS485 signal. Stable transmission at the rate of 300~115200bps
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong interference-free, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, Non-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch. The onboard power supply screw terminal, allows 6V~36V DC wide range input. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong interference-free, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, Non-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock resistance
Integrates optional RS485 output terminal 120R resistor, enabled/disabled via a switch. The onboard power supply screw terminal, allows 6V~36V DC wide range input. Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
