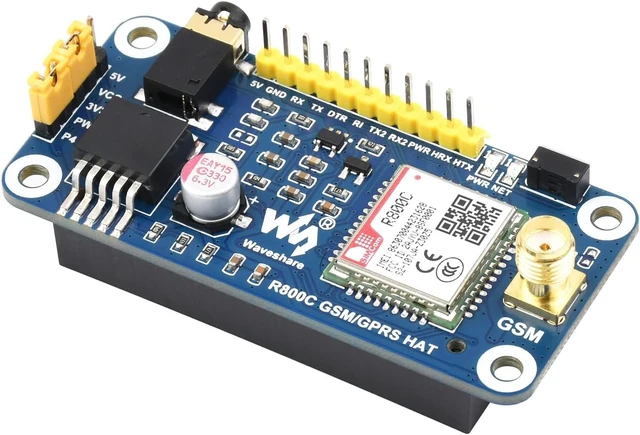

Waveshare R800C GSM/GPRS HAT Compatible with Raspberry Pi and Jetson Nano, Support 2G Communication Phone Call and SMS
- With Standard Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

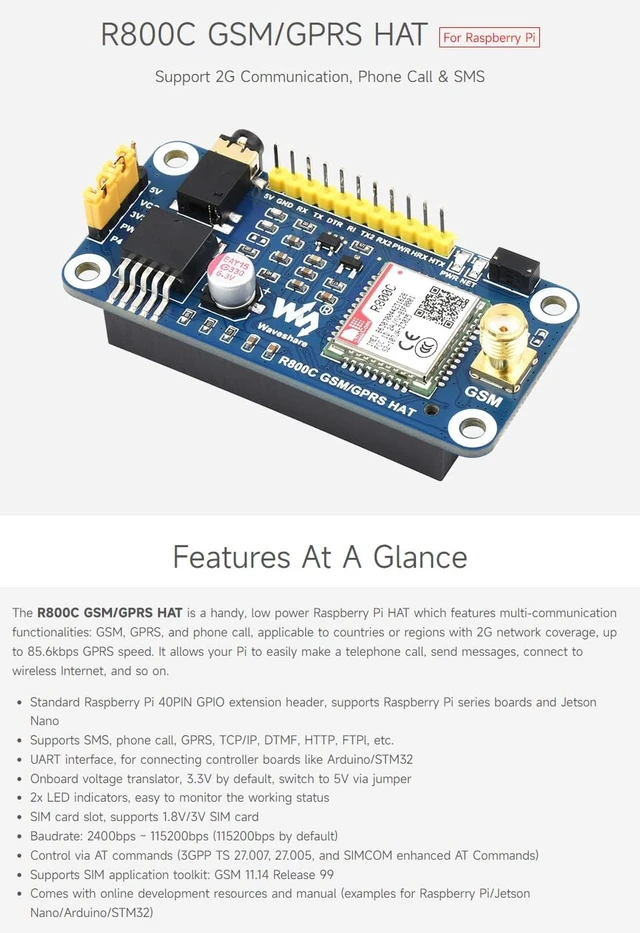

This is a handy, low power HAT for Raspberry Pi. It's applicable to countries or regions with 2G network coverage, up to 85.6kbps GPRS speed

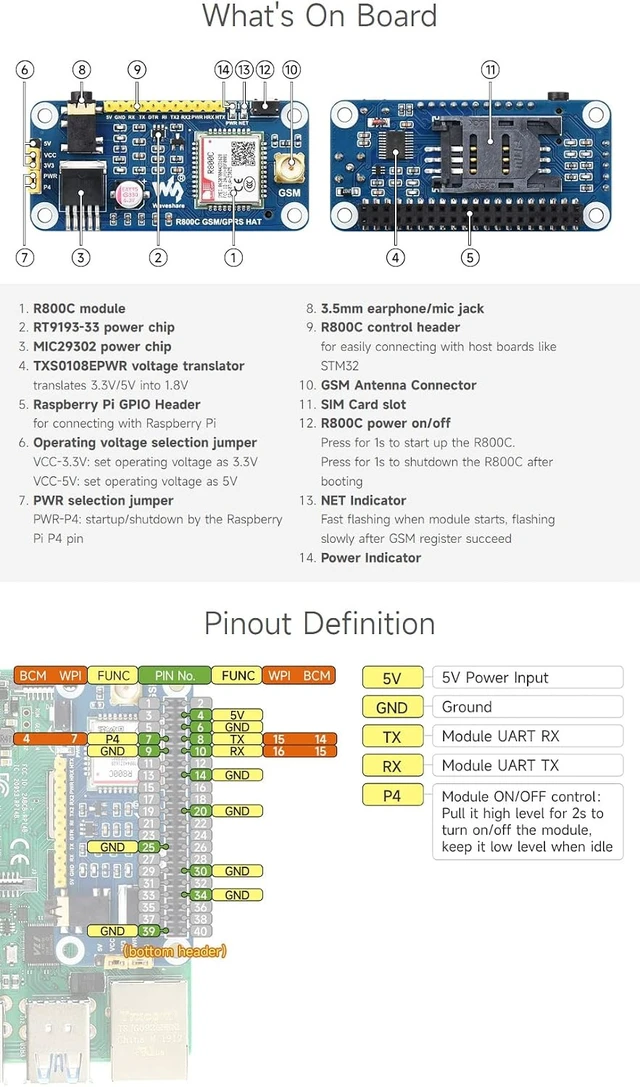

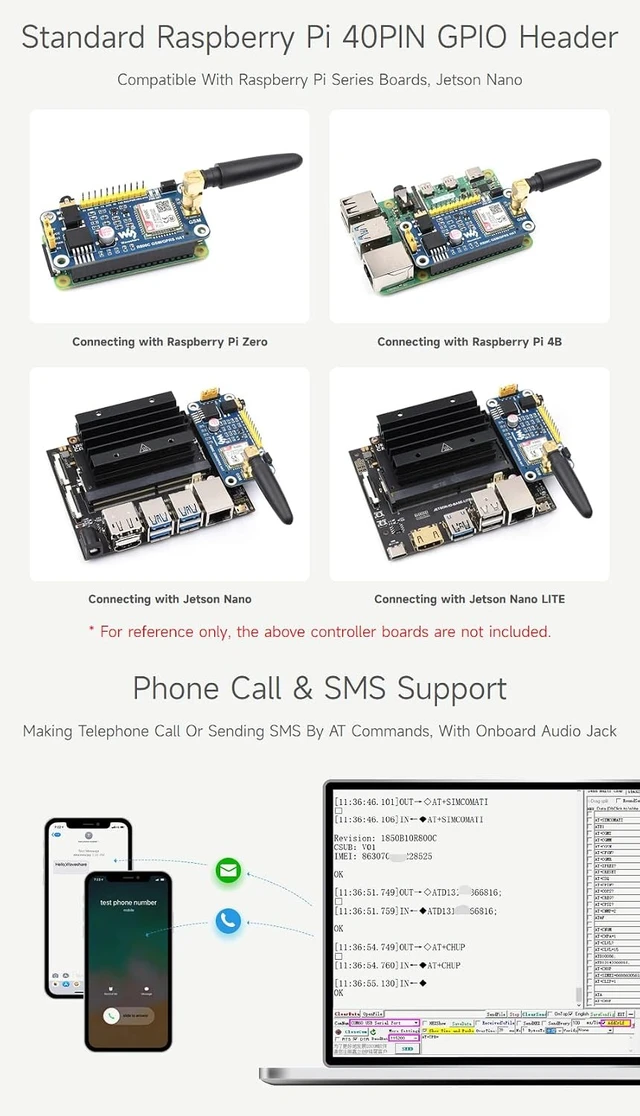

With Standard Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on
Supports SMS/phone call/GPRS/TCP/IP/DTMF/HTTP/FTPl, etc. With UART interface. Onboard voltage translator, 3.3V by default, switch to 5V via jumper. 2xLED indicators, easy to monitor the working status
With SIM card slot, supports 1.8V/3V SIM card. Baudrate: 2400bps~115200bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99. With online user manual, please refer to while using
With Standard Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano. It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, and so on
Supports SMS/phone call/GPRS/TCP/IP/DTMF/HTTP/FTPl, etc. With UART interface. Onboard voltage translator, 3.3V by default, switch to 5V via jumper. 2xLED indicators, easy to monitor the working status
With SIM card slot, supports 1.8V/3V SIM card. Baudrate: 2400bps~115200bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99. With online user manual, please refer to while using
