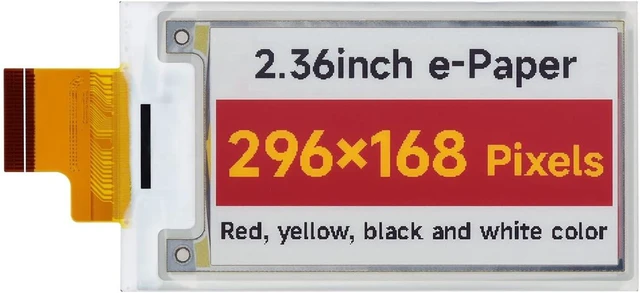

Waveshare 2.36inch E-Paper (G) Raw Display 296×168 Resolution Displays Red/Yellow/Black/White Colors Without Driver Board

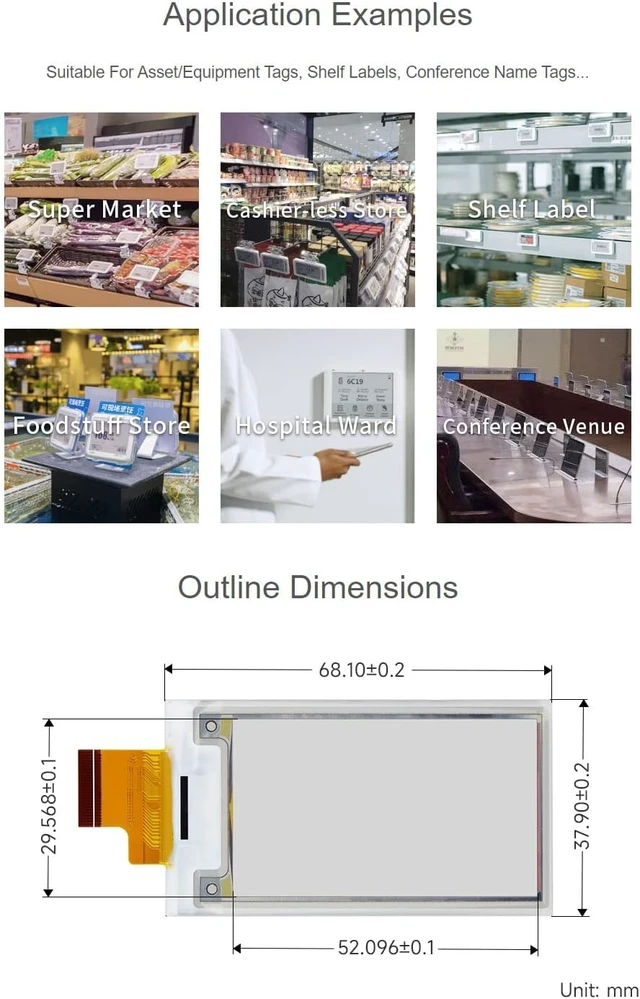

- Doesn't support partial refresh. Suitable for Asset/Equipment Tags, Shelf Labels, Conference Name Tags etc.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

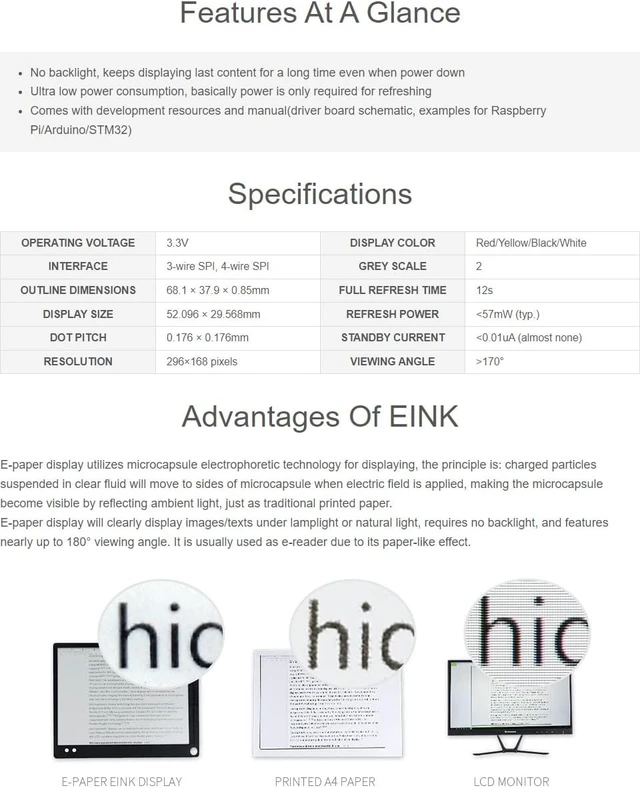

No backlight, keeps displaying last content for a long time even when power down, Ultra low power consumption, basically power is only required for refreshing
Doesn't support partial refresh. Suitable for Asset/Equipment Tags, Shelf Labels, Conference Name Tags etc.
Provide online development resources and manual, and there is also the Refresh Principle and Precautions, please refer to while using

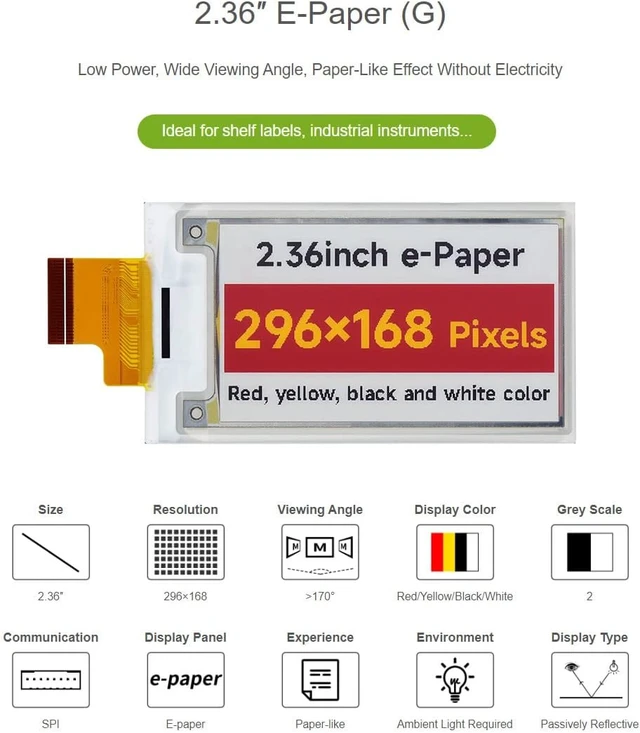

OPERATING VOLTAGE: 3.3V, SPI Interface, 2 Grey Scale, 12s Full Refresh Time, <57mW (typ.) Refresh Power, <0.01uA (almost none) Standby Current
The refresh time and power consumption data will have errors, and the actual effect shall prevail. There will be a flickering effect during the full refresh process, this phenomenon is normal. The power consumption will have error due to the actual use situation
Doesn't support partial refresh. Suitable for Asset/Equipment Tags, Shelf Labels, Conference Name Tags etc.
Provide online development resources and manual, and there is also the Refresh Principle and Precautions, please refer to while using
OPERATING VOLTAGE: 3.3V, SPI Interface, 2 Grey Scale, 12s Full Refresh Time, <57mW (typ.) Refresh Power, <0.01uA (almost none) Standby Current
The refresh time and power consumption data will have errors, and the actual effect shall prevail. There will be a flickering effect during the full refresh process, this phenomenon is normal. The power consumption will have error due to the actual use situation
