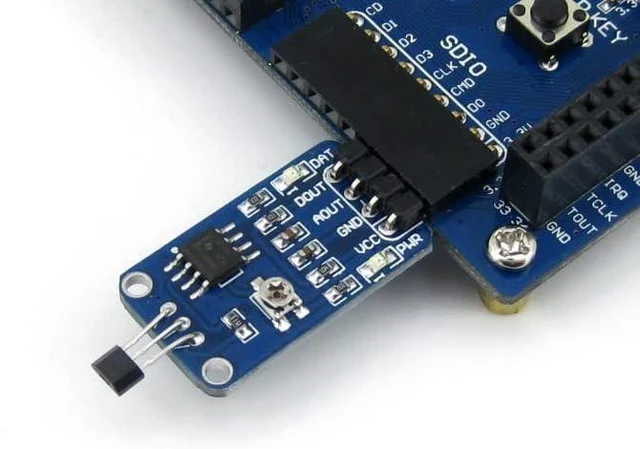

Waveshare 49E Hall Sensor Adjustable Sensitivity Suits for Motor Speed Measurement Object Position Detection etc.
- Power: 2.3V ~ 5.3V, Dimension: 27.0mm * 15.5mm, Mounting holes size: 2.0mm
+
+

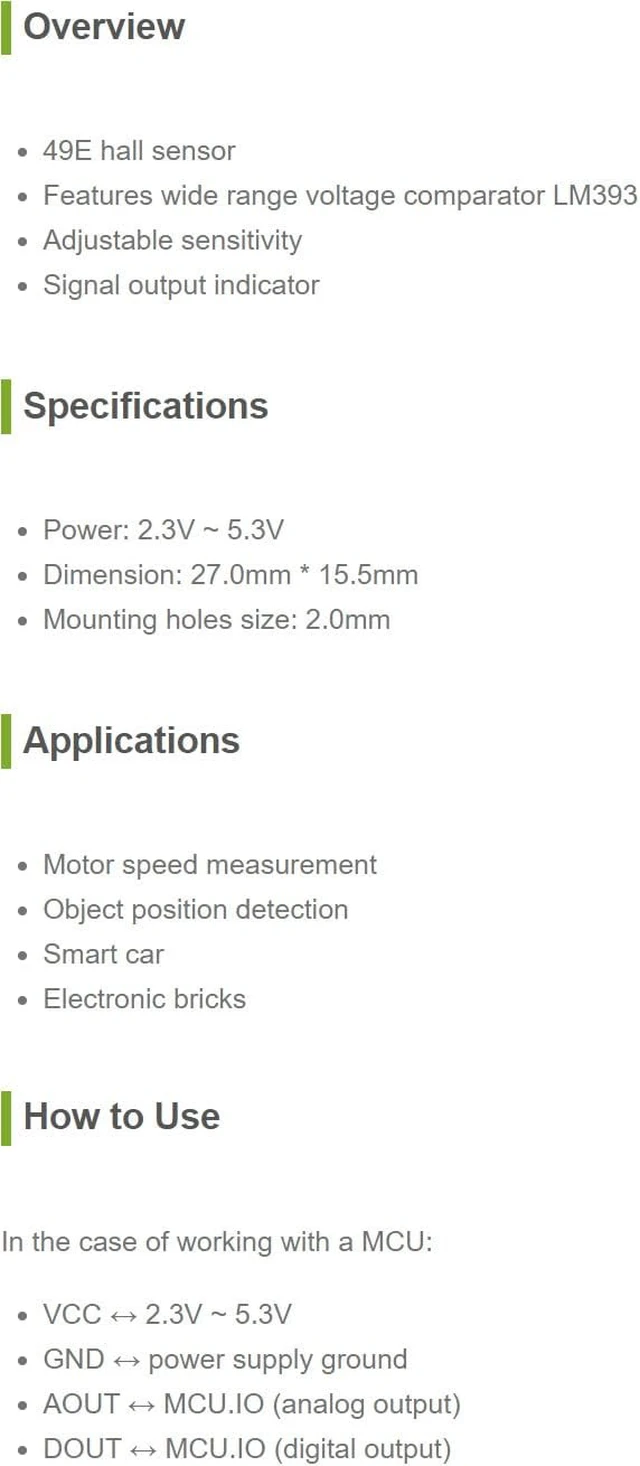

Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
This sensor features wide range voltage comparator LM393, Signal output indicator
Power: 2.3V ~ 5.3V, Dimension: 27.0mm * 15.5mm, Mounting holes size: 2.0mm
Suit for Applications, such as Motor speed measurement, Object position detection, Smart car, Electronic bricks
How to Use: VCC 2.3V ~ 5.3V, GND power supply ground, AOUT MCU.IO (analog output), DOUT MCU.IO (digital output)
Provide online development resources: demo codes, schematic, datasheets, etc. please refer to while using
Power: 2.3V ~ 5.3V, Dimension: 27.0mm * 15.5mm, Mounting holes size: 2.0mm
Suit for Applications, such as Motor speed measurement, Object position detection, Smart car, Electronic bricks
How to Use: VCC 2.3V ~ 5.3V, GND power supply ground, AOUT MCU.IO (analog output), DOUT MCU.IO (digital output)
Provide online development resources: demo codes, schematic, datasheets, etc. please refer to while using
