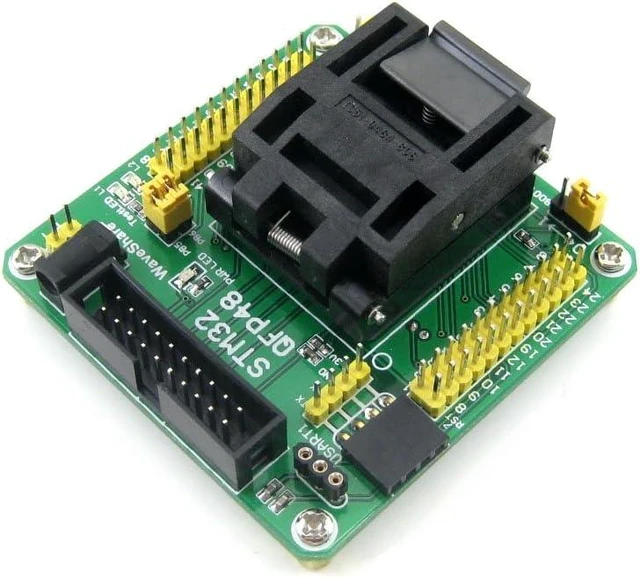

Waveshare STM32 Microcontroller in QFP48(0.5mm Pitch) Package Yamaichi IC Test & Burn-in Socket with A Simple Board
- External crystal can be connected via on board socket for system clock
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

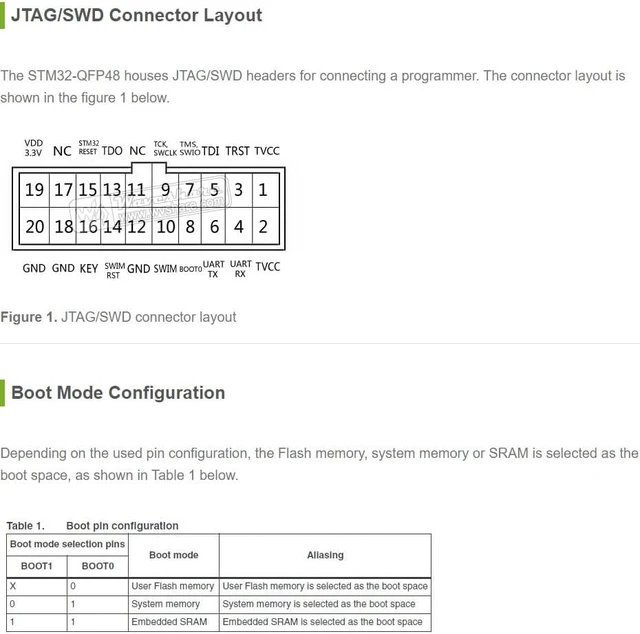

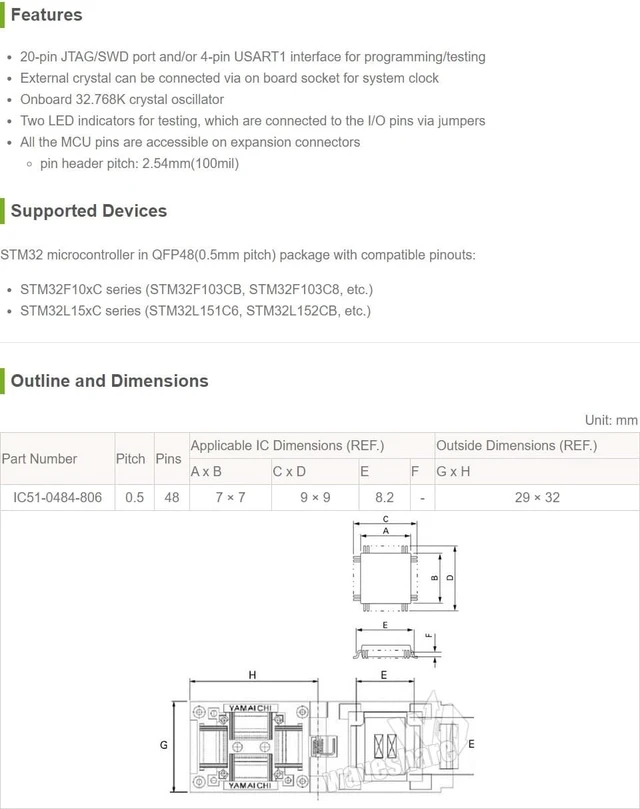

20-pin JTAG/SWD port and/or 4-pin USART1 interface for programming/testing
External crystal can be connected via on board socket for system clock
Onboard 32.768K crystal oscillator
Two LED indicators for testing, which are connected to the I/O pins via jumpers
All the MCU pins are accessible on expansion connectors
External crystal can be connected via on board socket for system clock
Onboard 32.768K crystal oscillator
Two LED indicators for testing, which are connected to the I/O pins via jumpers
All the MCU pins are accessible on expansion connectors
