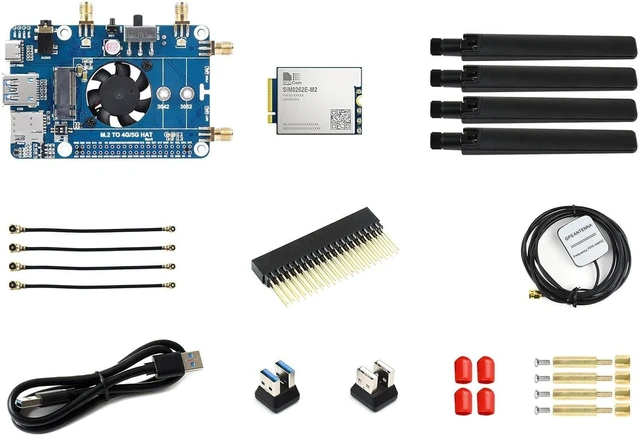

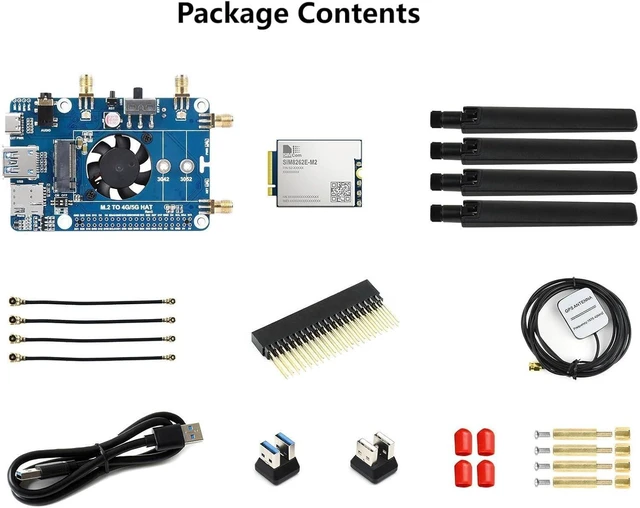

Waveshare SIM8262E-M2 5G HAT Compatible with Raspberry Pi Quad Antennas 5G NSA, Multi-Band, 5G/4G/3G Compatible Without Case
- Operating system support: Windows/Linux/Android. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
Operating system support: Windows/Linux/Android. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas. 2x SIM card slot, dual card single standby, switchable via AT command. Onboard audio jack and audio decoder, allows audio operation like making phone call. High efficiency power supply circuit, up to 3A output current
Operating system support: Windows/Linux/Android. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series. Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply. Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas. 2x SIM card slot, dual card single standby, switchable via AT command. Onboard audio jack and audio decoder, allows audio operation like making phone call. High efficiency power supply circuit, up to 3A output current
