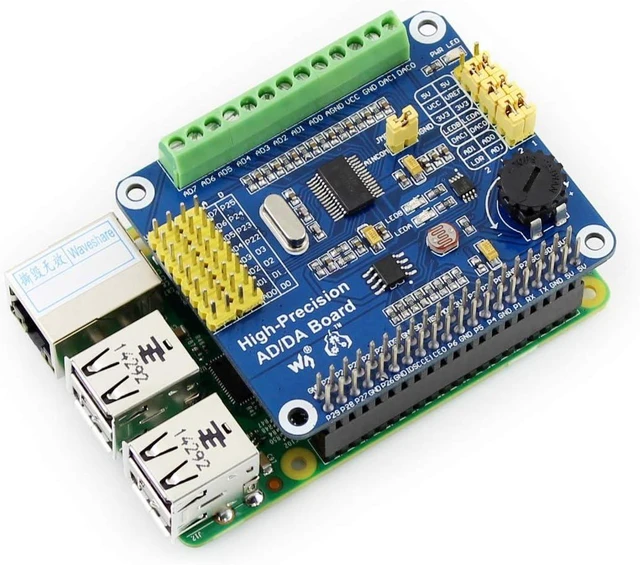

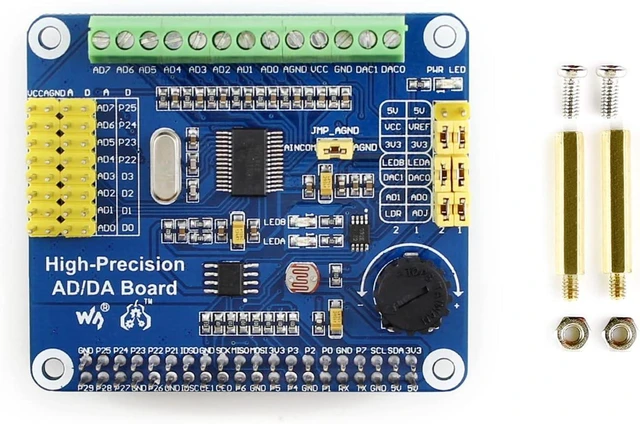

Waveshare High-Precision AD/DA Expansion Board for Raspberry Pi Series Boards/Jetson Nano Development
- Onboard ADS1256 chip, 8-channel 24-bit high-precision ADC (4-channel differential input), 30ksps sampling rate
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
With Raspberry Pi standard 40PIN GPIO extension header, supports Raspberry Pi series boards/Jetson Nano
Onboard ADS1256 chip, 8-channel 24-bit high-precision ADC (4-channel differential input), 30ksps sampling rate
Onboard DAC8552 chip, 2-channel 16-bit high-precision DAC; built-in AD/DA detection circuit, easy to observe experimental phenomena
Onboard input interface via pinheaders, for connecting analog signal(The pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules)
On-board AD/DA input and output interface, can access analog signal and digital signal, convenient for use in various occasions
Onboard ADS1256 chip, 8-channel 24-bit high-precision ADC (4-channel differential input), 30ksps sampling rate
Onboard DAC8552 chip, 2-channel 16-bit high-precision DAC; built-in AD/DA detection circuit, easy to observe experimental phenomena
Onboard input interface via pinheaders, for connecting analog signal(The pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules)
On-board AD/DA input and output interface, can access analog signal and digital signal, convenient for use in various occasions
