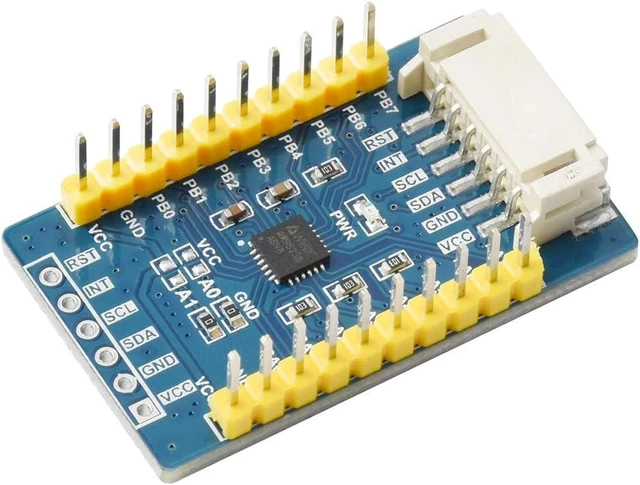

Waveshare AW9523B IO Board Controlled via I2C Bus Expands 16 I/O Pins
- Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

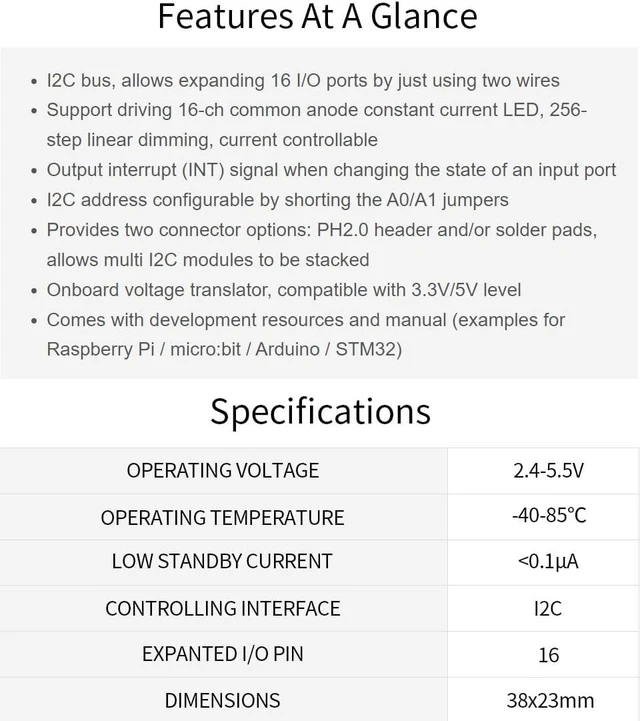

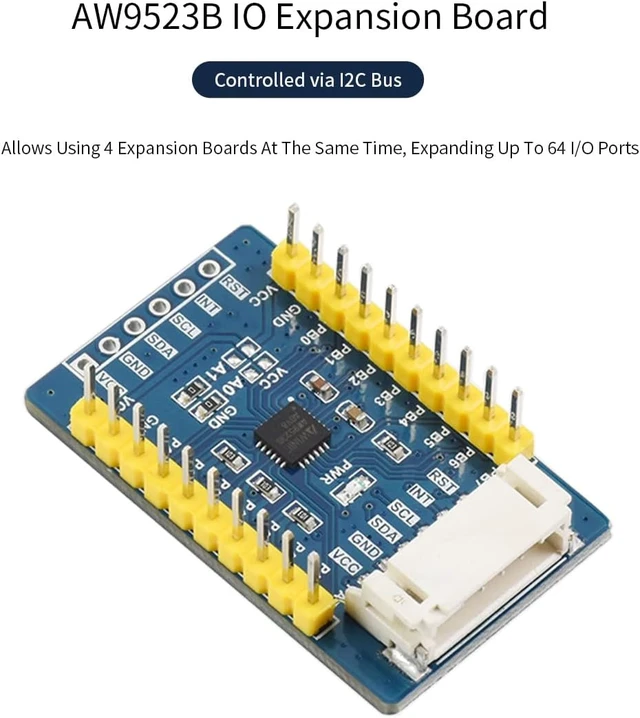

Via I2C bus, allows expanding 16 I/O ports by just using two wires, I2C address configurable by shorting the A0/A1 jumpers
Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
Output interrupt (INT) signal when changing the state of an input port, Onboard voltage translator, compatible with 3.3V/5V level
Provides two connector options: 2.0 header and/or solder pads, allows multi I2C modules to be stacked

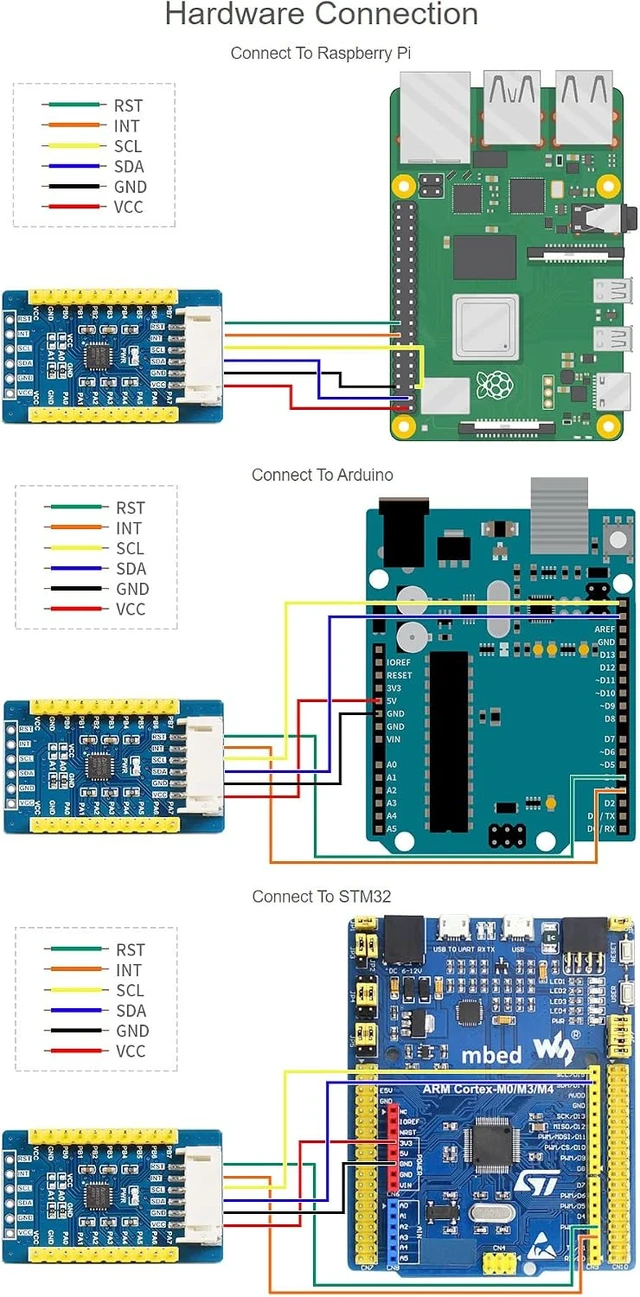

With online development resources and manual (examples for Raspberry Pi/micro:bit//STM32)
Support driving 16-ch common anode constant current LED, 256-step linear dimming, current controllable
Output interrupt (INT) signal when changing the state of an input port, Onboard voltage translator, compatible with 3.3V/5V level
Provides two connector options: 2.0 header and/or solder pads, allows multi I2C modules to be stacked
With online development resources and manual (examples for Raspberry Pi/micro:bit//STM32)
