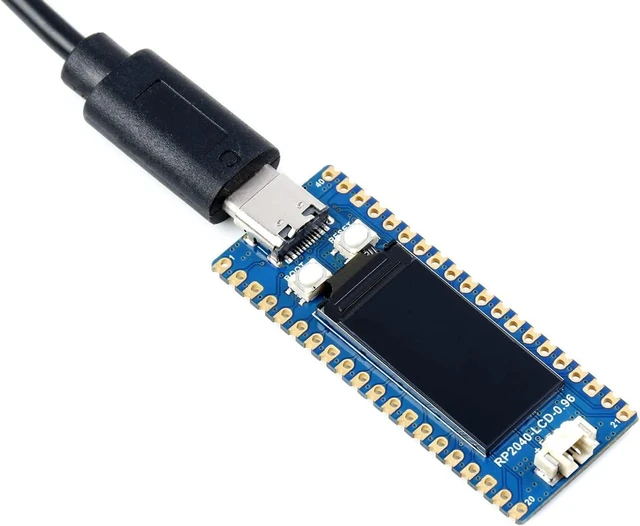

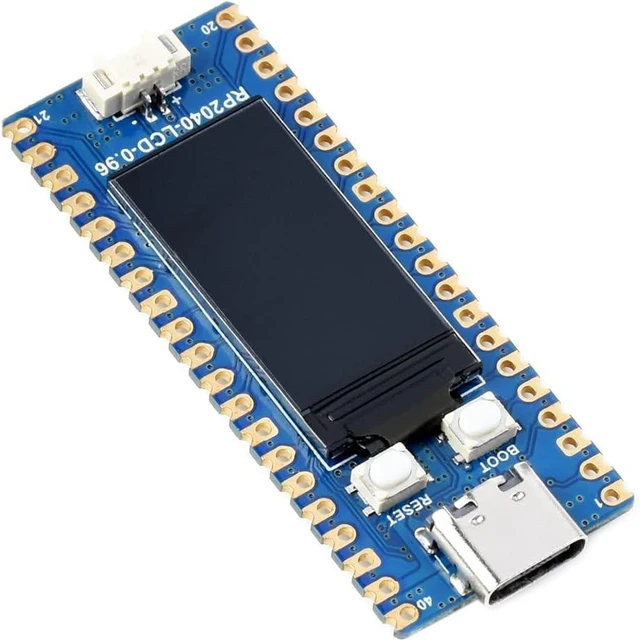

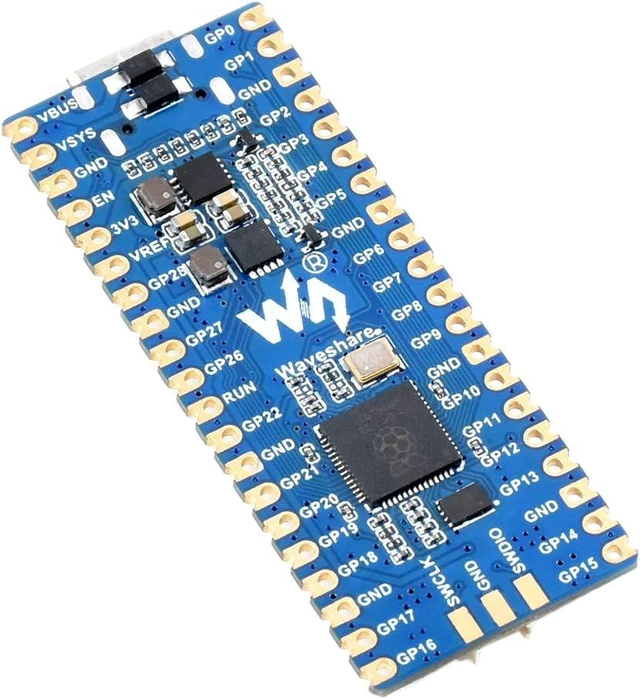

Waveshare Pico-Like MCU Board with 0.96inch LCD Based on Raspberry Pi Microcontroller RP2040

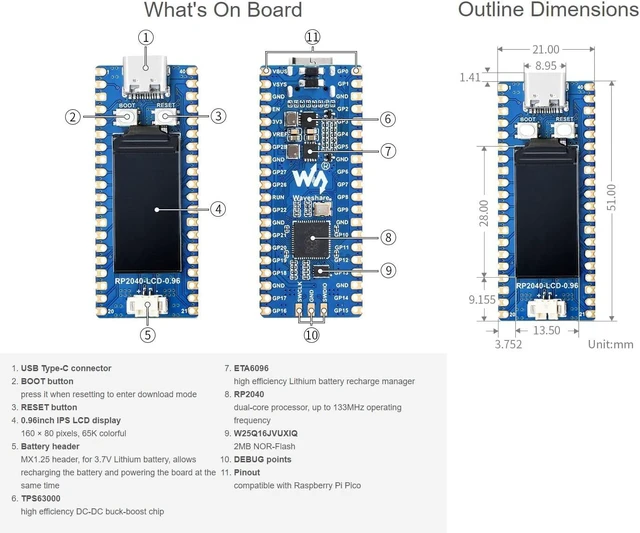

- With 0.96inch 160×80 pixels 65K colorful IPS LCD display, Onboard Lithium battery recharge/discharge header, DC-DC chip TPS63000, 26 × multi-function GPIO pins, 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz, 264KB of SRAM, and 2MB of on-board Flash memory, USB-C connector, keeps it up to date, easier to use

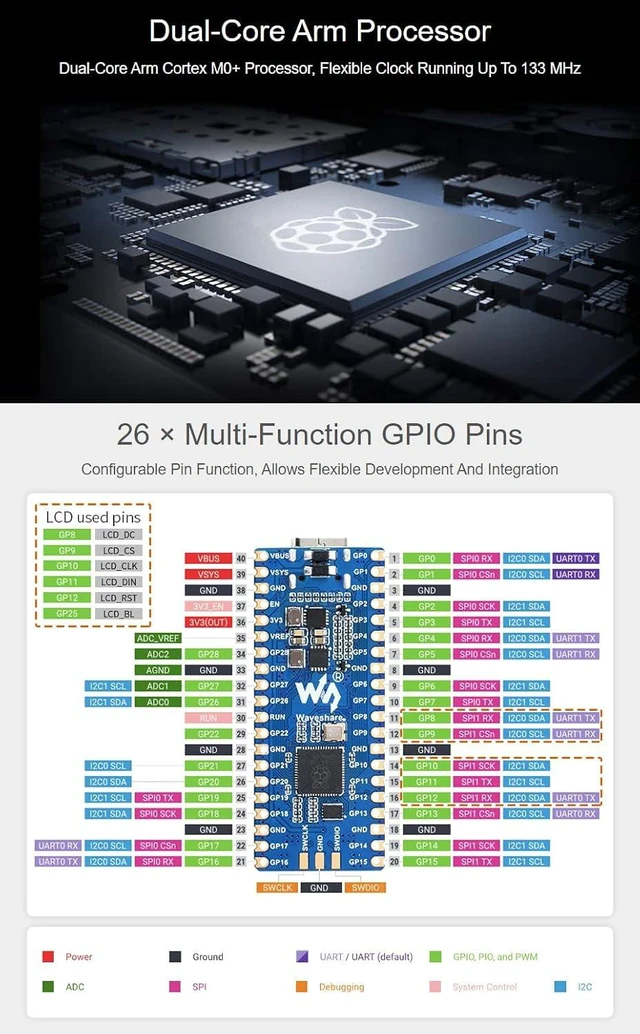

With 0.96inch 160×80 pixels 65K colorful IPS LCD display, Onboard Lithium battery recharge/discharge header, DC-DC chip TPS63000, 26 × multi-function GPIO pins, 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
USB 1.1 with device and host support, Low-power sleep and dormant modes, Drag-and-drop programming using mass storage over USB, Temperature sensor
Accurate clock and timer on-chip, Accelerated floating-point libraries on-chip, 8 × Programmable I/O (PIO) state machines for custom peripheral support
For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly. Please refer to the online user manual while using
With 0.96inch 160×80 pixels 65K colorful IPS LCD display, Onboard Lithium battery recharge/discharge header, DC-DC chip TPS63000, 26 × multi-function GPIO pins, 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
USB 1.1 with device and host support, Low-power sleep and dormant modes, Drag-and-drop programming using mass storage over USB, Temperature sensor
Accurate clock and timer on-chip, Accelerated floating-point libraries on-chip, 8 × Programmable I/O (PIO) state machines for custom peripheral support
For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly. Please refer to the online user manual while using
