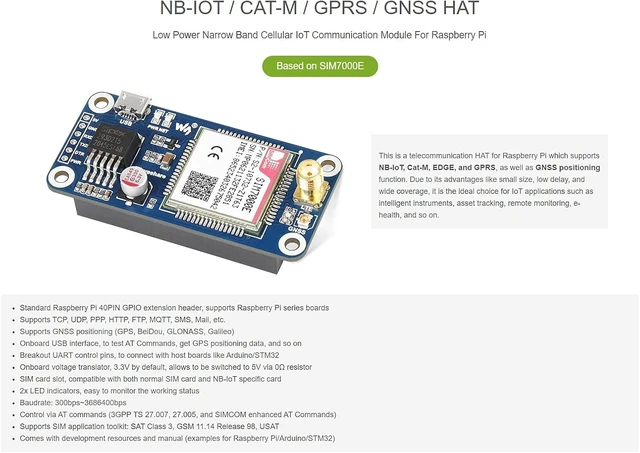

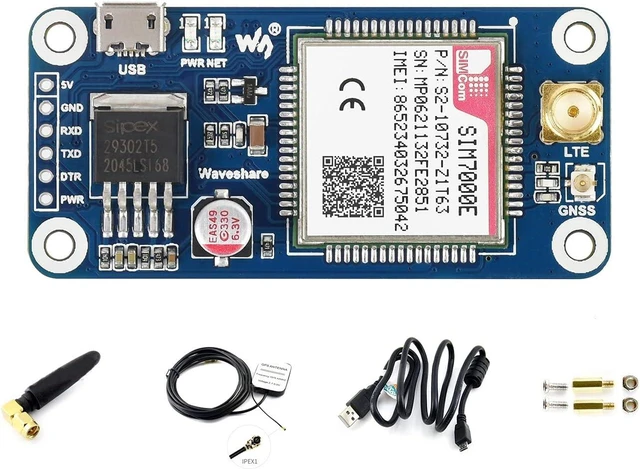

Waveshare NB-IoT/Cat-M/Edge/GPRS Module Compatible with Raspberry Pi Series Boards Based on SIM7000E

This telecommunication Module supports NB-IoT, Cat-M, EDGE, and GPRS, as well as GNSS positioning function for Europe, Africa, Australia, Southeast Asia. Due to its small size, low delay, and wide coverage, it's ideal for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on

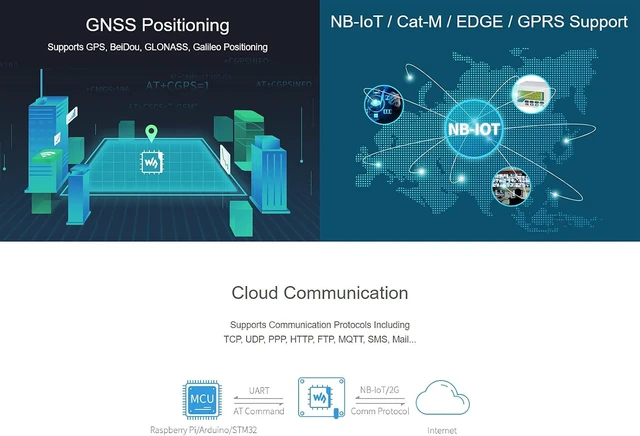

Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc. Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo); Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT

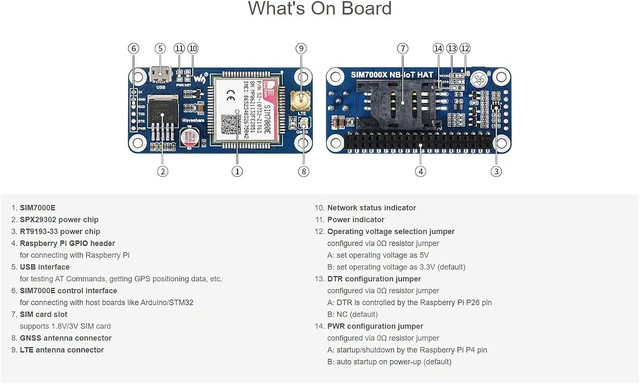

Onboard USB interface, to test AT Commands, get GPS positioning data, and so on; With SIM card slot, compatible with both normal SIM card and NB-IoT specific card; 2x LED indicators to monitor the working status; Breakout UART control pins, to connect with /STM32 host boards
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor; Baudrate: 300bps~3686400bps; Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Provide development resources and manual (examples for Raspberry Pi//STM32), please refer to the online user manual while using
