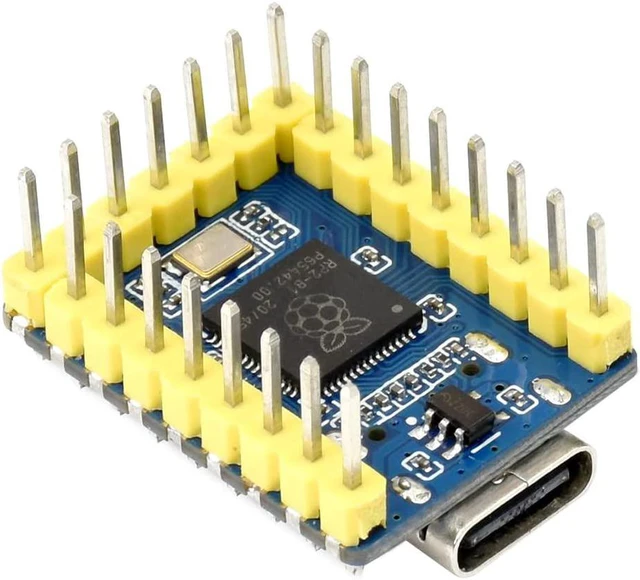

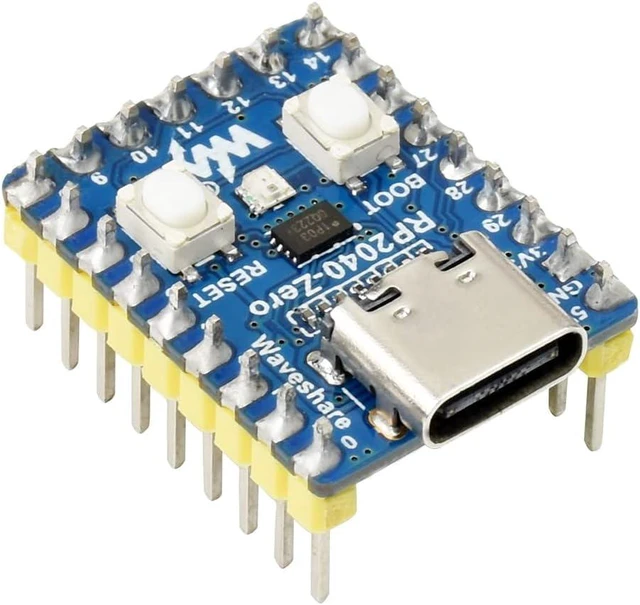

Waveshare Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040 with Pre-soldered Header
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz. 264KB of SRAM, and 2MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
This is a M version with pre-soldered header, a pico-like MCU board based on Raspberry Pi RP2040
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz. 264KB of SRAM, and 2MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use
Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB. 29 × multi-function GPIO pins (20× via edge pinout, others via solder points). 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz. 264KB of SRAM, and 2MB of on-board Flash memory. USB-C connector, keeps it up to date, easier to use
Castellated module allows soldering direct to carrier boards. USB 1.1 with device and host support. Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB. 29 × multi-function GPIO pins (20× via edge pinout, others via solder points). 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip. 8 × Programmable I/O (PIO) state machines for custom peripheral support
