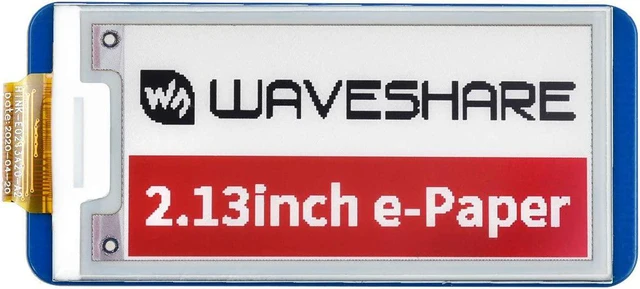

Waveshare E-Paper Display Module in 2.13inch for Raspberry Pi Supports Red/Black/White Three-Color Display

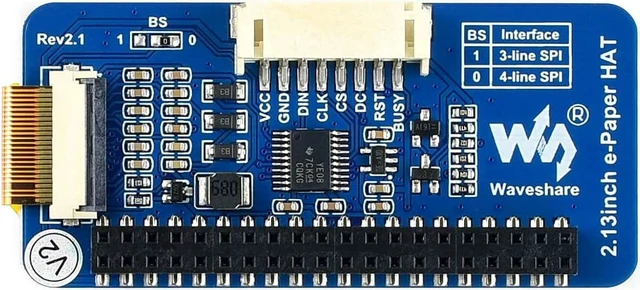

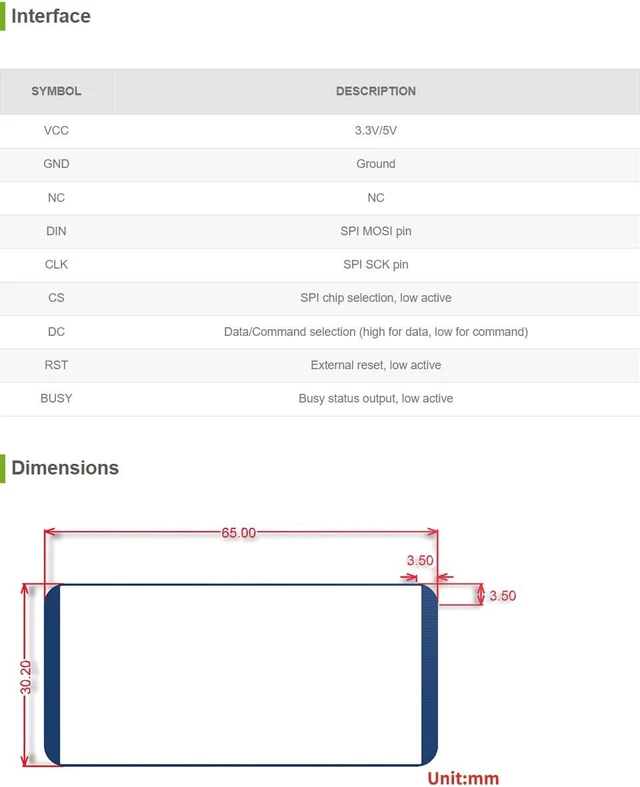

- Onboard voltage translator, compatible with 3.3V/5V MCUs. 3-wire SPI, 4-wire SPI Interface, 65mm × 30.2mm Outline dimension, 23.71mm × 48.55mm Display size.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

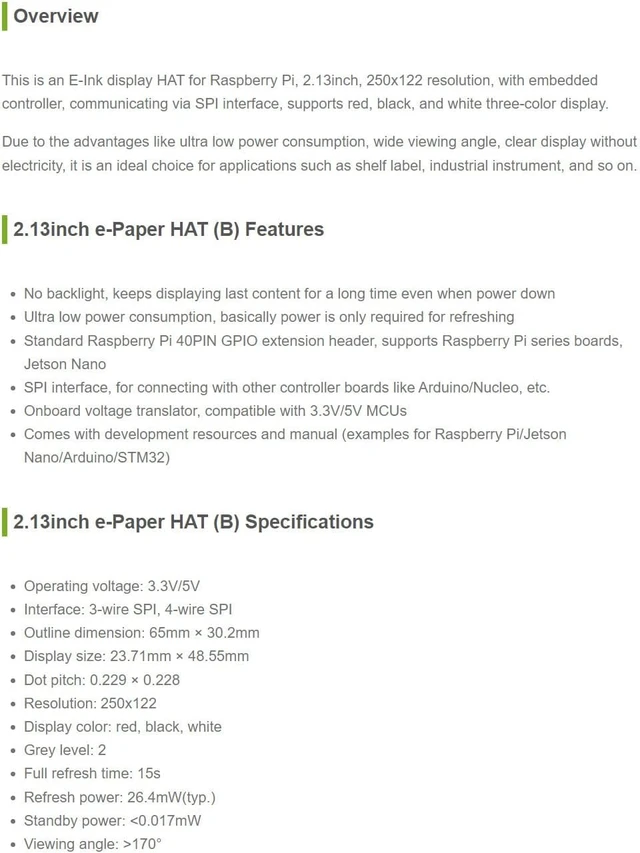

212x104 Resolution, Wide viewing angle, Clear display without electricity, An ideal choice for shelf label, industrial instrument, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs. 3-wire SPI, 4-wire SPI Interface, 65mm × 30.2mm Outline dimension, 23.71mm × 48.55mm Display size.
Doesn't support partial refresh. No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.

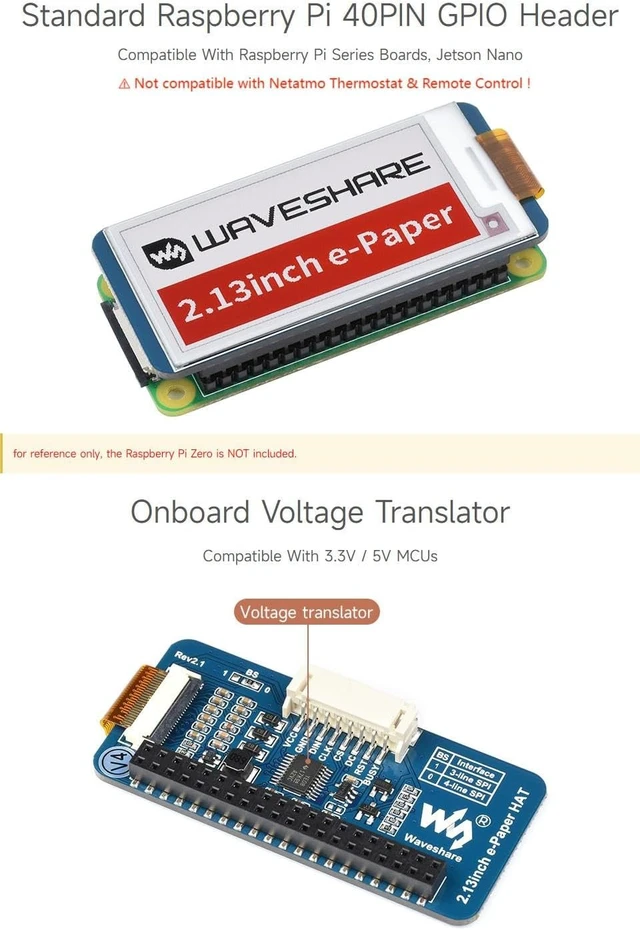

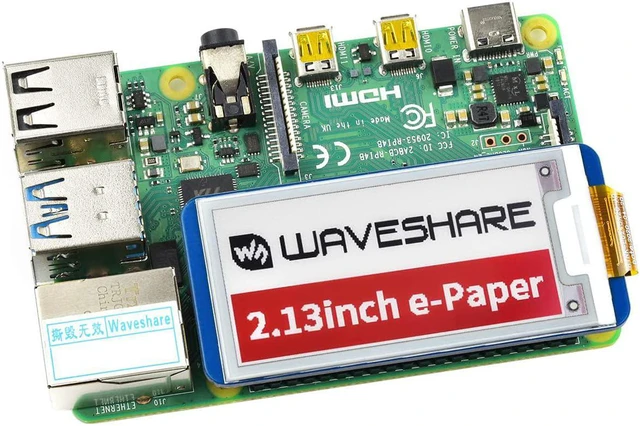

Onboard Standard Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano. With SPI interface, for being compatible with etc. other controller boards.
With online development resources, manual (examples for Raspberry Pi/Jetson Nano etc.) and precautions for e-paper screen refresh, Please refer to these while using.
Onboard voltage translator, compatible with 3.3V/5V MCUs. 3-wire SPI, 4-wire SPI Interface, 65mm × 30.2mm Outline dimension, 23.71mm × 48.55mm Display size.
Doesn't support partial refresh. No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.
Onboard Standard Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano. With SPI interface, for being compatible with etc. other controller boards.
With online development resources, manual (examples for Raspberry Pi/Jetson Nano etc.) and precautions for e-paper screen refresh, Please refer to these while using.
