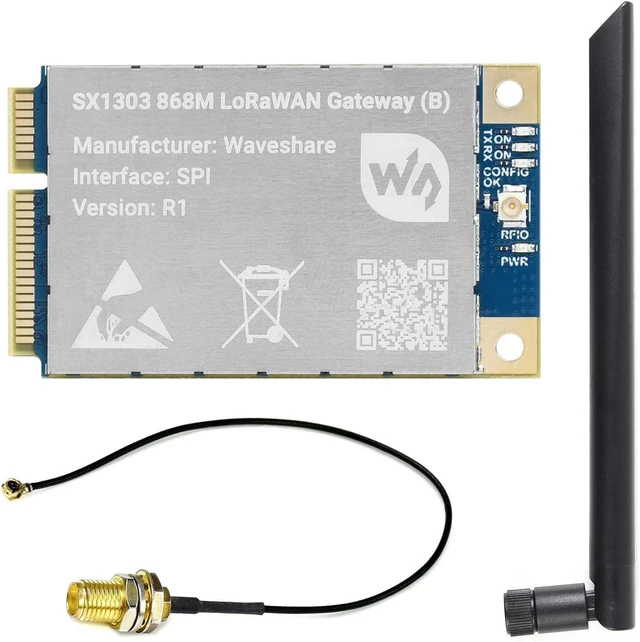

Waveshare SX1303 868M LoRaWAN Gateway Module, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, Mini-PCIe Socket Long Range Transmission Large Capacity Multi-Band Support
- Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

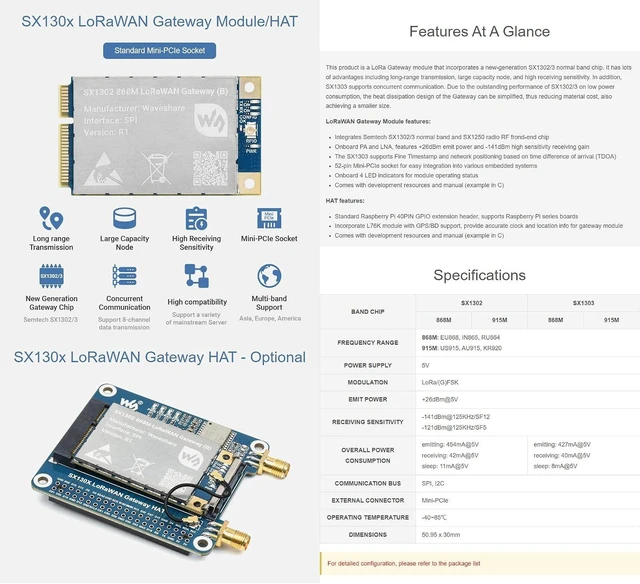

Integrates Semtech SX1302/3 normal band and SX1250 radio RF frond-end chip
Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
The SX1303 supports Fine Timestamp and network positioning based on time difference of arrival (TDOA)

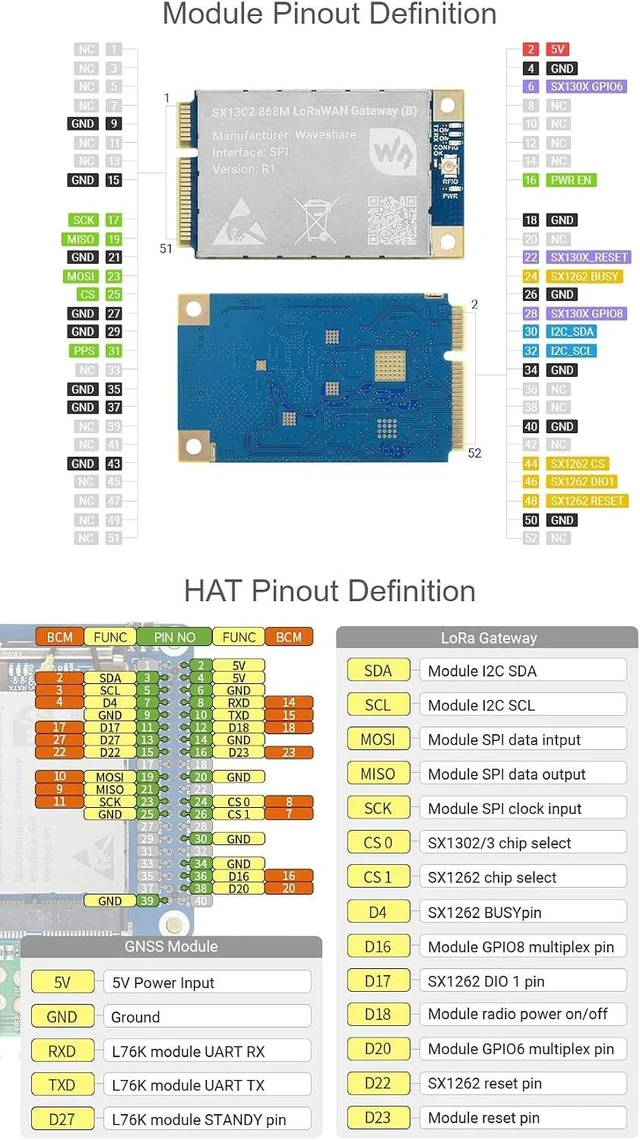

52-pin Mini-PCIe socket for easy integration into various embedded systems
Onboard 4 LED indicators for module operating status. Provide online user manual, please check the manual carefully before using (example in C)
Onboard PA and LNA, features +26dBm emit power and -141dBm high sensitivity receiving gain
The SX1303 supports Fine Timestamp and network positioning based on time difference of arrival (TDOA)
52-pin Mini-PCIe socket for easy integration into various embedded systems
Onboard 4 LED indicators for module operating status. Provide online user manual, please check the manual carefully before using (example in C)
