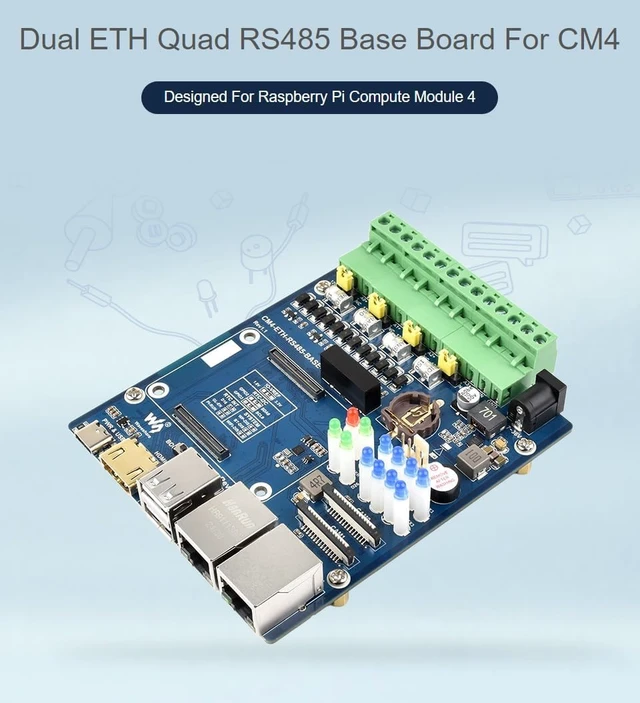

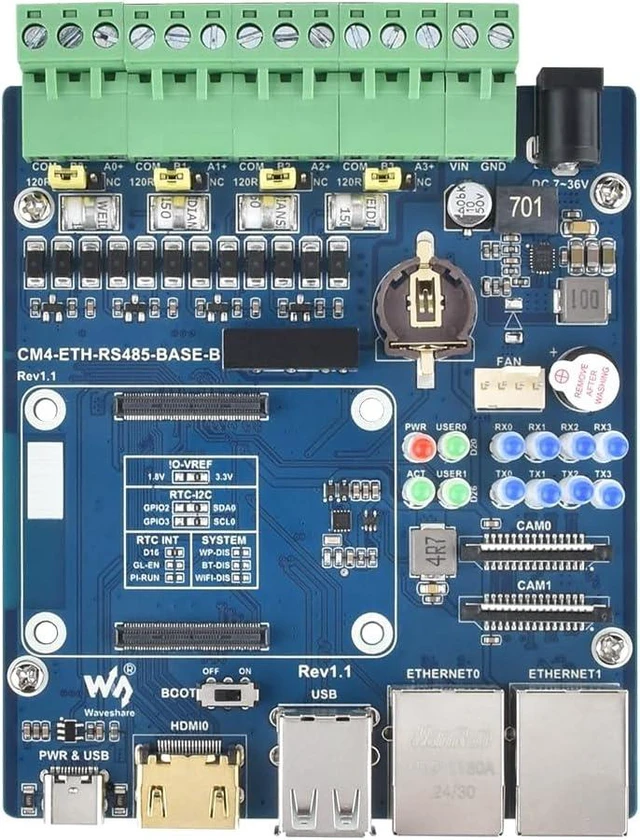

Waveshare Dual ETH Quad RS485 Base Board (B) for Raspberry Pi Compute Module 4 Giga-bit Ethernet 4CH Isolated RS485 USB2.0

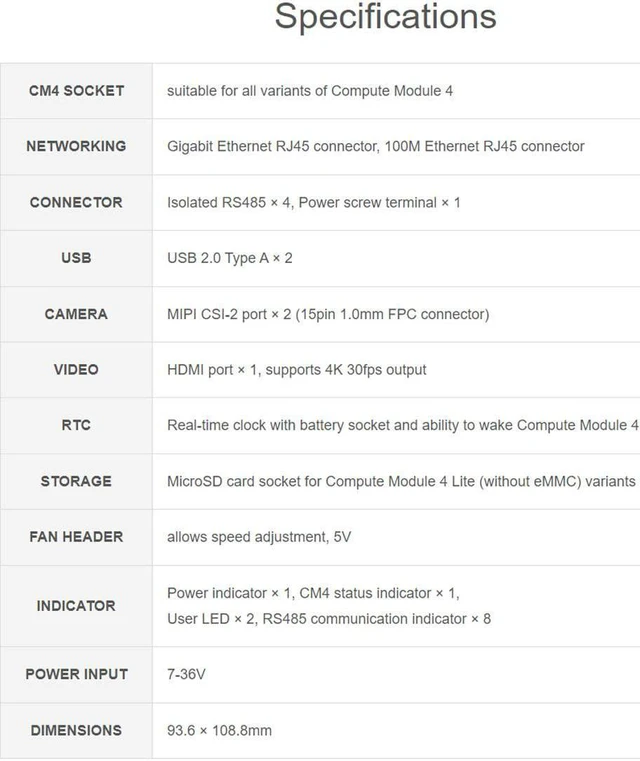

- Features 4 isolated RS485, 2 USB 2.0 Type-A, dual MIPI CSI-2, and 4K@30fps HDMI interfaces.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Fully compatible with all Compute Module 4 variants, with Giga-bit and 100M Ethernet RJ45 ports.

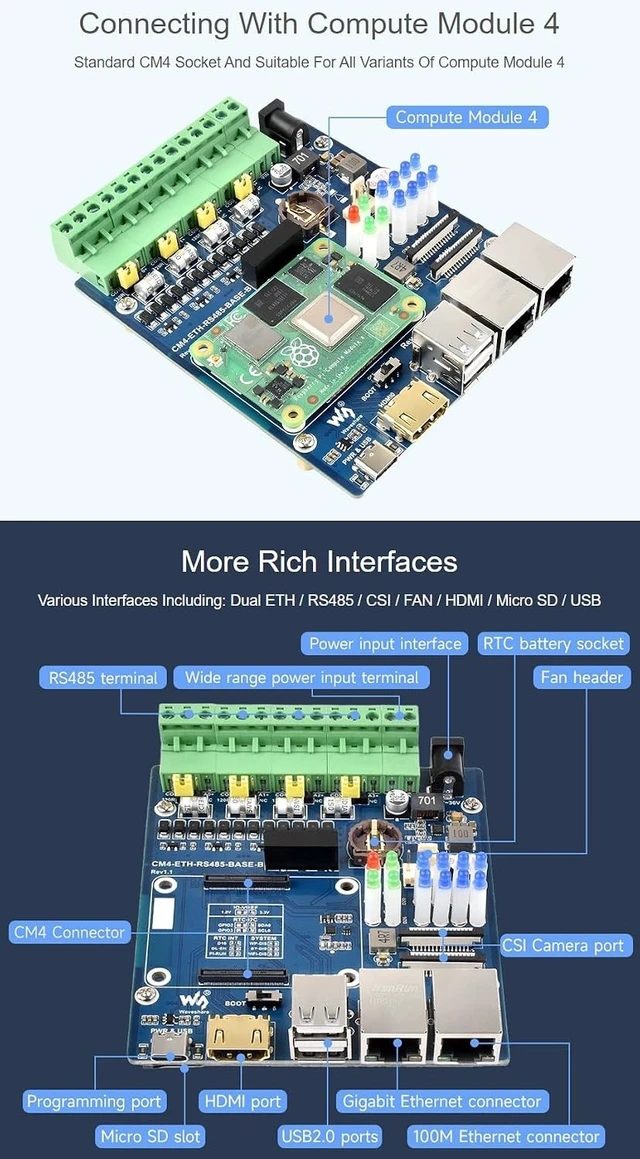

Features 4 isolated RS485, 2 USB 2.0 Type-A, dual MIPI CSI-2, and 4K@30fps HDMI interfaces.
Includes RTC with wake-up support and MicroSD socket for CM4 Lite variants.
Offers adjustable-speed 5V fan header and comprehensive status indicators.

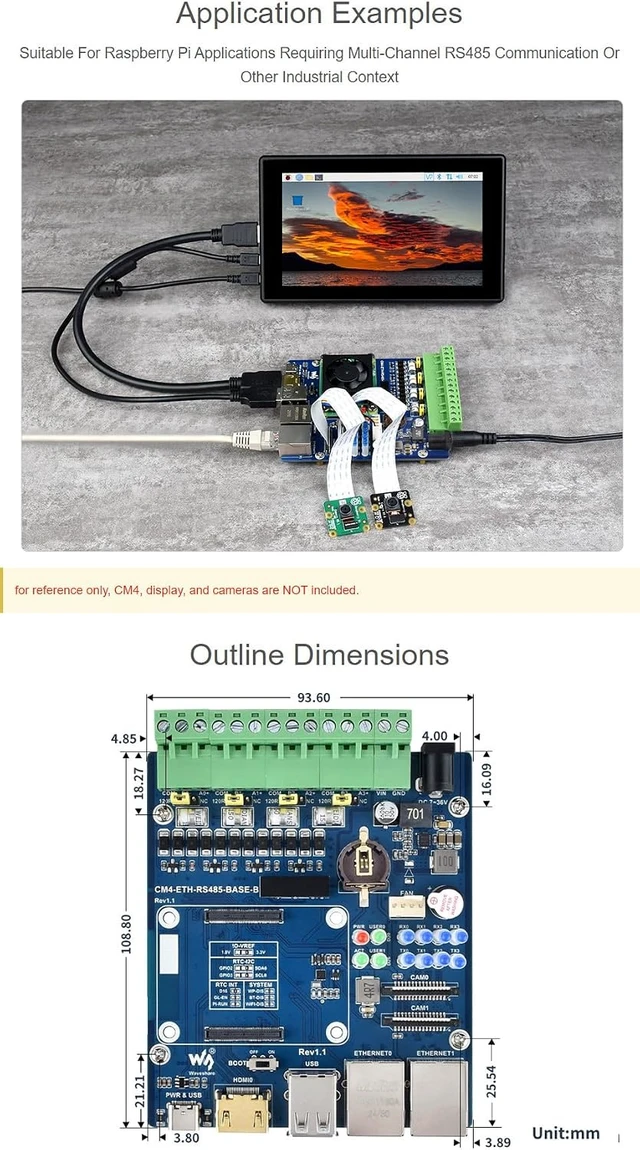

Supports 7-36V wide-range power input, with compact 93.6 × 108.8mm dimensions.
Features 4 isolated RS485, 2 USB 2.0 Type-A, dual MIPI CSI-2, and 4K@30fps HDMI interfaces.
Includes RTC with wake-up support and MicroSD socket for CM4 Lite variants.
Offers adjustable-speed 5V fan header and comprehensive status indicators.
Supports 7-36V wide-range power input, with compact 93.6 × 108.8mm dimensions.
