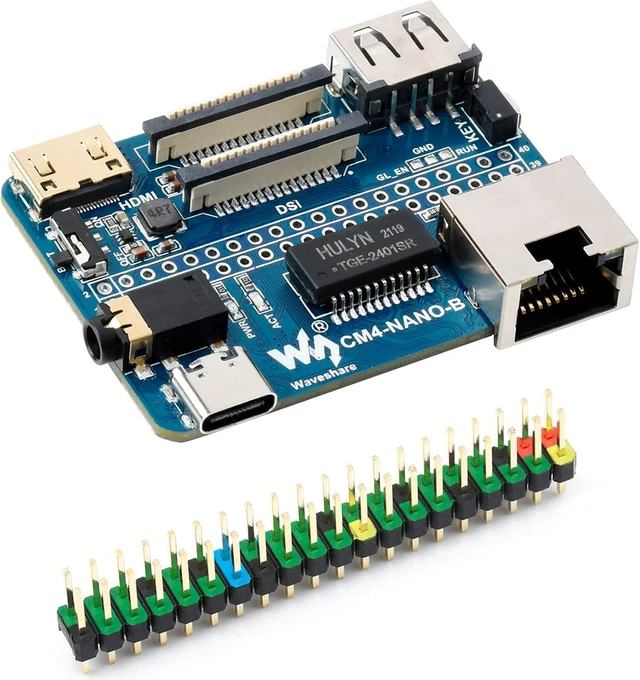

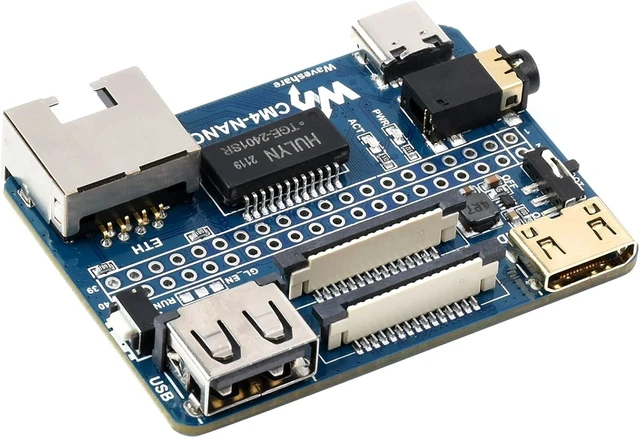

waveshare Nano Base Board (B) for Compute Module 4 Lite/eMMC,with Raspberry Pi 40PIN GPIO Header,Giga-bit Ethernet RJ45,MIPI CSI-2 Port Connector 3.5mm Jack Audio

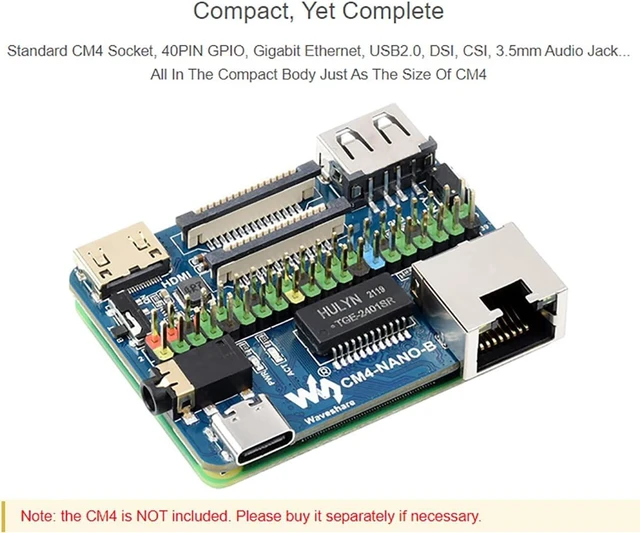

- Standard CM4 Socket, 40PIN GPIO, Giga-bit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack,ect.All in the compact body just as the size of CM4
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

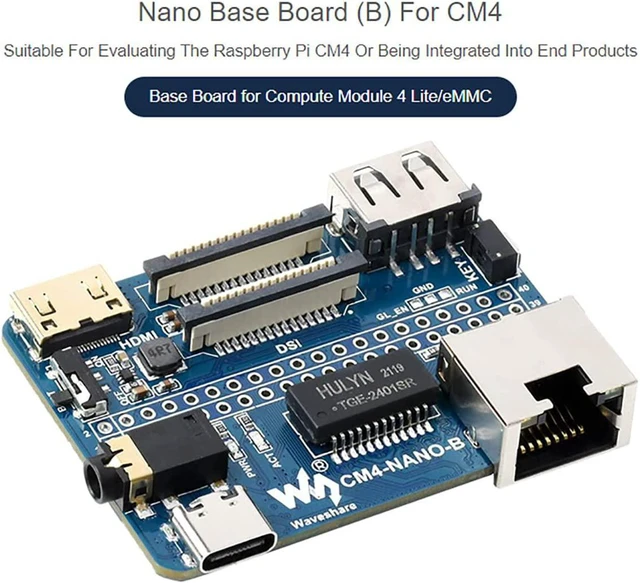

CM4-NANO-B (Raspberry Pi CM4 Ultra Mini Expansion Board Type B) is a baseboard that can be used with Raspberry Pi Compute Module 4 Lite/eMMC. Although it is tiny, it can bring out the interface of Raspberry Pi Compute Module 4.
Standard CM4 Socket, 40PIN GPIO, Giga-bit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack,ect.All in the compact body just as the size of CM4

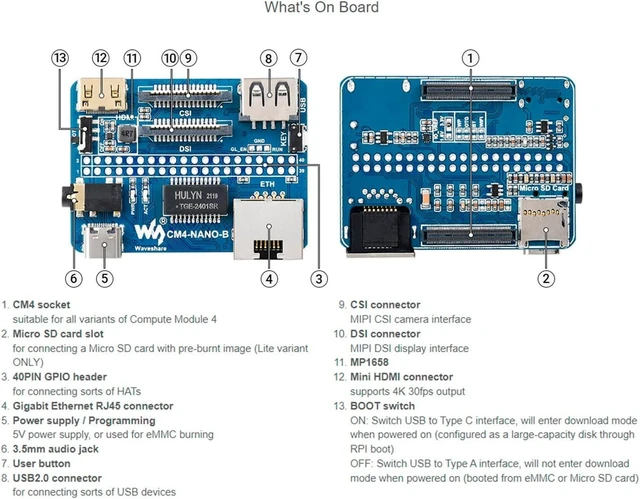

Networking:Giga-bit Ethernet RJ45 connector. Connector:Raspberry Pi 40PIN GPIO header x 1. USB:USB 2.0 Type A connector x 1. Display:MIPI DSI port x 1 (15pin 1.0mm FPC connector). Camera:MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector). Video:Mini HDMI port x 1, supports 4K 30fps output.

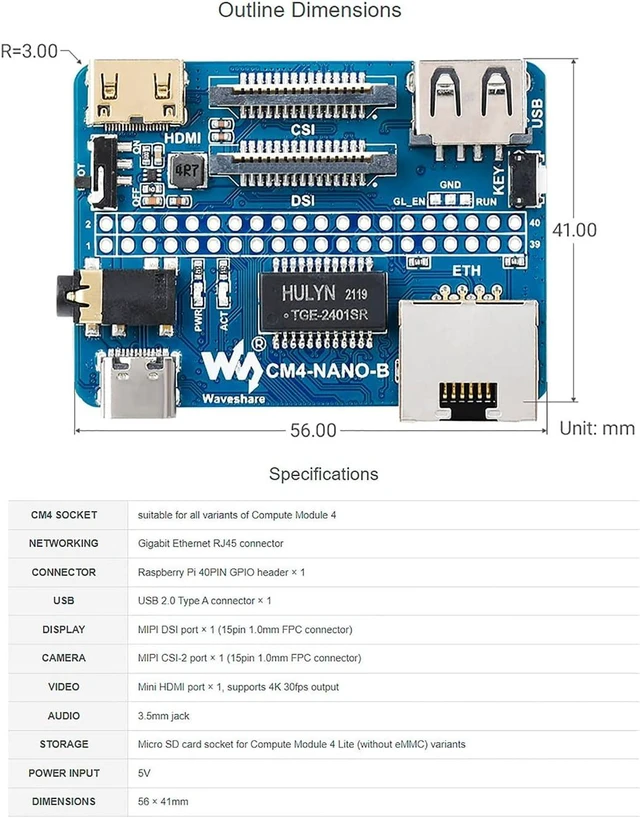

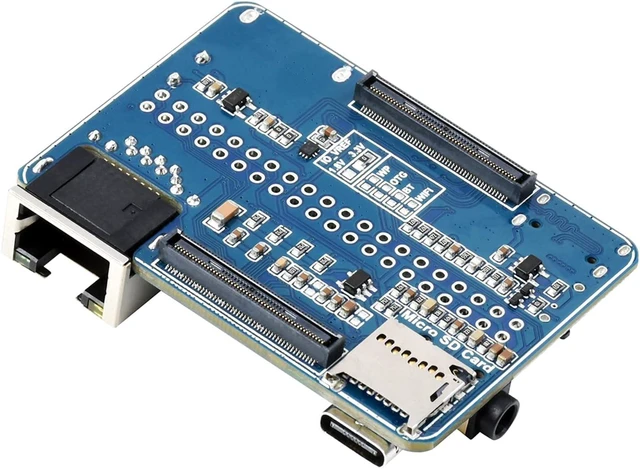

Audio:3.5mm jack. Storage:Micro SD card socket for Compute Module 4 Lite (without eMMC) variants. Power input:5V. Dimensions : 56x 41mm.
Note: DO NOT hot-plug any devices except the USB and HDMI. The USB2.0, CSI, DSI and Audio interfaces are disabled by default and need to be enabled by the user.
Standard CM4 Socket, 40PIN GPIO, Giga-bit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack,ect.All in the compact body just as the size of CM4
Networking:Giga-bit Ethernet RJ45 connector. Connector:Raspberry Pi 40PIN GPIO header x 1. USB:USB 2.0 Type A connector x 1. Display:MIPI DSI port x 1 (15pin 1.0mm FPC connector). Camera:MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector). Video:Mini HDMI port x 1, supports 4K 30fps output.
Audio:3.5mm jack. Storage:Micro SD card socket for Compute Module 4 Lite (without eMMC) variants. Power input:5V. Dimensions : 56x 41mm.
Note: DO NOT hot-plug any devices except the USB and HDMI. The USB2.0, CSI, DSI and Audio interfaces are disabled by default and need to be enabled by the user.
