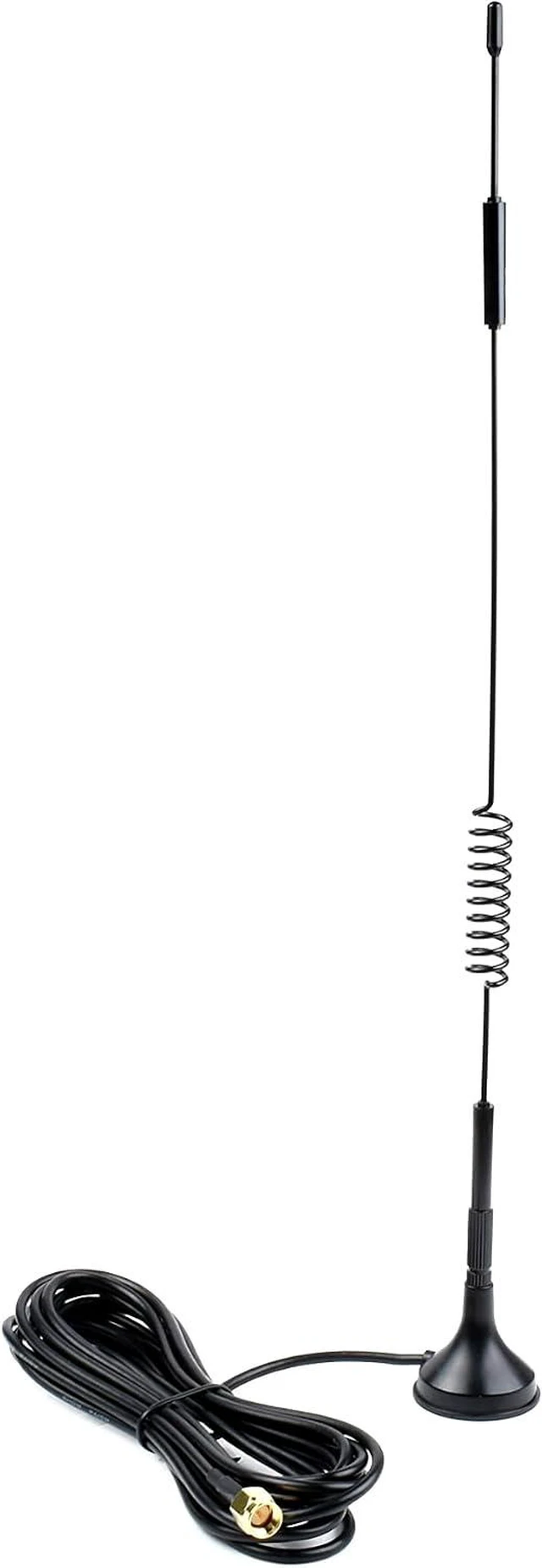

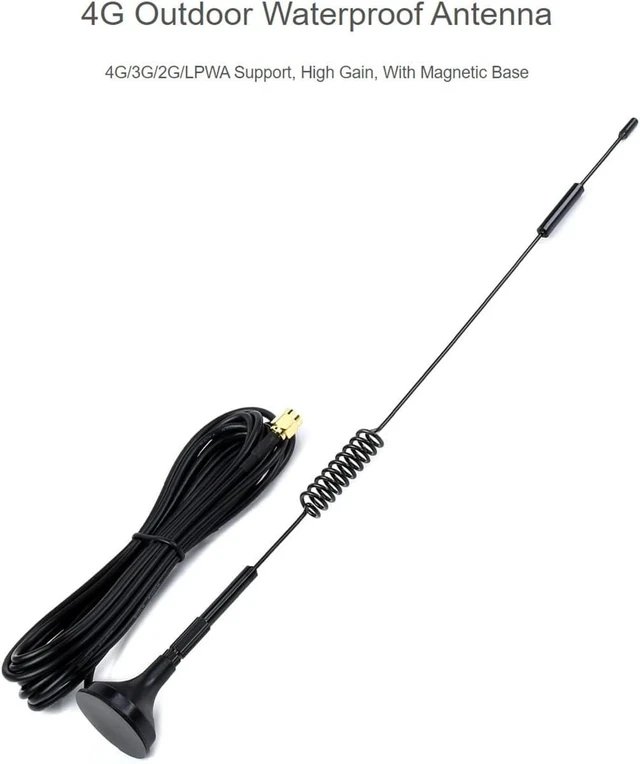

Waveshare 4G High Gain SMA Antenna for Outdoor Condition Supports 4G/3G/2G/LPWA Waterproof and Magnetic Base
- BAND WIDTH 2300 MHz; OUTPUT IMPEDANCE 50ohm; VSWR 1.5
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

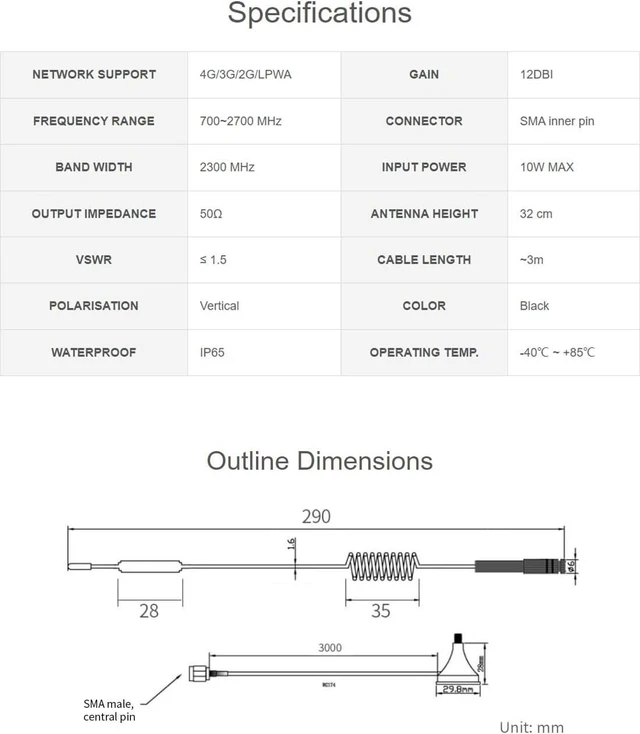

NETWORK SUPPORT 4G/3G/2G/LPWA; FREQUENCY RANGE: 700~2700 MHz
BAND WIDTH 2300 MHz; OUTPUT IMPEDANCE 50ohm; VSWR 1.5
POLARISATION Vertical; WATERPROOF IP65; GAIN 12DBI
CONNECTOR SMA inner pin; INPUT POWER 10W MAX
ANTENNA HEIGHT 32 cm; CABLE LENGTH ~3m; COLOR Black; OPERATING TEMP. -40 ~ +85
BAND WIDTH 2300 MHz; OUTPUT IMPEDANCE 50ohm; VSWR 1.5
POLARISATION Vertical; WATERPROOF IP65; GAIN 12DBI
CONNECTOR SMA inner pin; INPUT POWER 10W MAX
ANTENNA HEIGHT 32 cm; CABLE LENGTH ~3m; COLOR Black; OPERATING TEMP. -40 ~ +85
