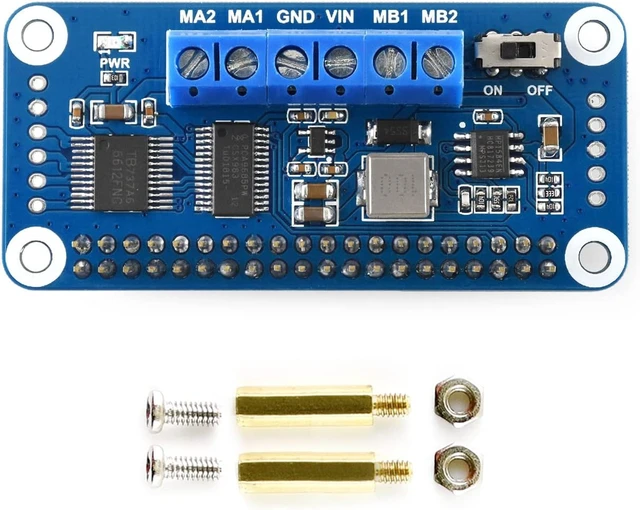

Waveshare Motor Driver HAT for Raspberry Pi Controlled via I2C Interface
- I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules. Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules. Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Reserved I2C control pins, allows to work with other control boards. Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules. Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed
Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
Reserved I2C control pins, allows to work with other control boards. Comes with development resources and manual (examples in BCM2835, wiringPi, and python)
