Waveshare AD/DA Expansion Allows You to Add High-Precision AD/DA Functions Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH and Jetson Nano

Be the first to review this product...

Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

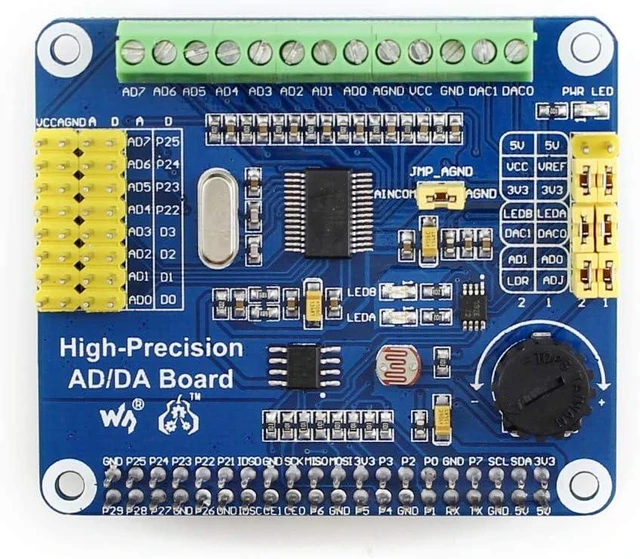

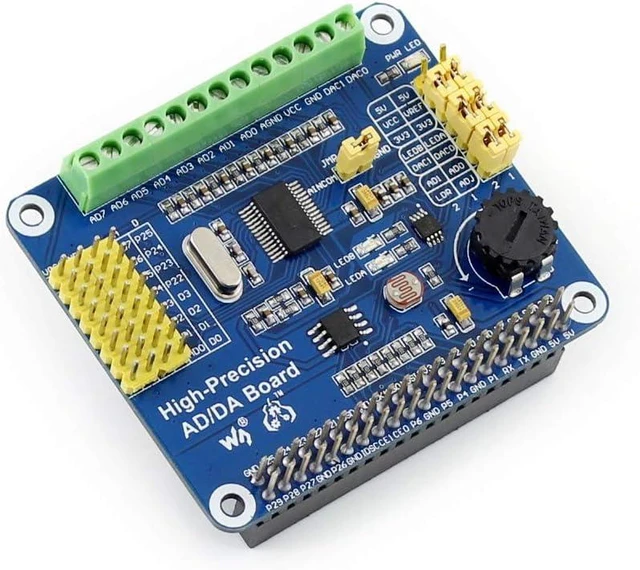

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
Onboard ADS1256, 8ch 24bit high-precision ADC (4ch differential input), 30ksps sampling rate
Onboard DAC8552, 2ch 16bit high-precision DAC

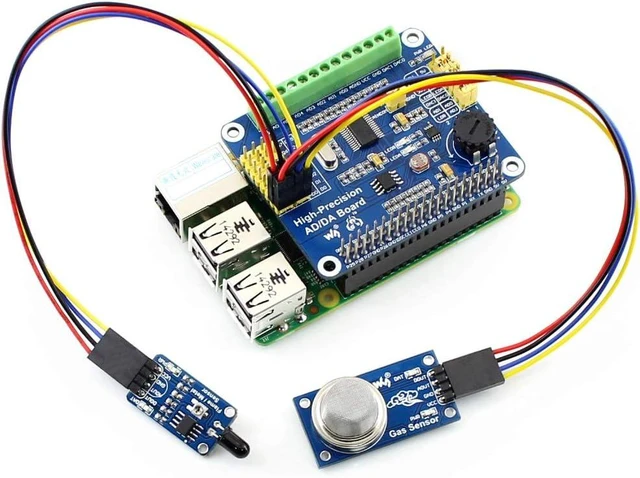

Onboard input interface via pinheaders, for connecting analog signal, the pinout is compatible with Waveshare sensor interface standard, easy to connect various analog sensor modules
Onboard input/output interface via screw terminals, for connecting analog/digital signal. Features AD/DA detect circuit, easy for signal demonstration
