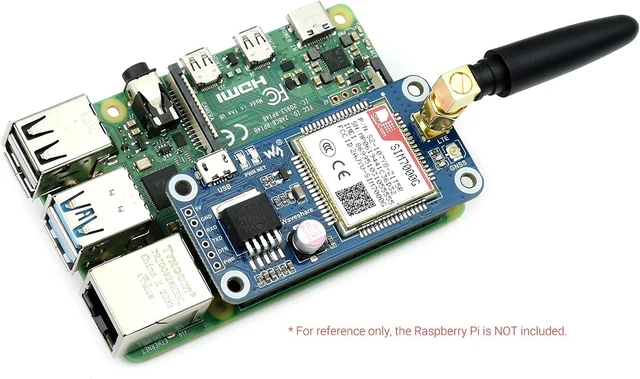

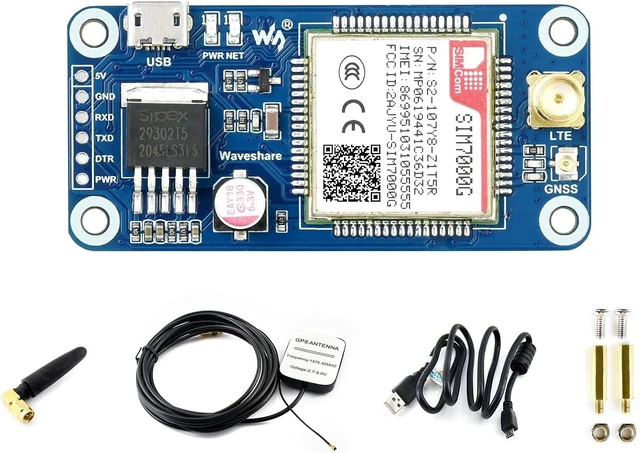

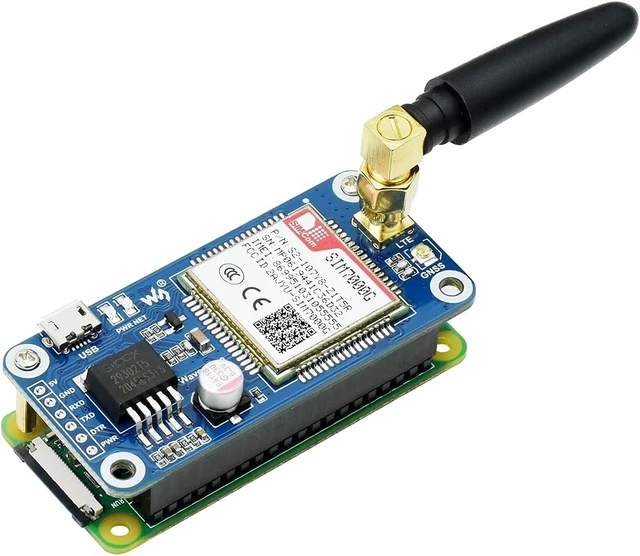

Waveshare SIM7000G NB-IoT/Cat-M/Edge/GPRS HAT, Compatible with Raspberry Pi 5/4B/3B/Zero/Zero W/Zero 2W/Pico/Pico W/Pico WH, GNSS Positioning, Global Band Support
- Supports GNSS positioning (GPS, BeiDou, GLONASS). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like Arduino/STM32
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

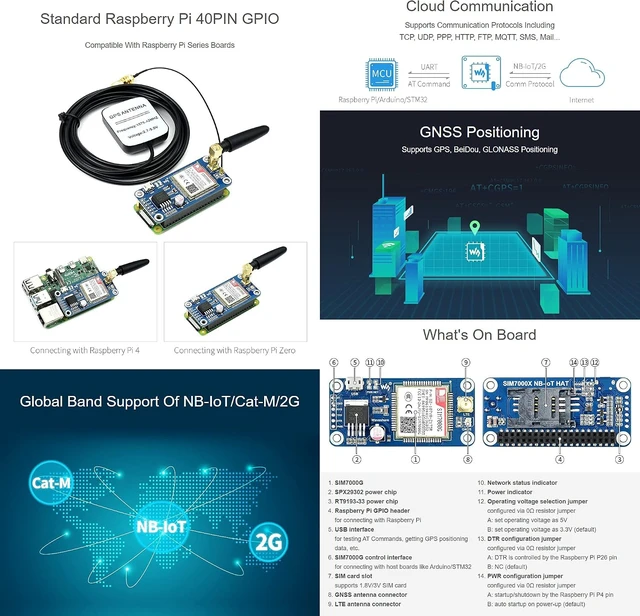

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.

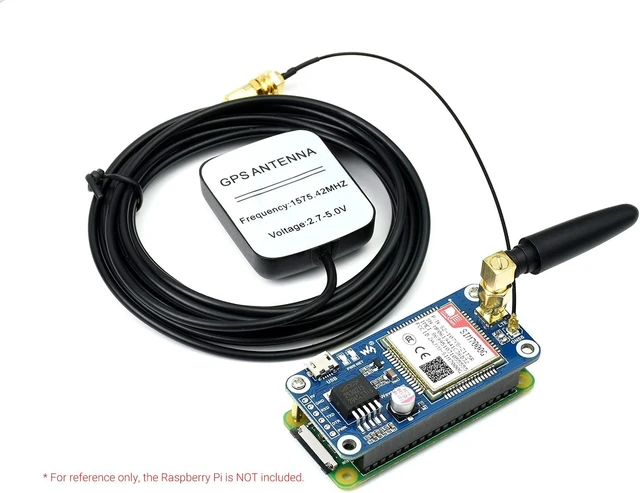

Supports GNSS positioning (GPS, BeiDou, GLONASS). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like Arduino/STM32
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor. SIM card slot, compatible with both normal SIM card and NB-IoT specific card
2x LED indicators, easy to monitor the working status.Baudrate: 300bps~3686400bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Supports GNSS positioning (GPS, BeiDou, GLONASS). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on. Breakout UART control pins, to connect with host boards like Arduino/STM32
Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0 resistor. SIM card slot, compatible with both normal SIM card and NB-IoT specific card
2x LED indicators, easy to monitor the working status.Baudrate: 300bps~3686400bps (115200bps by default). Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
