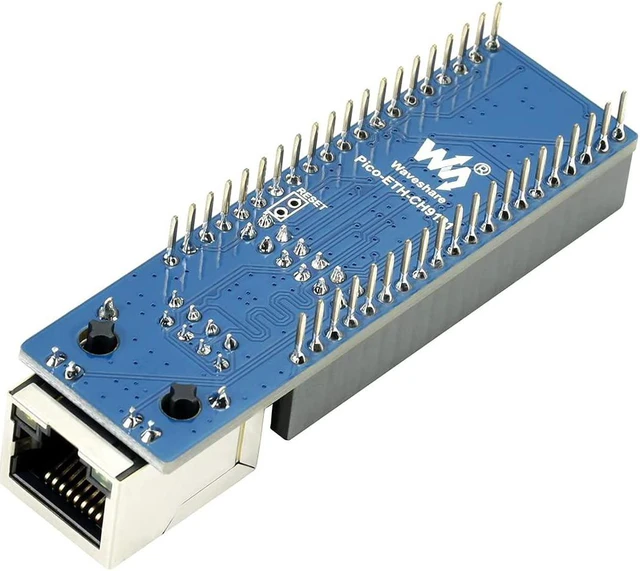

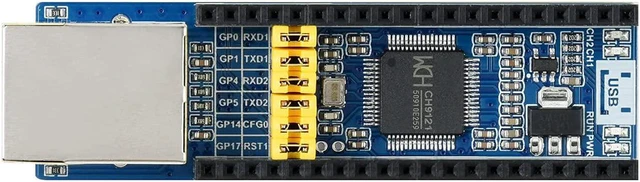

Waveshare Ethernet to UART Converter for Raspberry Pi Pico 10/100M Ethernet Enabling Network Communication Through UART Supports 2-CH Ethernet to UART Data Transparent Transmission
- Onboard jumpers for pin configurations. Embedded Ethernet MAC and PHY layers. Bi-direction transparent data transmission between UART and Ethernet
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

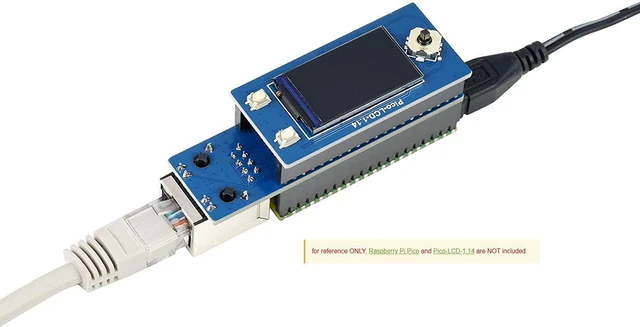

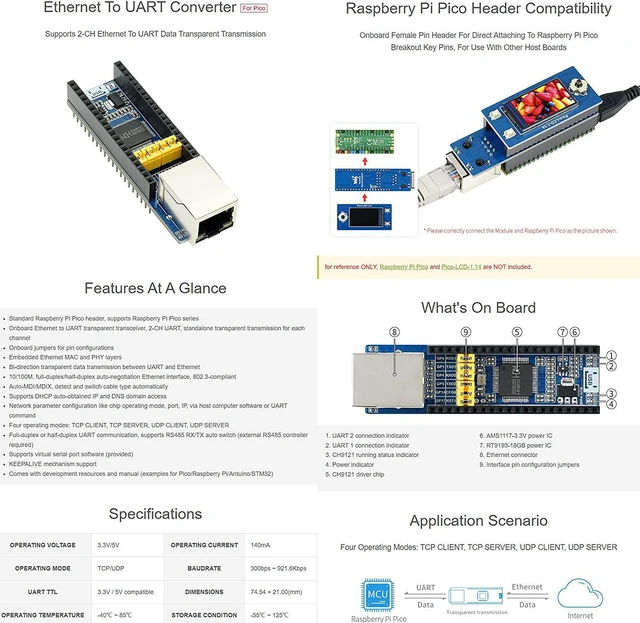

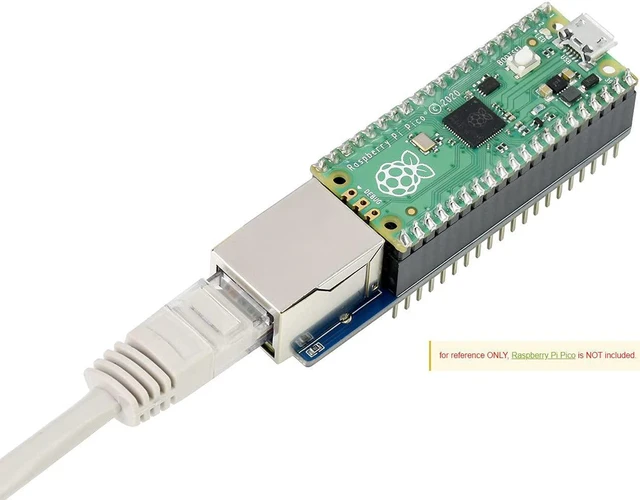

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series. Onboard Ethernet to UART transparent transceiver, 2-CH UART, standalone transparent transmission for each channel

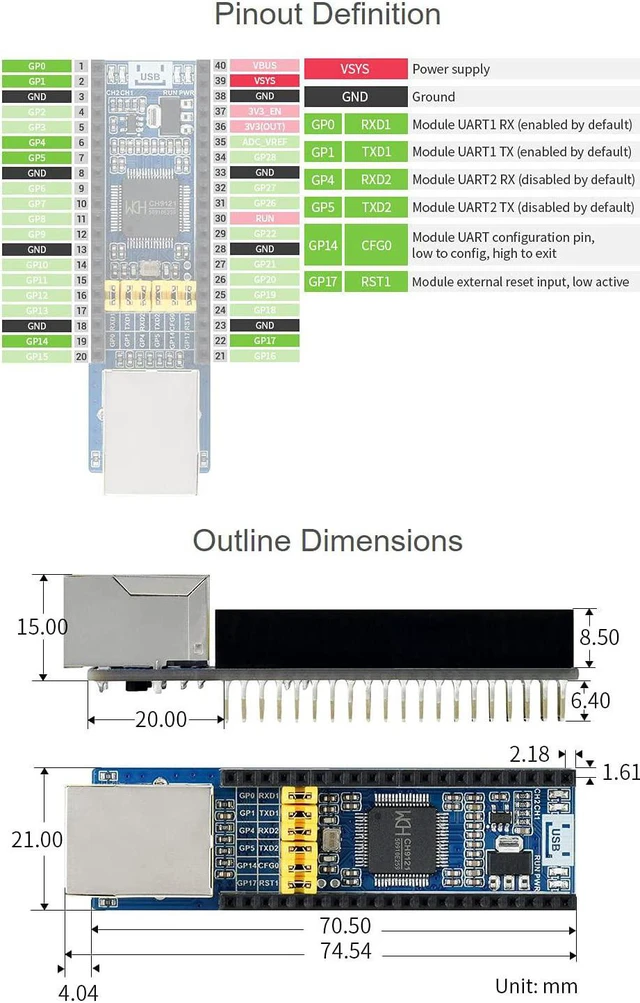

Onboard jumpers for pin configurations. Embedded Ethernet MAC and PHY layers. Bi-direction transparent data transmission between UART and Ethernet
10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant. Auto-MDI/MDIX, detect and switch cable type automatically. Supports DHCP auto-obtained IP and DNS domain access
Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command. Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER. KEEPALIVE mechanism support
Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (external RS485 controller required). Supports virtual serial port software (provided). Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)
Onboard jumpers for pin configurations. Embedded Ethernet MAC and PHY layers. Bi-direction transparent data transmission between UART and Ethernet
10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant. Auto-MDI/MDIX, detect and switch cable type automatically. Supports DHCP auto-obtained IP and DNS domain access
Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command. Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER. KEEPALIVE mechanism support
Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch (external RS485 controller required). Supports virtual serial port software (provided). Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)
