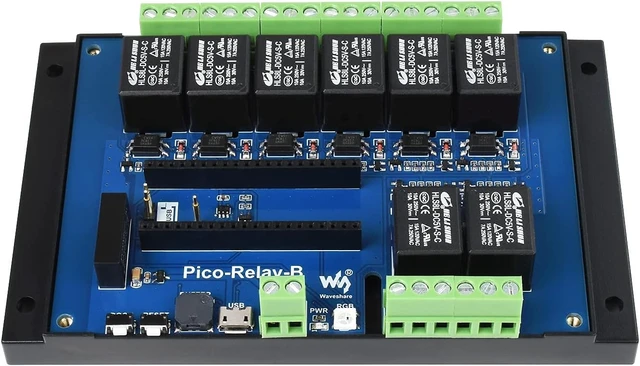

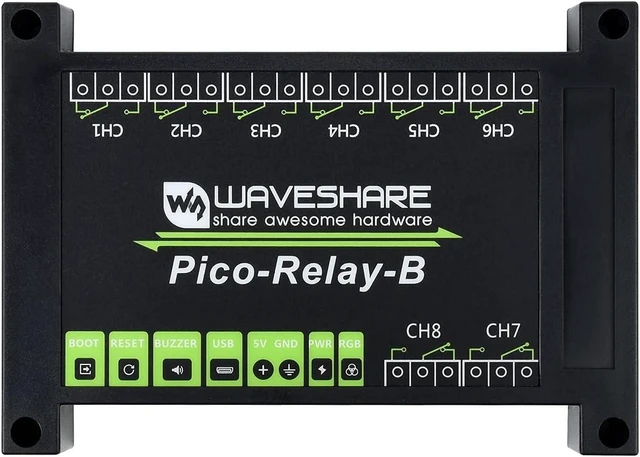

Waveshare Industrial 8-Channel Relay Module for Raspberry Pi Pico Power Supply Isolation Photocoupler Isolation
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

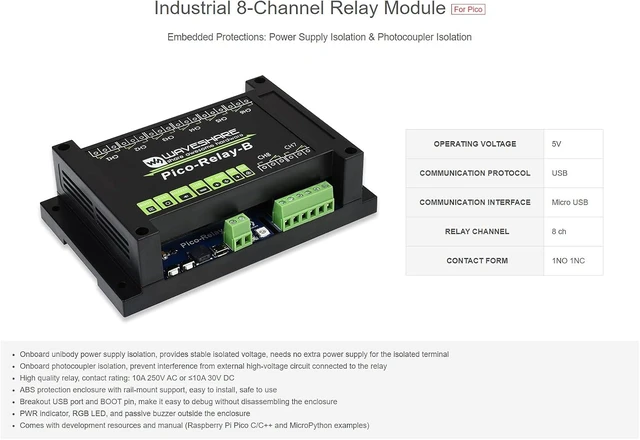

Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay

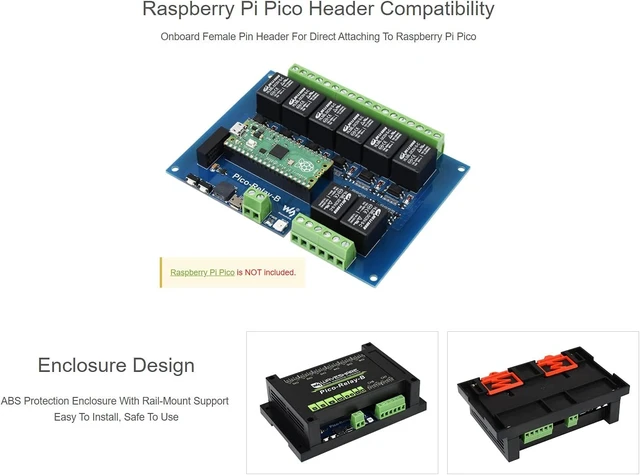

High quality relay, contact rating: 10A 250V AC or 10A 30V DC. ABS protection enclosure with rail-mount support, easy to install, safe to use
Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure. PWR indicator, RGB LED, and passive buzzer outside the enclosure
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
High quality relay, contact rating: 10A 250V AC or 10A 30V DC. ABS protection enclosure with rail-mount support, easy to install, safe to use
Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure. PWR indicator, RGB LED, and passive buzzer outside the enclosure
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
