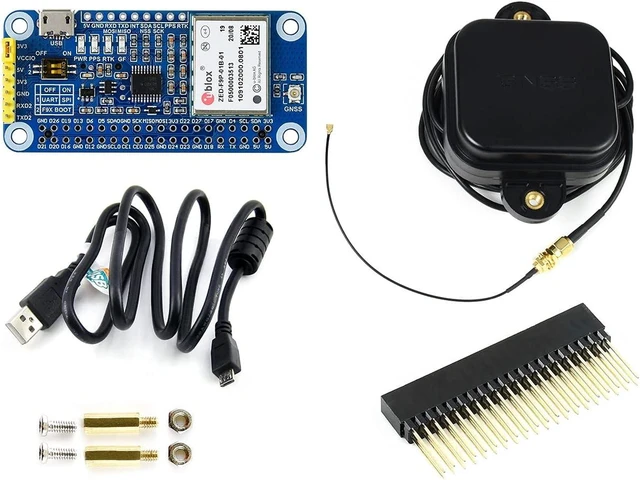

Waveshare ZED-F9P GPS-RTK HAT for Raspberry Pi Centimeter Level Accuracy Multi-Band RTK Differential GPS Module
- Supports Moving base RTK mode, enabling terminal precise navigation and centimeter level accuracy. Supports concurrent receiving 4 GNSS constellations (GPS, BeiDou, Galileo and GLONASS), and still retains low power consumption
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

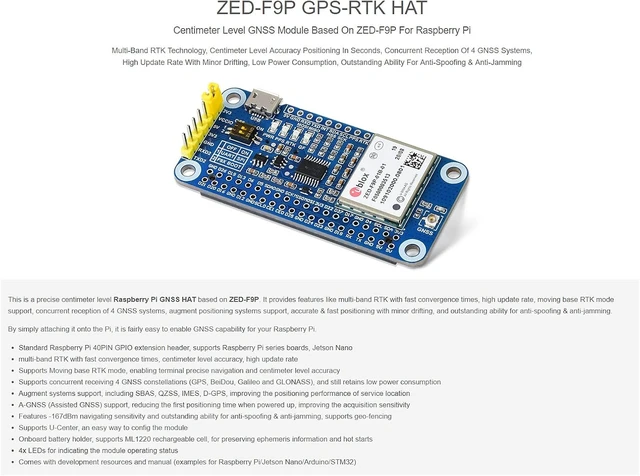

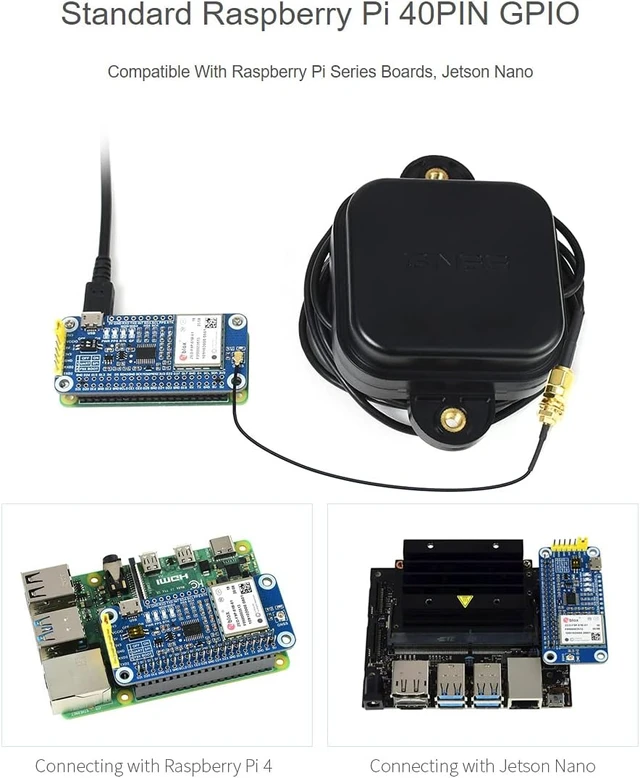

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano. Multi-band RTK with fast convergence times, centimeter level accuracy, high update rate

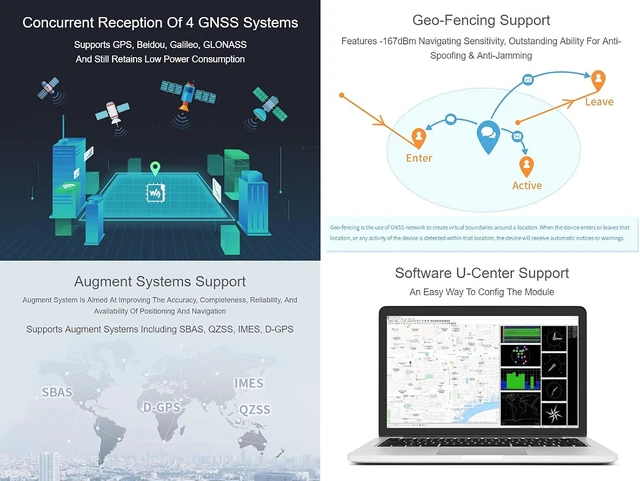

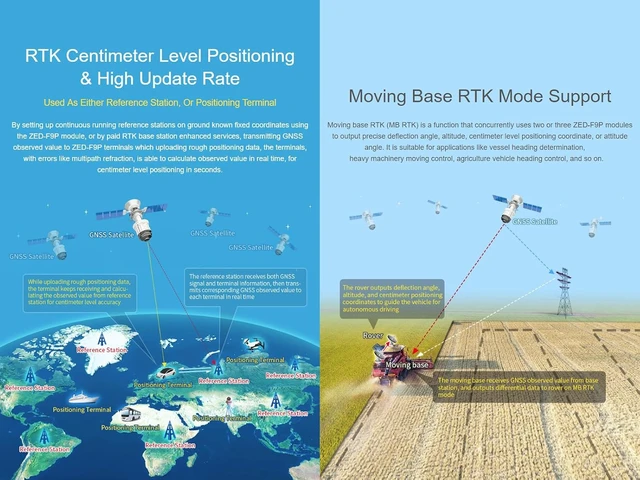

Supports Moving base RTK mode, enabling terminal precise navigation and centimeter level accuracy. Supports concurrent receiving 4 GNSS constellations (GPS, BeiDou, Galileo and GLONASS), and still retains low power consumption
Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location. A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing. Supports U-Center, an easy way to config the module

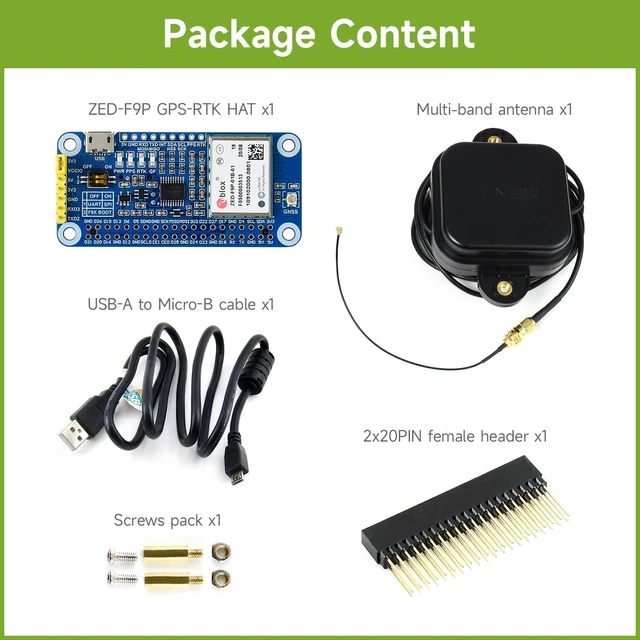

Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts. 4x LEDs for indicating the module operating status. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Supports Moving base RTK mode, enabling terminal precise navigation and centimeter level accuracy. Supports concurrent receiving 4 GNSS constellations (GPS, BeiDou, Galileo and GLONASS), and still retains low power consumption
Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location. A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing. Supports U-Center, an easy way to config the module
Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts. 4x LEDs for indicating the module operating status. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
