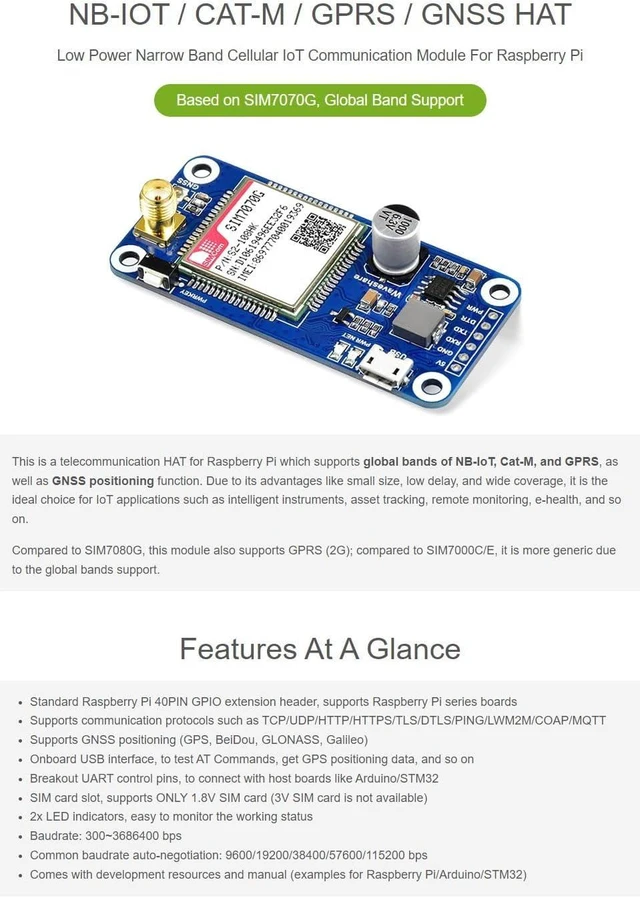

waveshare SIM7070G NB-IoT/Cat-M/GPRS HAT for Raspberry Pi with GNSS Positioning Support Global Band
- Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

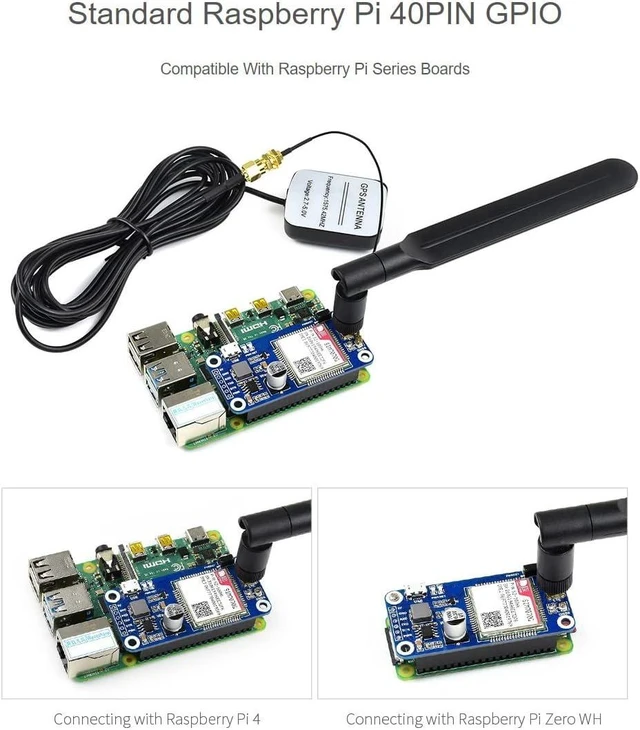

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

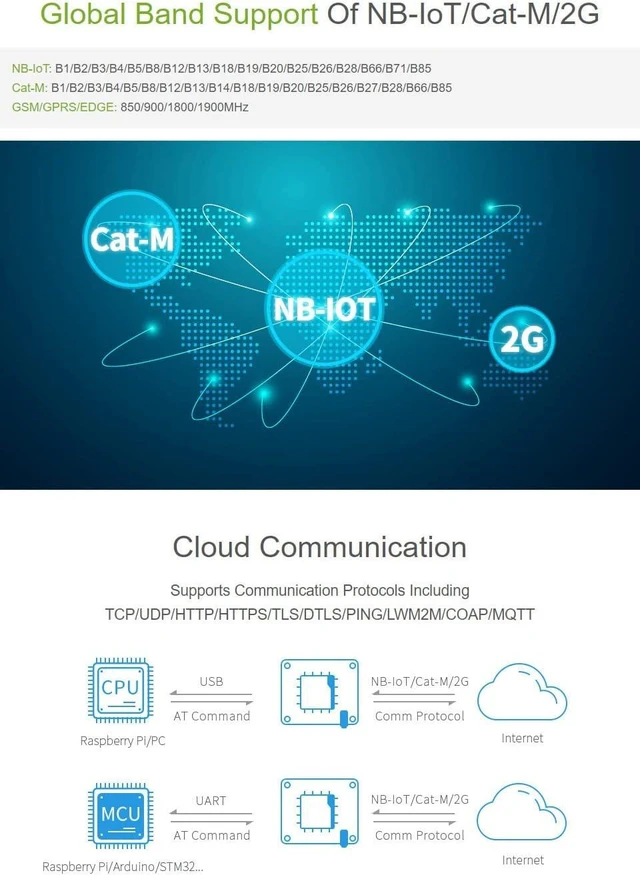

Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Breakout UART control pins, to connect with host boards like STM32. SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
2x LED indicators, easy to monitor the working status. Baudrate: 300~3686400 bps. Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo). Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
Breakout UART control pins, to connect with host boards like STM32. SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
2x LED indicators, easy to monitor the working status. Baudrate: 300~3686400 bps. Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
