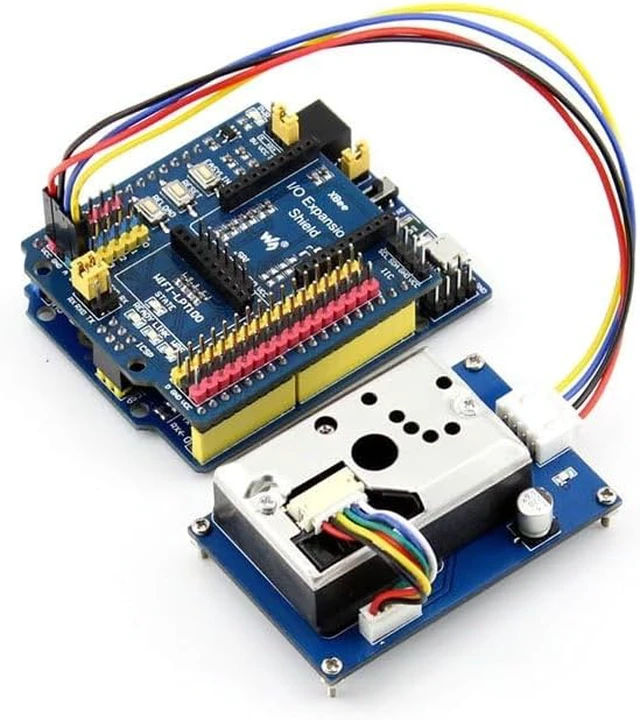

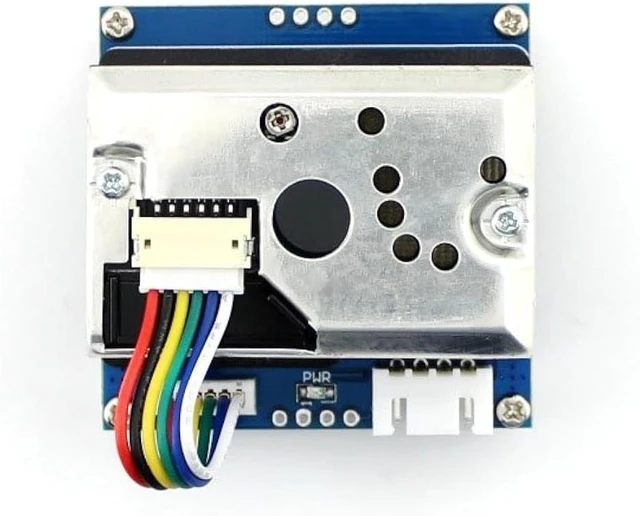

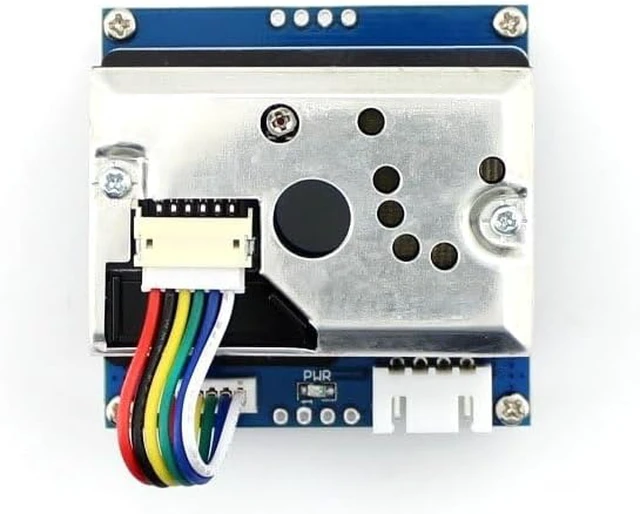

Waveshare Dust Sensor Detector Module with Sharp GP2Y1010AU0F Onboard for Measuring PM2.5
- Low power consumption, analog voltage output, the output level is linear with dust density
+
+

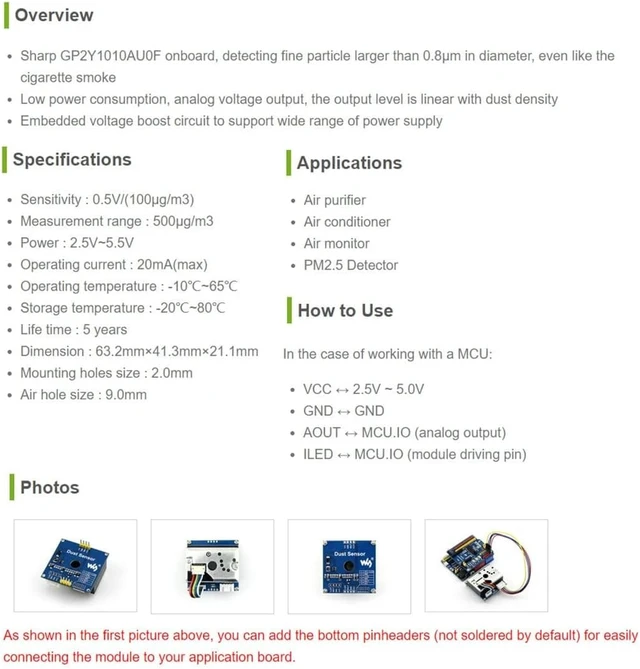

Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Sharp GP2Y1010AU0F onboard, detecting fine particle larger than 0.8m in diameter, even like the cigarette smoke
Low power consumption, analog voltage output, the output level is linear with dust density
Embedded voltage boost circuit to support wide range of power supply
Sensitivity : 0.5V/(100g/m3) Measurement range : 500g/m3 Power : 2.5V~5.5V Operating current : 20mA(max) Operating temperature : -10~65
Low power consumption, analog voltage output, the output level is linear with dust density
Embedded voltage boost circuit to support wide range of power supply
Sensitivity : 0.5V/(100g/m3) Measurement range : 500g/m3 Power : 2.5V~5.5V Operating current : 20mA(max) Operating temperature : -10~65
