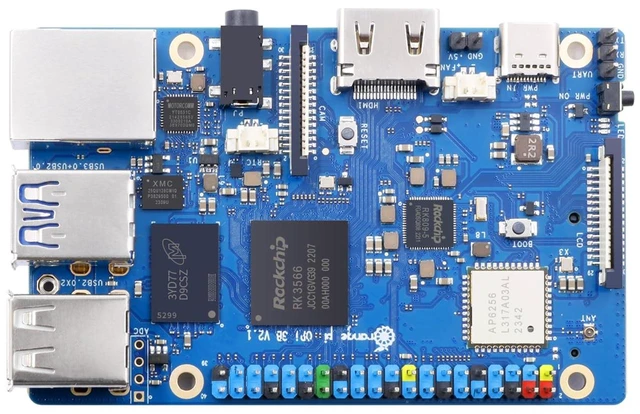

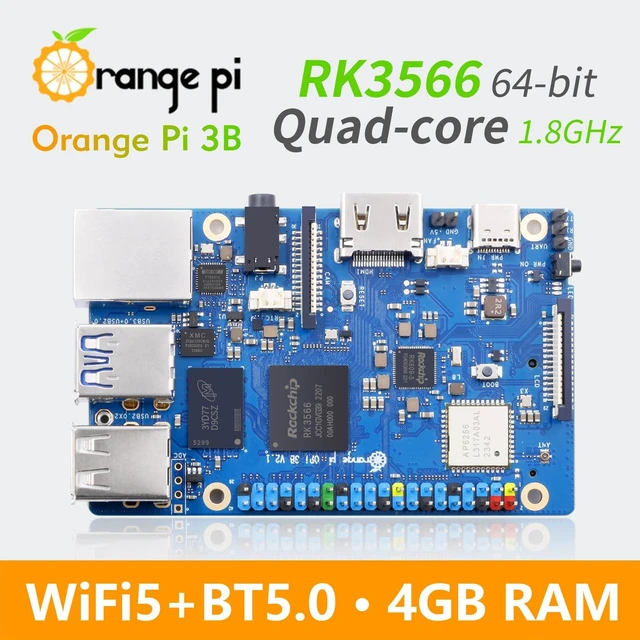

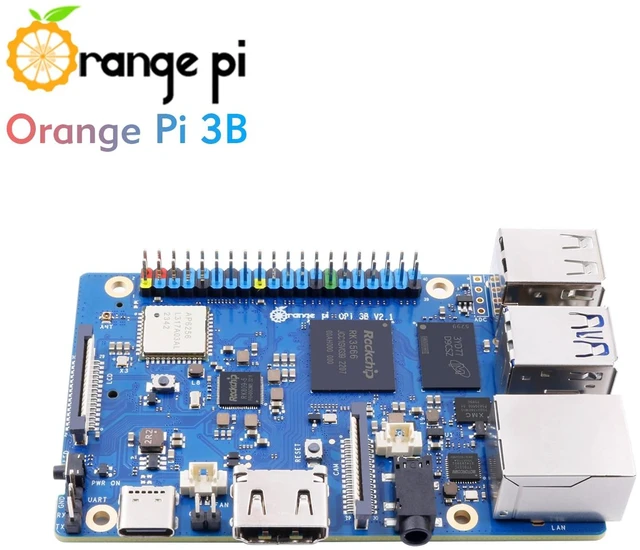

Orange Pi 3B 4G V2.1 Version RK3566 Quad Core 64 Bit Single Board Computer, 1.8 GHz Frequency WiFi Bluetooth Open Source Board Run Orange Pi OS, Android, Debian, Ubuntu, OpenHarmony (Pi 3B 4GB)
- [High Performance] - Orange Pi 3B is powered by Rockchip RK3566 quad-core 64-bit processor with 22nm advanced process, up to 1.8GHz main frequency, integrated ARM Mali G52 2EE graphics processor with OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 support, embedded high-performance 2D acceleration module.
- [4k Video Codes Support] - Orange pi 3B 4G Microcontroller built-in AI accelerator NPU with 0.8Tops computing power; VPU can achieve 4K@60fps H.265/H. 264/VP9 video decoding and 1080P@100fps H.265 video encoding, 1080P@60fps H.264 video encoding, support 8M ISP and HDR.
- [4GB RAM] - This single board computer with 4GB (LPDDR4/ 4X), supports 32GB/64GB/256GB eMMC module, 16MB/32MB SPI Flash, has Wi-Fi5, BT5.0, with BLE support.

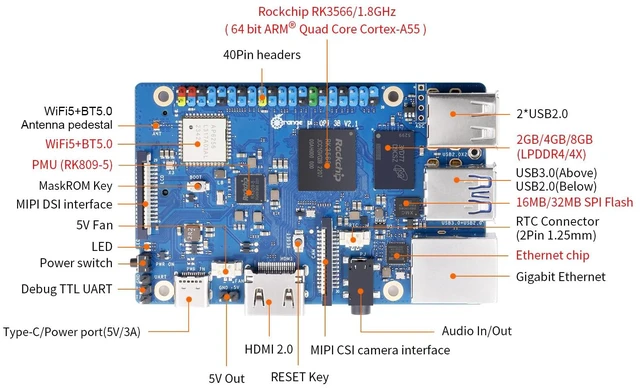

- [Rich Extensibility] - Orange Pi 3B 4GB Mini PC Computer references a wealth of interfaces, including HDMI output, M.2 M-KEY, TF card slot, Gigabit LAN port, USB2.0, USB3.0, 3.5mm headphone jack, MIPI DSI port, eDP port, MIPI CSI camera port, multifunctional 40 Pin expansion port, etc., which can be widely applied to TV boxes, high-end tablet, edge computing, face recognition, smart security, smart home and other fields, empowering rich AI applications and IoT scenarios.
- [Run Multiple Systems] - Orange Pi 3B supports Android 11, Ubuntu 22.04, Ubuntu 20.04, Debian 11, Debian 12, OpenHarmony 4.0 Beta1, Orange Pi OS (Arch), Orange Pi OS (OH) based on OpenHarmony and other operating systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

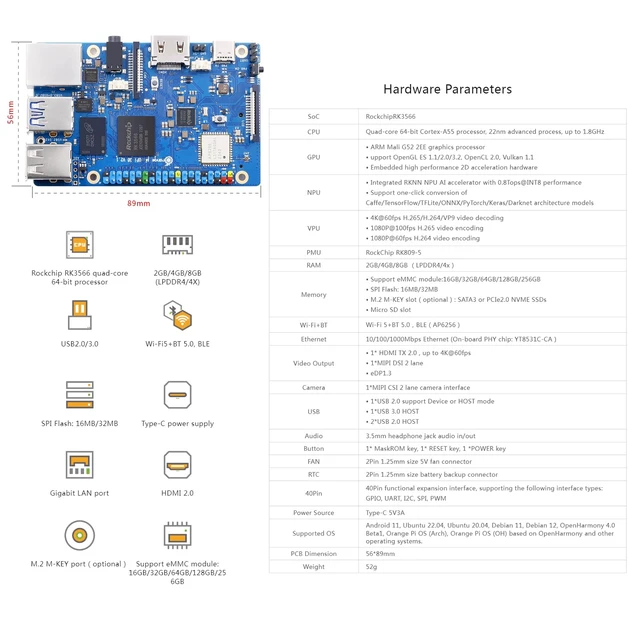

Main control chip: Rockchip RK3566
CPU: quad-core 64-bit Cortex-A55 processor, 22nm advanced technology, the main frequency is up to 1.8GHz
GPU: ARM Mali G52 2EE graphics processor
Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Built-in high performance 2D acceleration hardware
NPU: Integrated RKNN NPU AI accelerator, 0.8Tops@INT8 performance
support Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet architecture model is a key transformation
VPU: 4K@60fps H.265/H. 264/VP9 Video decoding
1080P@100fps H.265 video encoding
1080P@60fps H.264 video encoding
PMU: Rockchip RK809-5
Memory: 2GB/4GB/8GB (LPDDR4/4x)
Storage: Support for eMMC modules :16GB/32GB/64GB/128GB
SPI Flash: 16MB/32MB

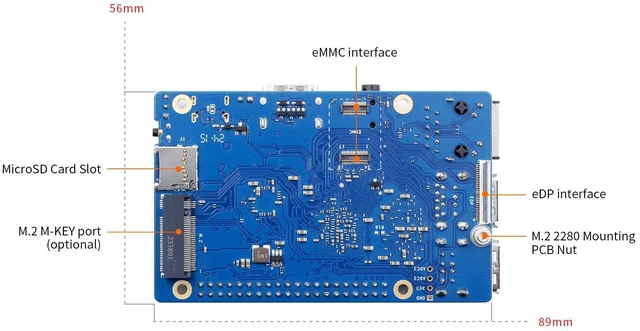

M.2 M-KEY slot: SATA3 or PCIe2.0 NVME SSD
TF card slot
Wi-Fi+ Bluetooth: Wi-Fi 5+BT 5.0, BLE (20U5622)
Ethernet Transceiver: 10/100/1000Mbps Ethernet (on-board PHY chip: YT8531C)
Display: 1xHDMI TX 2.0, maximum support 4K@60FPS
1xMIPI DSI 2 Lane
eDP1.3
Camera: 1xMIPI CSI 2 Lane Camera port
USB 1xUSB 2.0 supports Device or HOST mode
1xUSB 3.0 HOST
2xUSB 2.0 HOST
Audio: 3.5mm headphone jack Audio input/output
Key: 1xMaskROM key, 1xRESET key, 1xPOWER key
FAN: 2Pin 1.25mm 5V fan port
RTC: 2-pin 1.25mm backup battery port

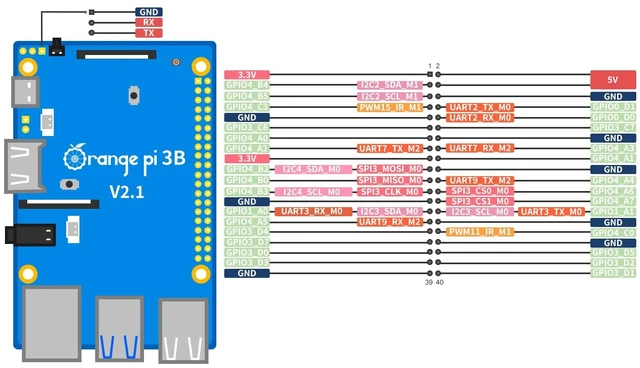

40Pin: The 40Pin function extension interface supports the following interface types: GPIO, UART, I2C, SPI, PWM
Power supply: Type-C 5V3A
Supported operating systems: Android11, Ubuntu22.04, Ubuntu20.04, Debian11, Debian12, open source Hongmon 4.0Beta1, Orange Pi OS (Arch), open source Hongmon based Orange Pi OS (OH) and other operating systems.
