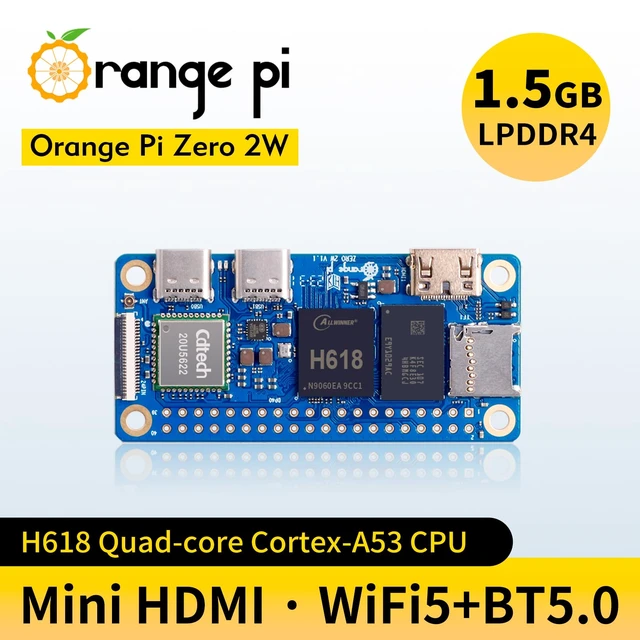

Orange Pi Zero 2W 1GB/1.5GB/2GB/4GB LPDDR4 Allwinner H618 Quad-core Single Board Computer with 16MB SPI Flash, Support WiFi and BT5.0, Development Board Run Android 12 TV/Debian/Ubuntu (GB, 4)

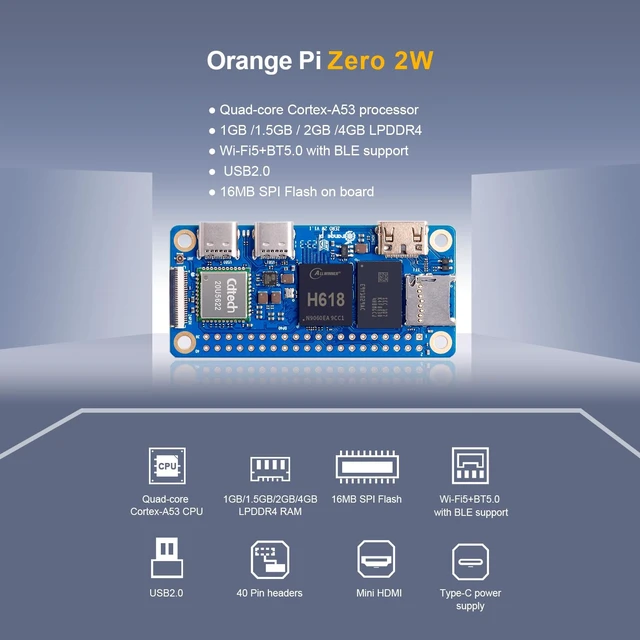

- [Incredibly Powerful]: Orange Pi Zero 2W is a powered by Allwinner H618 quad-core Arm Cortex-A53 SBC with 1GB/1.5GB/2GB/4GB LPDDR4 RAM memory, embedding a larger 16MB SPI flash. And features Wi-Fi 5 and Bluetooth 5.0 connectivity.
- [Practical Design]: Despite Orange Pi Zero 2W has only a small size of 30mmX65mmX1.2mm, but it is equipped with 2*USB 2.0, 1Micro HDMI, 1*MicroSD card slot, 1*24 pin functional interface, 1*40 pin headers.
- [Support Expansion Board]: Orange Pi Zero 2W can be extended with USB2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button via 24 pin functional interface with adapter board. In addition, the 40 pin expansion port on the board further enriches the motherboard's functional interfaces and enhances the development potential.
- [Small But Powerful]Orange Pi Zero 2W adheres to the compact and exquisite design concept of the Zero series, and can be widely used in TV boxes, smart screen casting devices, smart home, smart gateway, IoT and other fields. Orange Pi Zero 2W supports Android 12 TV, Debian11, Debian12, Ubuntu22.04, Ubuntu20.04 Orange Pi OSArchand other operating systems.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Hardware Parameters
CPU: Allwinner H618 Quad-Core Cortex-A53 Processor 1.5GHz
GPU: Mali G31 MP2- Support OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1
RAM: LPDDR4:1GB/1.5GB/2GB/4GB (optional)
Memory: SPI Flash: 16MB

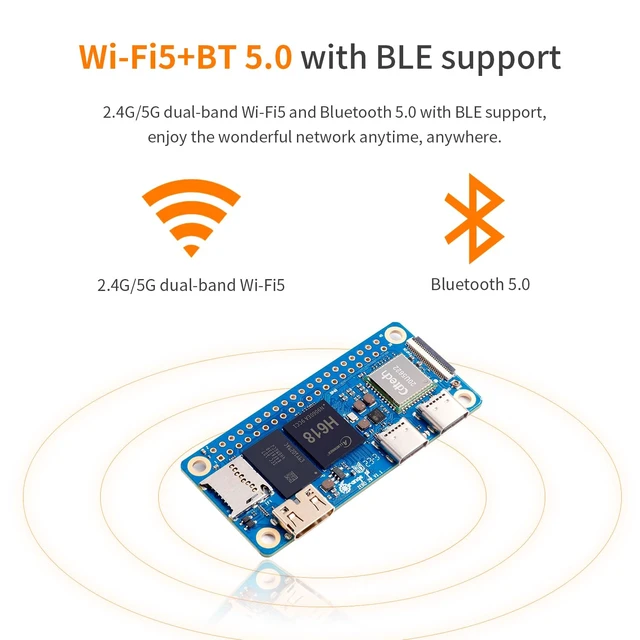

Wi-Fi + BT: Wi-Fi5.0+BT 5.0
Video output: 1*Mini HDMI TX 2.0 port supporting 4K@60FPS
USB: Type-C USB2.02
SD card interface: 1*Micro SD card interface
Expansion interface: 24Pin expansion interface: USB2.0*2, 100M Ethernet interface, IR receiver interface, audio output, TV-out, power button, user-defined buttons*2

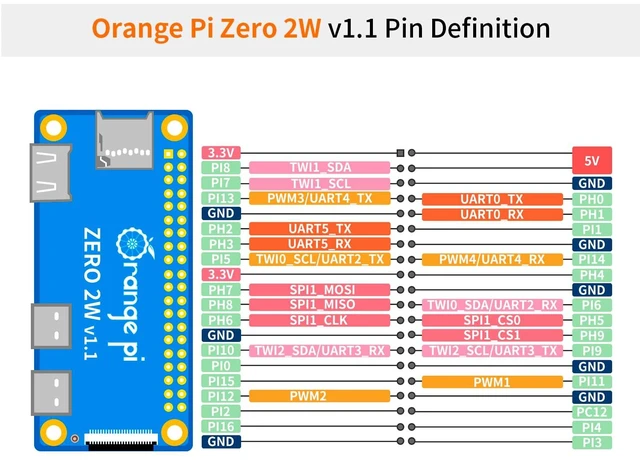

40Pin: 40Pin function expansion interface, supporting the following interface types:GPIOUARTI2CSPIPWM
Power Source: Type-C 5V2A
Supported OS: Android 12 TVDebian11Debian12Ubuntu22.04Ubuntu20.04Orange Pi OSArch

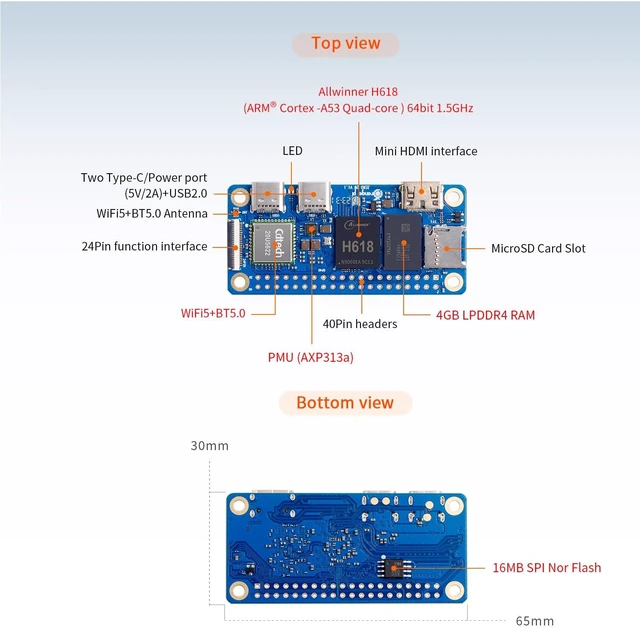

PCB Dimension: 30mm x 65mm x 1.2mm
Weight: 12.5g
