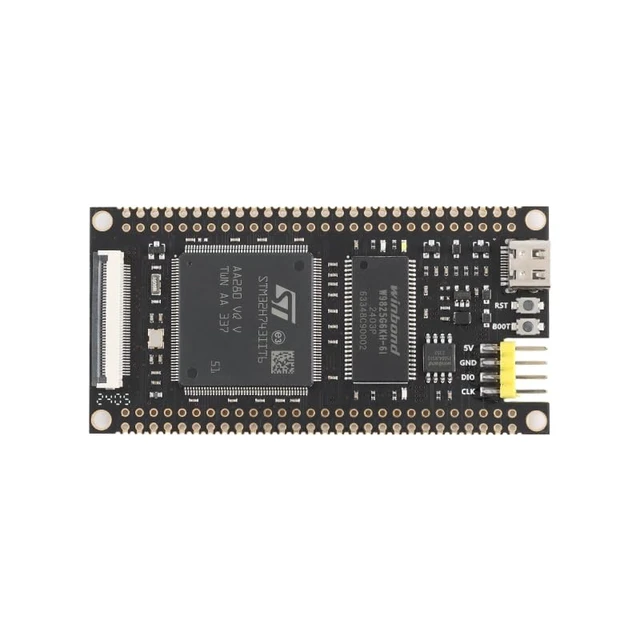

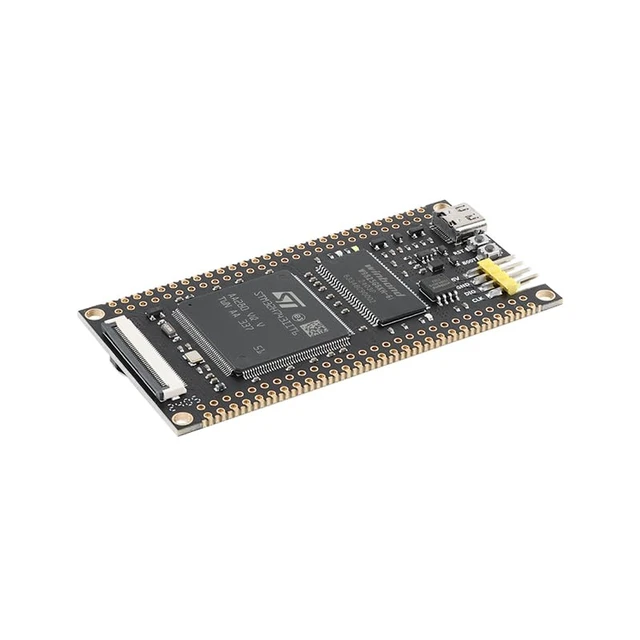

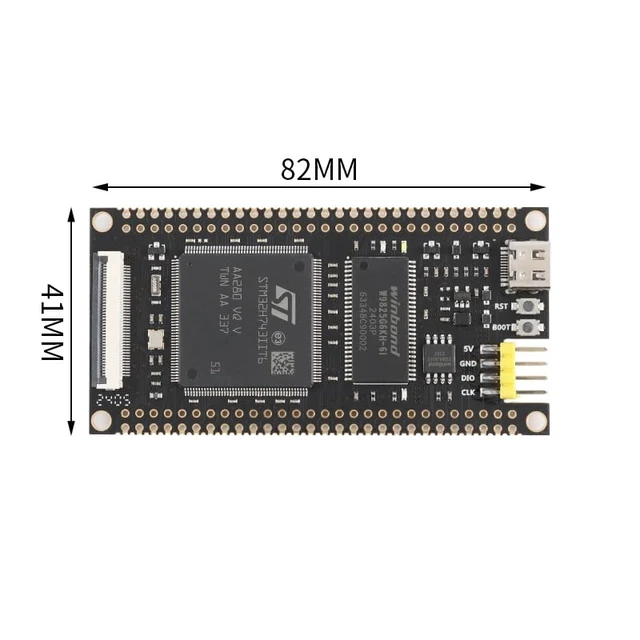

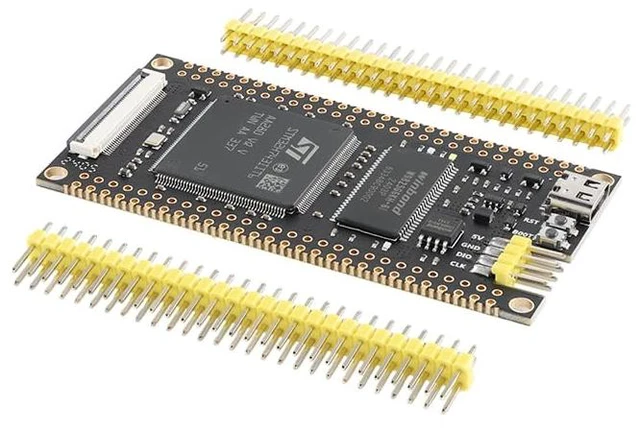

EC Buying STM32H743IIT6 Learning Board STM32 Development Board 2M Flash 1M SRAM STM32H743 Core Board System Board
- Experience high-speed processing with a 480MHz STM32H743 Core Board, offering 2M Flash and 1M SRAM for efficient development tasks
- Expand your storage capabilities effortlessly with QSPI driving W25Q64 and 16-bit wide 32MB SDRAM supported on this STM32 Development Board
- Seamlessly control your projects with a reset button, a BOOT button, a user LED, a Type C interface, and reserved SWD and serial ports
- Utilize 97 IO ports (some used by the core board) for versatile connectivity options on the STM32H743IIT6 Learning Board
- Operate in extreme conditions from -40°C to 85°C, making this System Board ideal for a wide range of applications
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Main frequency 480MHz
On chip 2M Flash, 1M SRAM
External expansion QSPI driver W25Q64
External expansion of 16 bit wide 32MB SDRAM
1 reset button
1 BOOT button
1 user LED
1 Type C interface
Reserve SWD and serial port

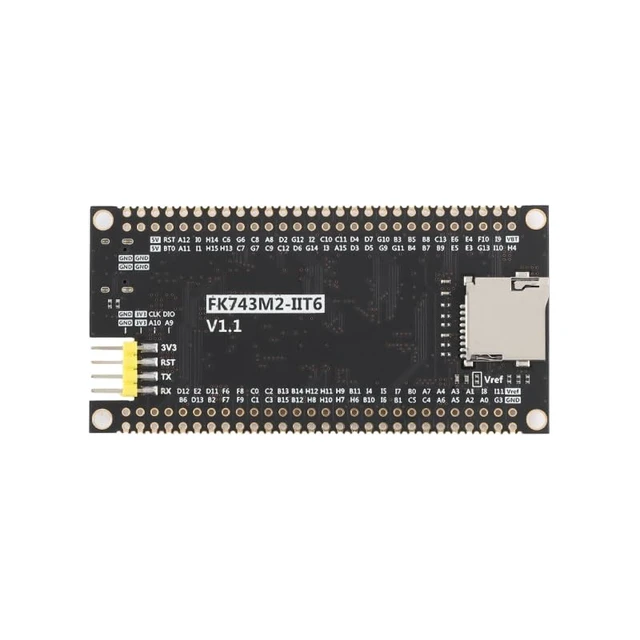

97 IO ports with pin arrangement and half hole lead out
(Some IO ports are occupied by the core board, such as LCD pins)
Working environment temperature -40~85 ° C
One click entry into ISP mode without pressing the reset button, making it easy to download programs using USB
Debug Interface
SWD and USART1
Type C interface
Support USB download program
STM32H743IIT6
V version chip, with a main frequency of 480M
SDRAM
16 bits wide, 32M bytes
LCD interface
RGB888 24 bit color
8M bytes W25Q64
Using QSPI driver to provide MDK download algorithm
