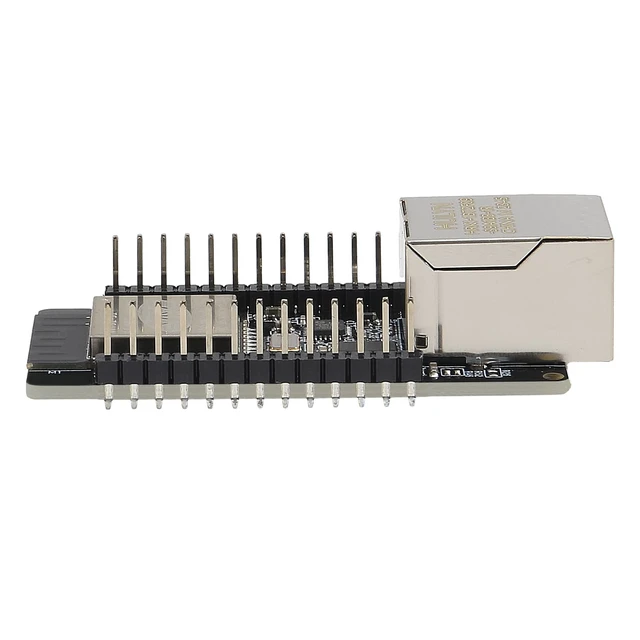

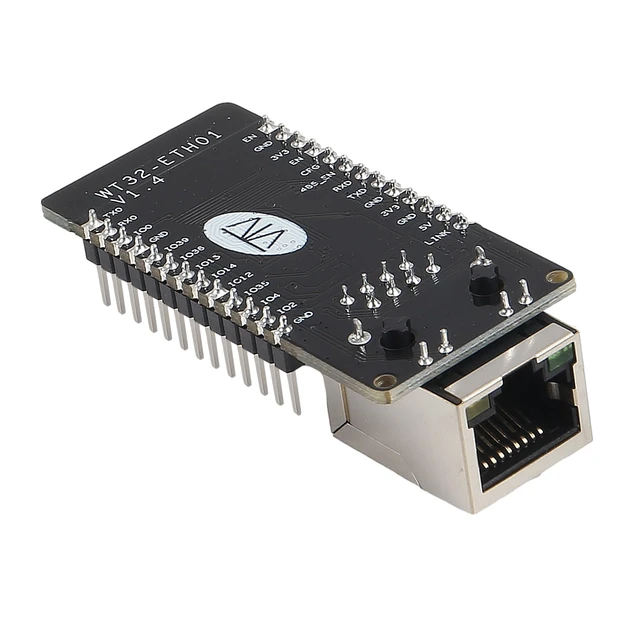

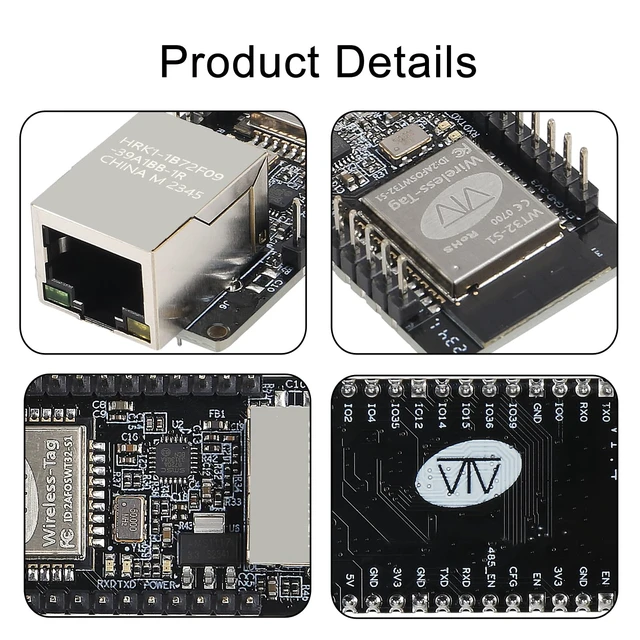

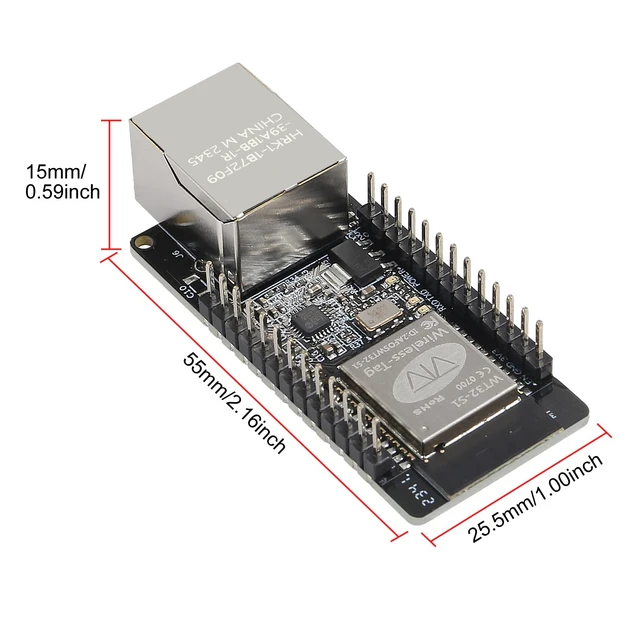

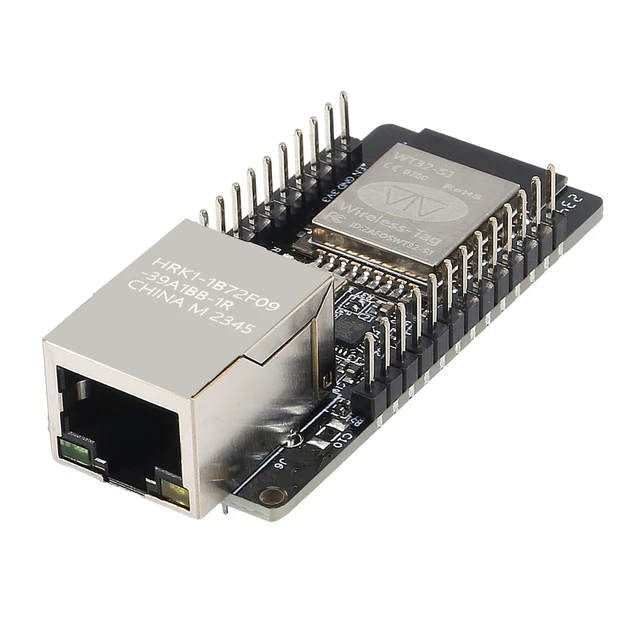

ACEIRMC WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board WT32-ETH01 Embedded Serial Port to Ethernet Converter Serial to WiFi Bluetooth MCU Module (5pcs)
- Support the four data ports of serial port, wif. Ethernet and Bluetooth-compatible-compatible to be combined in pairs, and the data is transparently transmitted.
- The ESP32 series of ICs are SOCs that integrate 2.4GHz Wi-Fi and Bluetooth dual-mode, with ultra-high radio frequency performance, stability, versatility, reliability, and ultra-low power consumption
- Support wifi to connect to the Internet or LAN through a router, establish a TCP/UDP connection, and access the user's designated server.
- WT32-ETH01 is small in size, industrial grade design, stable in performance, and can provide reliable and stable networking function. It meets the integrated project requirements of power monitoring
- Solderless pins WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board WT32-ETH01 Embedded Serial
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Main features of WT32-ETH01
1. Adopt dual-core Xtensa32-bit LX6 MCU. Integrated SPI flash 3.32Mbit\ SRAM 520KB
2. Support TCP Server, TCP Client, UDP Server, UDP Client working mode.
3. Support the four data ports of serial port, wif. Ethernet and Bluetooth-compatible-compatible to be combined in pairs, and the data is transparently transmitted.
4. Support to connect to the network through wired network or wifi to upgrade the firmware.
5. Support wifi to connect to the Internet or LAN through a router, establish a TCP/UDP connection, and access the user's designated server.
6. Support wired network access.
7. Support user secondary development.
8. Industrial grade operating temperature range: -40-+85.
9. Serial port baud rate: 80-5000000.
10. Network protocol: IPv4, TCP/UDP.
11. Software encryption: AES/RSA/ECC/SHA

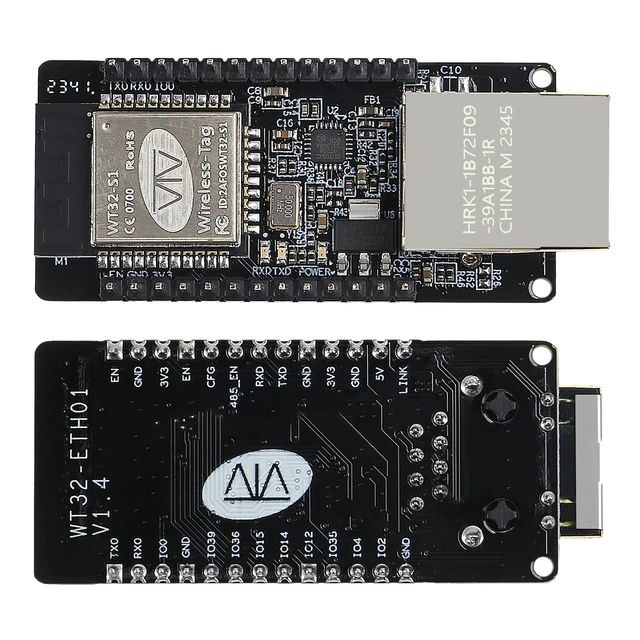

Pin Name Description
1- EN1 reserved debugging and programming interface; enabled, high level is effective
2- GND Reserved debugging and programming interface; GND
3- 3V3 reserved debugging and programming interface; 3V3
4- TXD reserved debugging programming interface; IO1, TXD0
5- RXD reserved debugging programming interface; IO3, RXD0
6- IO0 is reserved for debugging and programming interface; IO0
Package includes:

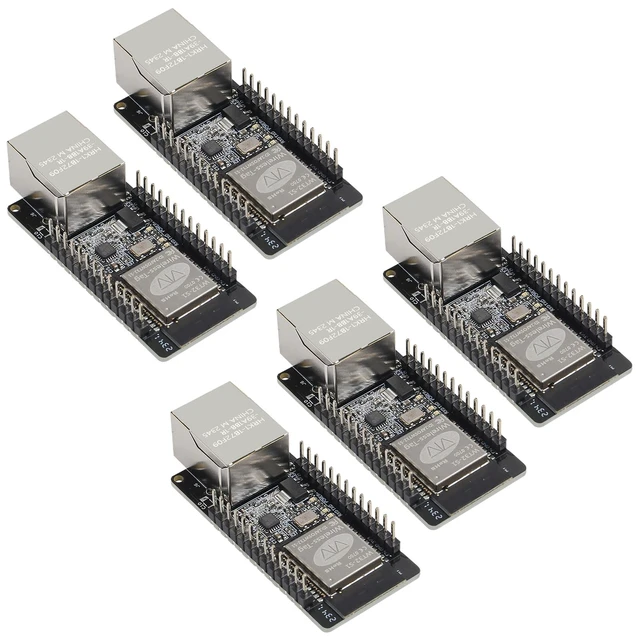

5 * WT32-ETH01 ESP32 Module
